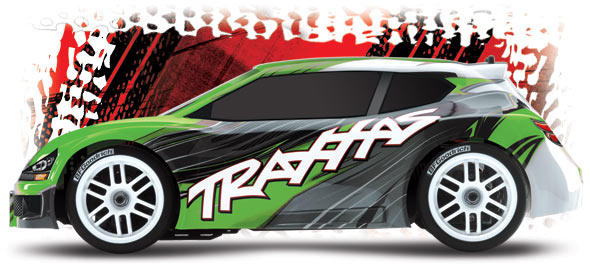

Traxxas 1/16 Scale Rally VXL Brushless Rally Racer - 7307

About Traxxas 1/16 Scale Rally VXL Brushless Rally Racer - 7307

Traxxas Rally VXL 1/16th Scale Brushless Rally Racer!  Experience Rally Driving Excitement, Gymkhana Style!



The throttle is wide open. All four tires howl as they slide across the asphalt. You finesse the input, work the steering wheel. Now you're perfectly balanced between slip and grip as you carve through the turn sideways, emerging from clouds of tire smoke to scream on to the next corner. This is asphalt rally racing gymkhana style, and the Traxxas Rally VXL is the only R/C vehicle designed to give you the experience of hanging it out in the turns and powering down the straights with the perfect blend of speed, power, and traction. The specially tuned suspension and tire compounds let you ride the slip angle with thrilling precision, putting your skills to the test as you master the art, right in your own driveway. The Velineon brushless power system combines with 4-wheel drive to give the Traxxas Rally VXL road-ripping muscle that rivals the full-scale racers. Officially licensed BFGoodrich rally tires deliver authentic style and performance, and the tough, wide-body design features cutting-edge graphics that could only come from Traxxas. Get ready for a new kind of R/C driving excitement with the Traxxas Rally VXL.

Revo Innovation, Tuned for the Street!

The Traxxas Rally VXL utilizes Revo's F-1 inspired, rocker-actuated suspension system which has been expertly engineered for 1/16 Gymkhana racing right down to the oil-filled, threaded-body GTR shocks and rally-tuned progressive-rate springs. The all-wheel drive system rides on full ball-bearings and delivers smooth efficient power through the Torque Control slipper clutch, planetary gear differentials, and Traxxas' proven telescoping u-joint drive shafts. The suspension and driveline are fully integrated into the compact chassis. Intricately molded as a single piece, the chassis balances strength, weight, function and style in an impressive achievement of packaging and performance optimization that could only come from Traxxas.


Race-Ready Speed

The Traxxas Rally VXL shreds the competition with class-leading speed and power. Right out of the box, the Rally thrills with 30+mph on the included 6-cell NiMH battery. Install an optional, second 6-cell battery to unleash the Velineon Brushless Power System's full fury, and the Rally jumps to over 50mph. That kind of blacktop-searing speed is usually reserved for expensive LiPo power, but the Rally reaches its full performance potential with affordable, proven-safe NiMH packs. It's never been so easy to go so fast!







Rally VXL includes the Traxxas TQ 2.4GHz High Output radio system with Traxxas Link. This new system offers the unbeatable convenience of "no channels, no crystals" 2.4Ghz technology, and the long-range security of a high-output signal but that's just the beginning. The new, patent-pending Traxxas Link technology stores settings for up to 20 Traxxas Link-enabled models, with no naming or "model memory" settings required. Just power up the transmitter and the model you want to drive, and the settings for that model are dialed in immediately! The new TQ 2.4GHz High Output radio is also fully adjustable; steering and throttle end points can be set precisely, and the Multi-Function knob can be programmed to control Steering Sensitivity (Expo), Throttle Sensitivity (Expo), Steering Percentage (Dual Rate), Braking Percentage (Dual Rate), or Throttle Trim.



Velineon Brushless Power

Built specifically for Traxxas 1/16 scale models, the VXL-3m speed control and Velineon 380 motor represent the latest in brushless technology. Fully LiPo compatible with low-voltage detection for 2S and 3S packs and rated for 6-12 NiMH cells, this potent, powerful combo gives the Rally precise throttle control and blistering top speed. Patent-pending Training Mode lets new drivers hone their skills at 50% throttle. This allows young or new drivers to safely develop their control skills before unleashing 50+mph speed with the touch of the EZ-Set button. Big speed requires big horsepower, so the Rally carries the largest motor in the "mini" category. The Velineon 380 features high-speed ball bearings, Sintered rotor, Neodymium magnets, and Gold plated 3.5mm connectors. It all adds up to 50,000 rpm of pure power and track-searing speed!





Waterproof Electronics For No-Limits R/C Excitement

Just like full-size rally racers, the Traxxas Rally doesn't slow down for rain; the waterproof servo and o-ring-sealed receiver box let you keep on racing, even in wet weather that parks lesser cars on the bench. The patent-pending sealed receiver box houses Traxxas' latest 2.4GHz Traxxas Link receiver and can accept aftermarket receivers as well, without compromising the model's waterproof properties. The new VXL-3m electronic speed control and high-torque digital micro servo are sealed against the elements to give you total driving freedom.





 100% Ready-To-Race

The Traxxas Rally VXL is fully assembled with TQ radio system, Velineon brushless power system, painted and decaled body, pre-glued tires, and detailed instructions. A Traxxas Power Cell NiMH battery and charger are also included, making the Rally truly Ready-To-Race. Designed specifically for the high-power needs of the Velineon brushless system, the potent Power Cell pack features heavy-duty construction, 16-gauge wires and Traxxas' exclusive High-Current Connector for efficient power transfer, run after run. Traxxas backs the Rally and all of our products with top-notch support that is second to none. A staff of skilled representatives is on-hand to answer your questions via phone, website, or e-mail. Unmatched parts support allows the Rally to be serviced with parts and support from thousands of hobby dealers worldwide. Your invesent is also protected by the Traxxas Lifetime Electronics Warranty. Traxxas goes the extra mile to ensure that your R/C experience is easy and fun (and fast!). Follow the details link above to go in depth on all the Rally performance benefits and also be sure to check out the videos page to see it in action for yourself.


QUICK FEATURES ON TRAXXAS RALLY VXL (#7307)

• Ground-breaking performance capabilities for a new kind of R/C fun and excitement!

• Officially licensed BFGoodrich rally tires

• TQ 2.4GHz Transmitter and Receiver with Traxxas Link

• Ready-To-Race with included 6-cell NiMH Power Cell battery and charger

• 30+mph with included NiMH battery, 50+mph with additional NiMH battery

• Revo suspension technology specially tuned for superior on-road handling and control.

• Full-time 4WD

• Velineon 380 brushless motorargest in class

• Waterproof electronics

• Torque-control slipper clutch

• Sealed differentials

• Realistic all-terrain tires with foam inserts

• Traxxas High-Current Connector

• Metric hex hardware

• Rubber-sealed ball bearings



MODEL 7307: Fully assembled, Ready-To-Race, with TQ 2.4GHz High Output radio system with Traxxas Link, Velineon 380 motor, VXL-3m ESC, 7.2 volt NiMH battery & charger, and ProGraphix painted body.

Details



Rally-Tuned, F1-Inspired Suspension

The Rally VXL's innovative linkage-based suspension geometry increases spring and damping rates in proportion to cornering forces for perfectly balanced handling. The design is competition-proven by the 8-time National Champion Revo, and is specially configured for on-road action with new stiffer springs and piston specs for firmer damping and roll-resistance. The laydown shocks also lower the Rally's center of gravity for lightning-quick turning response.



Oil-Filled GTR Shocks

Specially tuned for gymkhana rally style driving, the Rally's super-smooth oil-filled shocks maintain control through extreme maneuvers. Threaded spring collars allow quick and accurate pre-load adjusent, and the shock's spring and damping rates have been carefully chosen specifically for the Rally.




Officially Licensed BFGoodrich Rally Tires

The unique cross-hatch tread pattern that has carried so many rally racers to victory has been perfectly duplicated for the Traxxas Rally, complete with the distinctive BFGoodrich logo on the sidewall. For authentic rally oversteer, the tires are molded in a specially formulated compound that delivers the perfect blend of slip and grip to drift through turns and shred the straights. The tires are factory-glued to new split-spoke rims with 12mm hexes that give the Rally full compatibility with a wide array of aftermarket rim and tire combinations.



ProGraphix Painted Rally Body

Rally VXL's ProGraphix body features an aggressive, muscular design wrapped in Red, Blue, Black, and Silver themes that no custom-painter can match. Decals are applied to get you driving just minutes out of the box, and additional decals are supplied to further trick out your ride's look.



The Next Generation of Traxxas 2.4GHz Technology

Traxxas introduces the next generation of 2.4GHz radio system performance and it's available now with the Traxxas Rally VXL. The new Traxxas TQ 2.4GHz computerized High Output radio systems are equipped with superior Direct Sequence Spread-Spectrum (DSSS) technology, fully programmable features, and the convenience of patent-pending Traxxas Link automatic model recognition. Forget about crystals and frequency conflicts! The transmitter's easy-to-use design provides the instant, worry-free, turn-it-on-and-go driving fun you expect from Traxxas, while also delivering a full compliment of pro-level tuning features for those who wish to explore the expanded tuning possibilities. The Multi-Function knob on the face of the transmitter can be programmed to control a variety of functions such as steering exponential, steering and braking dual rate, and throttle trim. Access is through a simple menu tree controlled by a two-button interface. Other tuning options include end point adjusent, servo reversing, and sub trim adjusent. Top-level performance is what you expect from Traxxas, so the new TQ 2.4GHz High Output pumps out a strong, clear signal for optimum range. The 13ms frame rate and near zero latency results in instant steering and throttle response along with precise, smooth control.

The exclusive Traxxas Link automatic model recognition software is a breakthrough in "model memory" that makes it easier than ever to enjoy multiple Traxxas Link enabled models without juggling transmitters or scrolling through complex menus searching for model names. Each time the transmitter is bound to a new receiver, it saves that receiver in its memory, along with all the model settings assigned to that receiver. The next time that transmitter and any previously bound receiver (up to 20!) are switched on, the transmitter automatically recalls the settings for that receiver. Just power up the transmitter and the model you want to drive, and the settings for that model are dialed in immediately! Up to 20 Traxxas Link enabled receivers and 20 Traxxas TQ 2.4GHz High Output transmitters can be cross bound together making it possible to grab ANY transmitter and ANY vehicle from the group, switch them on, and start driving. It's perfect for when you have lots of vehicles you want to drive but don't want to have to keep up with which transmitter belongs to which model. Traxxas Link does it for you, seamlessly behind the scenes.

  5-channel Micro Receiver with Fail-Safe Security

The TQ 2.4GHz High Output's micro receiver fits easily into any vehicle, and features dual channel-1 outputs for easy installation in vehicles with dual steering servos no Y-harness necessary! The integrated LINK button makes it fast and easy to bind the receiver, and the two-color LED indicates power-on and bind status for fool-proof control and convenience. Traxxas Link allows the receiver to recognize up to twenty TQ 2.4Ghz Traxxas Link enabled transmitters just switch on and drive. In the event of signal loss due to an accidental switch-off or depleted batteries, the receiver will automatically return the throttle to neutral and hold the last commanded steering position. The Fail Safe programming is built-in and does not need to be set or activated.


Velineon VXL-3m ESC:

• Three Programmable
  Drive Profiles:
  • Sport Mode - Forward / Brake / Reverse
  • Race Mode - Forward / Brake
  • Training Mode - 50% Forward / Brake / 50% Reverse (patent pending)
• Integrated on/off switch
• EZ-Set one-button setup
• Large heat sink
• High-efficiency MOSFET transistors
• Built-in two-stage low-voltage detection for LiPo batteries.
• NiCad and NiMH battery packs: 6-12 cells (7.2 to 14.4 volts)
• LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)



Velineon 380 Brushless Motor:

Powerful 8-turn, 4000kv design

Optimized for smooth sensorless power

No motor brushes or commutator to wear out

Virtually maintenance free power that stays consistent, run after run

Precision balanced rotor

Ultra high-temperature sintered Neodymium motor magnets

Gold-plated 3.5mm bullet connectors



Traxxas High-Current Connectors

Adapters waste power! Connect-all systems pinch off power like a kinked garden hose. Get the most from your battery with a Traxxas High Current Connector. It actually has less resistance than an equal length of wire, so you get pure power transfer for maximum speed, punch, and runtime.



  Ball-Bearing Transmission With Torque Control Slipper Clutch

Rally VXL's high-efficiency, heavy-duty transmission is built for brushless power. An adjustable slipper clutch lets you tailor power delivery to suit the terrain and your driving style, and precision ball-bearings make certain every watt of Velineon power is turned into pure speed.



  Sealed Silicone-Filled Differentials

The Rally's sealed, silicone-filled differentials resist "unloading" for superior performance and authentic handling as the Traxxas Rally drifts perfectly controlled through the corners.


Pivot Ball Suspension

Rally VXL features pivot-ball suspension for smooth suspension articulation and easy adjusent. Rubber-sealed ball bearings ward off dirt and debris as they increase precision and reduce friction, and the oversized 8x12mm inboard bearings maximize durability. For extra security, the heavy-duty axle carriers are designed so the universal-joint axles' crosspins are captured by the inner bearings another example of Traxxas' attention to every detail.



Universal-Joint Driveshafts

Rally racing requires smooth, efficient power delivery as the car drifts through turns with sustained steering input. Chattering dogbones won't cut it! Rally VXL is fully equipped with telescoping universal-joint axles for optimum drivetrain efficiency and maximum power transfer. The true-curvilinear spline design operates freely, and the oversized U-joints set the standard for strength and high-power durability.



Waterproof Electronics

Just like full-size rally racers, the Rally VXL doesn't slow down for rain; the waterproof servo and o-ring-sealed receiver box let you keep on racing, even in wet weather that parks lesser cars on the bench. The patent-pending sealed receiver box houses Traxxas' latest 2.4GHz Traxxas Link receiver and can accept aftermarket receivers as well, without compromising the model's waterproof properties. The new VXL-3m electronic speed control and high-torque digital micro servo are sealed against the elements to give you total driving freedom.



Digital High-Torque Waterproof Steering Servo

Small but powerful, the Rally's 2080 servo cranks out 41.7 oz.-in. of tire-turning torque with digital circuitry for responsive steering and precise control as you slide through turns. Waterproof, o-ring-sealed construction locks out moisture, dirt, and debris.




Dual Battery Comparents

Rally VXL already blows the rest away with its 30+mph out-of-the-box speed using the included 6-cell Power Cell NiMH battery pack but that's just the beginning of Traxxas Rally's speed story. The chassis' dual battery comparents let you add a second NiMH battery pack and Traxxas series connector (both sold separately) for 14.4 volts of power. Install the included "speed pinion," and top speed jumps to 50+ mph. All of this incredible performance comes with safe, inexpensive NiMH power!


Traxxas Power Cell Series 1 NiMH Battery Pack

Rally VXL is fully assembled and Ready-To-Race with an included Power Cell NiMH battery and charger. Designed specifically for the high-power needs of the Velineon brushless system, this potent pack features heavy-duty construction, 16-gauge wires and Traxxas' exclusive High-Current Connector for efficient power transfer, run after run. A convenient wall charger is also included. Everything you need to power-up is in the box.



Quick-Release Battery Doors

Rally VXL uses an innovative solution for easy battery installation. Quick release doors snap open and closed in seconds for fast and easy battery loading. There are no clips to lose in the field and the potential for fast battery changes during pit stops opens the door for a whole new class of electric truck racing.



Battery Cooling Vents

Artfully designed intakes and exits allow cooling air to circulate through the battery enclosures to lower the temperature of the batteries for maximum run-time and "punch."



Rubber-Sealed Ball Bearings

Precision rubber-sealed bearings offer the ultimate in low-friction performance and maximum protection in dirty environments. They are used in all exposed locations on the truck and are virtually maintenance free.



Hex Hardware

Pro-quality, high-grade, metric hex-drive hardware is used throughout for extra strength, and easy maintenance and repair. The black-oxide rust-resistant finish provides a high tech-look and feel.



Fully Customizable With Traxxas Factory Options

Designed and engineered for lasting performance, high precision, superior durability and unbeatable style, genuine Traxxas options for Rally VXL are the perfect way tailor your truck to the track, or just add the unique touches that make it your own. From red-anodized toe links and pushrods to CV axles and hard-anodized shock bodies, Traxxas offers a wide range of performance parts for the Traxxas Rally. Visit the accessories page to see the full line of Traxxas Rally accessories.

Features

• Officially licensed BFGoodrich rally tires
• Realistic tread pattern and specially formulated rubber compound
• Tough rally-inspired body design features cutting edge graphics
• Realistic Split-Spoke rally wheels (1.9" diameter, 12mm hex)
• Impact absorbing foam front bumper
• Adjustable height body mounts
• TQ 2.4GHz High Output transmitter with Traxxas Link
  • Automatically stores and loads settings for up to 20 Traxxas Link-enabled models just switch on and drive, "model selection" is not required.
  • Multi-Function knob
  • Adjustable steering and throttle percentage (dual rates)
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle end points
  • High 13ms frame rate and near-zero latency for responsive control
  • 5-channel micro receiver with dual channel-1 inputs
• Race-winning, F1-inspired Revo suspension technology and E-Revo integrated chassis design, perfectly optimized for 1/16 scale
• Powered by the Velineon Brushless Power System
• Traxxas High-Current Connector allows high-capacity battery packs to deliver maximum voltage to the Velineon Brushless Power System
• Velineon VXL-3m Electronic Speed Control

  • LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
  • Sport Mode - Forward / Brake / Reverse
  • Race Mode - Forward / Brake
  • Training Mode - 50% Forward / Brake / 50% Reverse (patent pending)
• Velineon 380 Brushless Motor

  • High-performance sensorless design
  • High-strength Neodymium magnets
  • Efficient, high-speed ball bearings
  • Precision-balanced rotor
  • Gold-plated 3.5mm bullet connectors
• Digital High-Torque Waterproof Micro Steering Servo
• Waterproof, o-ring sealed receiver box
• Sealed, silicone-filled differentials an industry first in 1/16 scale
• Torque-Control slipper clutch system
• Telescoping universal-joint driveshafts
• Rubber-sealed ball bearings
• External gear cover with easy slipper access
• Rocker-actuated shocks provide true progressive damping and spring rates
• Threaded-body, oil-filled shocks permit fast, precise preload adjusents and deliver smooth, consistent damping
• Suspension is precision tuned for on-road performance
• Fiber-composite monocoque chassis
• Speed control and receiver are securely fastened to chassis
• Integrated battery comparents with intake and exit cooling vents
• Quick-release battery doors for fast pack changes
• Full line of genuine Traxxas accessories available
• Traxxas Rally is backed by unparalleled Traxxas support and parts availability

MODEL 7307: Fully assembled, Ready-To-Race, with TQ 2.4GHz High Output radio system with Traxxas Link, Velineon 380 motor, VXL-3m ESC, 7.2 volt NiMH battery & charger, and ProGraphix painted body.

Specification

TRAXXAS RALLY VXL (#7307) SPECS

Length:   14" (356mm) Front Track:   7.3" (185mm) Rear Track:   7.3" (185mm) Weight:   34oz (964g) Height (overall):   4.72" (120mm) Wheelbase:   8.1" (206mm) Wheel Diameter   1.9" (48mm) Shock Length (front/rear):   44mm / 44mm Front/Rear Tires (glued):   Officially Licensed Hard Compound Replica BFGoodrich Drift Front/Rear Wheels:   White Split-Spoke Rally Electronic Speed Control:   Waterproof Velineon VXL-3m ESC Motor (electric):   Velineon 380 Brushless Transmission:   Heavy-Duty with Steel Idler Gear Gear Ratio (internal):   5.04:1, (reversed input: 9.72:1) Overall Drive Ratio:   8.10:1 (stock, out-of-box) Differential Type:   Hardened Steel Bevel, Sealed Gear Pitch:   48-Pitch Chassis Structure/Material:   Molded Composite Nylon Monocoque Brake Type:   Electronic Drive System:   Shaft-Driven 4WD Steering:   Bellcrank Radio System:   TQ 2.4GHz High Output with Traxxas Link Top Speed:   30+mph (50+mph with dual batteries)** Skill Level:   2 *Battery Tray Dimensions:   89mm x 35.5mm x 20mm Included Batteries:   6-cell NiMh with Charger Required Batteries:   4 "AA" (transmitter)

VXL-3m WATERPROOF ESC SPECIFICATIONS

Input voltage:   6 to 12 cells NiMH, 2S to 3S LiPo Case Size:   26.5mm W x 46.5mm D x 22mm H Weight:   38 grams Motors:   Sensorless Brushless Motor Limit:   None On Resistance:   0.0005 Ohms PWM Frequency:   12,000Hz Peak Current:   326A Continuous Current:   52A BEC Voltage:   6.0V DC Motor / Battery Wiring:   16-Gauge Maxx Cable Transistor Type:   MOSFET Low Voltage Detection:   2-Stage indicators, switchable (on or off) Thermal Protection:   2-Stage thermal shutdown Profile selection:   Sport Mode: 100% fwd, 100% brakes, 100% rev Race Mode: 100% fwd, 100% brakes, no rev. Training Mode: 50% fwd, 100% brakes, 50% rev. Single-button setup:   Yes, Traxxas EZ-Set Battery Input Connector:   Traxxas High-Current Connector Motor Connector:   TRX 3.5mm Bullet Connectors

MODEL 7307: Fully assembled, Ready-To-Race, with TQ 2.4GHz High Output radio system with Traxxas Link, Velineon 380 motor, VXL-3m ESC, 7.2 volt NiMH battery & charger, and ProGraphix painted body.

Click here for more Information

Manual

Instructions

• 2080 Micro Servo Gear Set Installation/Assembly
• 1/16 RPM Sensor Installation
• 1/16 Voltage Tap Installation
• 1/16 Temp Sensor Installation
• Traxxas Power Cell Battery Application Guide (Counter Mat) (LiPo and NiMH)
• 4091 On-Board Temperature Meter Instructions (for TRX engines)

Parts List

Exploded Views

• 7307 Transmission Exploded View (1/16 Rally VXL)
• 7307 Shafts Exploded View (1/16 Rally VXL)
• 7307 Rear Exploded View (1/16 Rally VXL)
• 7307 Front Exploded View (1/16 Rally VXL)
• 7307 Chassis Exploded View (1/16 Rally VXL)

Box Panels

• 7307 Box Panels (1/16 Rally VXL)
• 7307A Box Panels (1/16 Rally VXL, Kawasaki Edition)
