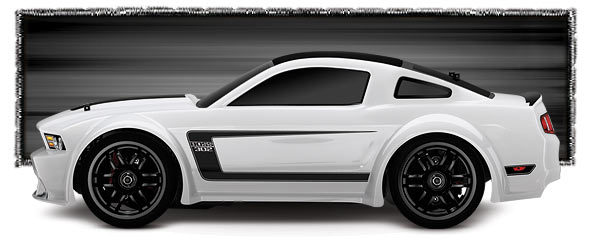

Traxxas 1/16 Scale Ford Mustang Boss 302 4WD Electric Muscle Car - 7303

About Traxxas 1/16 Scale Ford Mustang Boss 302 4WD Electric Muscle Car - 7303

1/16 Ford Mustang Boss 302 by Traxxas Ford's Iconic Muscle Car, With Titan 550 Power!

Officially licensed from Ford Motor Company, a global automotive industry leader, Traxxas’ new Ford Mustang Boss 302 puts you behind the wheel of this legendary racer. Titan 550 horsepower stays true to the Boss 302’s performance heritage, cranking out tire-shredding torque for instant acceleration and exciting power slides. The lowered stance, tough wide-body styling, and aggressive Split Spoke wheels speak to the performance that lives under the body. The Boss 302 is an impressive street machine with rocker actuated coil-over shocks, full-time 4WD, and unmistakable Mustang style all fully assembled and Ready-To-Race! Hang it out in the turns and hustle down the straights with the perfect blend of power and traction 4WD makes it easy to ride the ragged edge of oversteer as though you had the pedal to the floor in a full-size Boss 302. The innovative suspension system has been expertly engineered for high-performance driving right down to the oil filled, threaded-body GTR shocks and firm, road-tuned springs. The all-wheel drive system rides on full ball-bearings and delivers smooth efficient power through Traxxas' Torque-Control slipper clutch and proven telescoping u-joint drive shafts. Intricately molded as a single piece, the chassis balances strength, weight, function, and style in an impressive achievement of packaging and performance optimization that could only come from Traxxas.

Titan Modified Muscle and XL-2.5 ESC

Leave it to Traxxas to put the huge torque of a the Titan 550 motor into the 1/16 Boss 302! The powerful Titan 12T 550 modified is the same motor used in Traxxas' larger 1/10 scale models. The Titan 12T is designed for consistent torque and high speeds run after run. The Titan 12T 550 motor's integrated cooling fan pulls cool air through the motor to keep temperatures down. Airflow is routed through vent tunnels molded in the motor plate. A cooler running motor equates to faster speeds, longer runtime, and extended motor life. The XL-2.5 Electronic Speed Control offers high current handling, EZ-Set one-button setup, and smooth high-frequency control. Three drive profiles, low voltage detection, thermal shutdown protection, gold-plated connectors, and incredibly low resistance are all features you might expect to only be available on an expensive replacement ESC. Fully waterproof electronics are a Traxxas exclusive that opens the door to new driving adventures on rain-soaked asphalt.

Exclusive Waterproof Electronics For Unlimited R/C Excitement

The 1/16 Ford Mustang Boss 302 doesn't slow down for rain. The waterproof servo and o-ring-sealed receiver box let you keep on racing, even in wet weather that parks lesser cars on the bench. The patent-pending sealed receiver box houses Traxxas' proven micro receiver and can accept aftermarket receivers as well, without compromising the model's waterproof properties. The new XL-2.5 electronic speed control and high-torque digital micro servo are sealed against the elements to give you total driving freedom.



100% Ready-To-Race

The 1/16 Ford Mustang Boss 302  is fully assembled with TQ radio system, painted and decaled body, pre-glued tires, and detailed instructions. A Traxxas Power Cell NiMH battery and charger are also included, making the Boss 302 truly Ready-To-Race. Designed specifically for the high-power needs of Traxxas vehicles, the potent Power Cell pack features heavy-duty construction, 16-gauge wires and Traxxas' exclusive High-Current Connector for efficient power transfer, run after run.

Traxxas backs the 1/16 Ford Mustang Boss 302 and all of our products with top-notch support that is second to none. A staff of skilled representatives is on-hand to answer your questions via phone, website, or e-mail. Unmatched parts support allows your Traxxas vehicle to be serviced with parts and support from thousands of hobby dealers worldwide. Your investment is also protected by the Traxxas Lifetime Electronics Warranty. Traxxas goes the extra mile to ensure that your R/C experience is easy and fun (and fast!). Follow the details link above to go in depth on all the 1/16 Ford Mustang Boss 302's performance benefits and explore its race-engineered features.



1/16 FORD MUSTANG BOSS 302 (#7303)

MODEL 7303: 1/16 Ford Mustang Boss 302 (brushed), fully assembled, Ready-To-Race,with TQ AM radio system, Titan 12T 550 motor, XL-2.5 electronic speed control,
7.2 volt NiMH battery & charger, and Officially Licensed painted body.

Details

XL-2.5 Waterproof Electronic Speed Control

Designed and engineered by Traxxas, the XL-2.5 Electronic Speed Control is completely waterproof for all-weather R/C driving fun. This high-performance ESC is packed with impressive specifications that are normally only found on more expensive high-end replacement units. The XL-2.5 features three throttle profiles, Thermal Shutdown Protection, 6-8 cell NiMH compatibility, and built-in BEC. High-frequency operation combined with ultra-low resistance make the XL-2.5 an efficient and ultra-smooth fully proportional speed control. The XL-2.5 is manufactured by Traxxas to ensure the highest level of quality and support.

• Innovative waterproof design
• LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
• Fully-proportional forward, reverse, and braking control
• Programmable with three drive profiles:

• Sport Mode – Fwd / Brake / Rev
• Race Mode – Fwd / Brake
• Training Mode – 50% Fwd / Brake / 50% Rev

• EZ-Set push-button setup
• Multi-color LED
• Thermal shutdown protection
• Efficient, low-loss MOSFET design
• High-capacity heat sink
• Smooth, high-frequency operation
• Easy installation in Traxxas models
• Backed by the Traxxas Lifetime Electronics warranty

Titan 12-Turn 550 Modified Motor

Ford Mustang Boss 302 includes a powerful Titan 12T 550 modified motor with internal cooling fan. The Titan's over-sized armature (30% larger compared to 540-sized armatures) is equipped with 12-turns of pure copper wire for big torque and increased power-handling capabilities. Lower running temperatures are achieved with the integrated cooling fan. The Titan 12T requires very little maintenance and is designed for consistent torque and high speeds from run to run, without fading.



Performance-Tuned Suspension

The 1/16 Ford Mustang Boss 302's innovative linkage-based suspension geometry increases spring and damping rates in proportion to cornering forces for perfectly balanced handling. The design is competition-proven by the 8-time National Champion Revo, and is specially configured for on-road action with new stiffer springs and piston specs for firmer damping and roll-resistance. The laydown shocks also lower the chassis' center of gravity for lightning-quick turning response.



Oil-Filled GTR Shocks

Specially tuned for high-performance on-road driving, the super-smooth oil-filled shocks maintain control through extreme maneuvers. Threaded spring collars allow quick and accurate pre-load adjustment, and the shock's spring and damping rates have been carefully chosen specifically for the Boss 302.





Tires & Wheels

For authentic sport handling, the slick tires are molded in a specially formulated compound that delivers the perfect blend of slip and grip to drift through turns and shred the straights. The tires are factory-glued to satin Split-Spoke wheels for an authentic look. The rims feature 12mm hexes that give the 1/16 Boss 302 full compatibility with a wide array of aftermarket rim and tire combinations.



Officially Licensed Ford Mustang Boss 302 Body and Graphics

The Boss 302's exclusive body design features an aggressive, muscular shape wrapped in custom graphics that complement the unique Ford Mustang colors. Decals are applied to get the Boss 302 out of the box and into action in just minutes.





Four-Channel Micro Receiver

Traxxas' 4-channel micro receiver provides reliable reception as it saves weight, and dual channel-1 inputs allow you to install dual steering servos without the need for a bulky Y-harness. The receiver is fully protected from the elements by the patent-pending waterproof receiver box.





Traxxas High-Current Connectors

Adapters waste power! Connect-all systems pinch off power like a kinked garden hose. Get the most from your battery with a Traxxas High Current Connector. It actually has less resistance than an equal length of wire, so you get pure power transfer for maximum speed, punch, and runtime.





Ball-Bearing Transmission With Torque Control Slipper Clutch

1/16 Ford Mustang Boss 302's high-efficiency, heavy-duty transmission is built for brushless power. An adjustable slipper clutch lets you tailor power delivery to suit the terrain and your driving style, and precision ball-bearings make certain every ounce of Titan torque is poured into the pavement.





Full-Time 4WD With Sealed, Silicone-Filled Differentials

Sealed, silicone-filled differentials resist "unloading" for superior performance and authentic handling as you drift the Boss 302 through corners with precision and control. The viscosity of the differential fluid has been carefully tuned for exciting on-road performance, and the shaft-driven 4WD system delivers instant acceleration with proven efficiency and durability.





Pivot Ball Suspension

The Boss 302 features pivot-ball suspension for smooth suspension articulation and easy adjustment. Rubber-sealed ball bearings ward off dirt and debris as they increase precision and reduce friction, and the oversized 8x12mm inboard bearings maximize durability. For extra security, the heavy-duty axle carriers are designed so the universal-joint axles' crosspins are captured by the inner bearings another example of Traxxas' attention to every detail.



Universal-Joint Driveshafts

High-performance on-road driving requires smooth, efficient power delivery as the car drifts through turns and powers from challenge to challenge with sustained steering input. Chattering dogbones won't cut it! Traxxas steps up with fully equipped telescoping universal-joint axles for optimum drivetrain efficiency and maximum power transfer. The true-curvilinear spline design operates freely, and the oversized U-joints set the standard for strength and high-power durability.



Waterproof Electronics

The Boss 302's waterproof electronics open the door to wild sliding maneuvers on rain-soaked pavement. The antenna and servo wires route neatly through the receiver box's special watertight seal (patent pending). To protect the receiver from dust and water, a custom shaped blue O-ring seals the receiver box. Thanks to the unique design, the receiver can be removed for service and even aftermarket receivers can be used, without losing the sealing properties of the box.



Digital High-Torque Waterproof Steering Servo

Small but powerful, the 1/16 Boss 302's 2080 servo cranks out 41.7 oz.-in. of tire-turning torque with digital circuitry for responsive steering and precise control as you slide through turns. Waterproof, o-ring-sealed construction locks out moisture, dirt, and debris.



Dual Battery Compartments

The Boss 302 unleashes its full speed potential with the included Power Cell battery pack, but for extended run time and more "punch," the chassis' dual battery compartments let you add a second NiMH battery pack and Traxxas parallel connector (both sold separately) to double the available battery capacity.



Traxxas Power Cell Series 1 NiMH Battery Pack

1/16 Boss 302 is fully assembled and Ready-To-Race with an included Power Cell NiMH battery and charger. This potent pack features heavy-duty construction, 16-gauge wires and Traxxas' exclusive High-Current Connector for efficient power transfer, run after run. A convenient wall charger is also included. Everything you need to power-up is in the box.



Quick-Release Battery Doors

Traxxas uses an innovative solution for easy battery installation. Quick release doors snap open and closed in seconds for fast and easy battery loading. There are no clips to lose in the field and the potential for fast battery changes during pit stops opens the door for a whole new class of electric racing.



Battery Cooling Vents

Artfully designed intakes and exits allow cooling air to circulate through the battery enclosures to lower the temperature of the batteries for maximum run-time and "punch."



Rubber-Sealed Ball Bearings

Precision rubber-sealed bearings offer the ultimate in low-friction performance and maximum protection in dirty environments. They are used in all exposed locations and are virtually maintenance free.



Hex Hardware

Pro-quality, high-grade, metric hex-drive hardware is used throughout for extra strength, and easy maintenance and repair. The black-oxide rust-resistant finish provides a high tech-look and feel.





TQ Radio System

The included TQ radio system includes a high-power transmitter with a specially designed comfort grip, a precise high-torque steering servo, and a compact receiver. The perfectly balanced TQ transmitter features servo reversing, a low battery indicator, electronic trim control, and it is digitally proportional for precise steering and throttle control.




Fully Customizable With Traxxas Factory Options

Designed and engineered for lasting performance, high precision, superior durability and unbeatable style, genuine Traxxas options for 1/16 Ford Mustang Boss 302 are the perfect way tailor your truck to the track, or just add the unique touches that make it your own. From red-anodized toe links and pushrods to CV axles and hard-anodized shock bodies, Traxxas offers a wide range of performance parts for your 1/16 scale vehicle.



Features



• Fully assembled and Ready-To-Race
• Officially licensed Ford Mustang Boss 302 body and custom graphics
• Full-time 4WD for superior handling and control
• Pre-glued, low-profile slick tires molded in a specially formulated rubber compound mounted on split-spoke wheels
• Impact absorbing foam front bumper
• Adjustable height body mounts
• XL-2.5 Waterproof Electronic Speed Control

• Innovative waterproof design
• LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
• Fully-proportional forward, reverse, and braking control
• Programmable with three drive profiles:
• Sport Mode – Fwd / Brake / Rev
• Race Mode – Fwd / Brake
• Training Mode – 50% Fwd / Brake / 50% Rev
• EZ-Set push-button setup
• Multi-color LED
• Thermal shutdown protection
• Efficient, low-loss MOSFET design
• High-capacity heat sink
• Smooth, high-frequency operation
• Easy installation in Traxxas models

• Powerful Titan 12-Turn 550 modified motor
• Race-winning, F1-inspired Revo suspension technology and E-Revo integrated chassis design, perfectly optimized for 1/16 scale
• Traxxas High-Current Connector allows high-capacity battery packs to deliver maximum voltage to the Velineon Brushless Power System
• Includes Traxxas Power Cell battery pack and charger
• Digital High-Torque Waterproof Micro Steering Servo
• Waterproof, o-ring sealed receiver box
• Ball-bearing transmission
• Sealed, silicone-filled differentials an industry first in 1/16 scale
• Torque-Control slipper clutch system
• Telescoping universal-joint driveshafts
• Rubber-sealed ball bearings
• Precision high-quality hex hardware throughout
• External gear cover with easy slipper access
• Rocker-actuated shocks provide true progressive damping and spring rates
• Threaded-body, oil-filled GTR Shocks permit fast, precise preload adjustments and deliver smooth, consistent damping
• Suspension is precision tuned for on-road performance
• Fiber-composite monocoque chassis
• Speed control and receiver are securely fastened to chassis
• Integrated battery compartments with intake and exit cooling vents
• Quick-release battery doors for fast pack changes
• Top Qualifier (TQ) Transmitter

• 2-channel transmitter
• High power output
• Servo reversing
• Electronic trim controls
• Low battery indicator
• Retractable antenna
• 50/50 or 70/30 trigger neutral adjustment
• Distinctive, ergonomic, contour grip

• Full line of genuine Traxxas accessories available
• 1/16 Ford Mustang Boss 302 is backed by unsurpassed Traxxas support and parts availability

MODEL 7303: 1/16 Ford Mustang Boss 302 (Brushed), Fully assembled, Ready-To-Race, with TQ AM radio system, Titan 12T 550 motor, XL-2.5 electronic speed control,7.2 volt NiMH battery & charger, and Officially Licensed painted body.

Specification

1/16 FORD MUSTANG BOSS 302 (BRUSHED) (#7303) SPECS

Length:   14.7" (373mm) Front Track:   7.3" (185mm) Rear Track:   7.3" (185mm) Weight:   34oz (964g) Height (overall):   4.72" (120mm) Wheelbase:   8.1" (206mm) Wheel Diameter   1.9" (48mm) Shock Length (front/rear):   44mm / 44mm Front/Rear Tires (glued):   Hard-Compound Slicks Front/Rear Wheels:   Satin Split-Spoke Electronic Speed Control:   Waterproof XL-2.5 ESC Motor (electric):   Titan 12T 550 Transmission:   Heavy-Duty with Steel Idler Gear Gear Ratio (internal):   5.04:1, (reversed input: 9.72:1) Overall Drive Ratio:   8.10:1 (stock, out-of-box) Differential Type:   Hardened Steel Bevel, Sealed Gear Pitch:   48-Pitch Chassis Structure/Material:   Molded Composite Nylon Monocoque Brake Type:   Electronic Drive System:   Shaft-Driven 4WD Steering:   Bellcrank Radio System:   TQ AM Radio Skill Level:   2 *Battery Tray Dimensions:   89mm x 35.5mm x 20mm Included Batteries:   6-cell NiMh with Charger Required Batteries:   4 "AA" (transmitter) *Max dimensions reflect a battery that is the length of the entire battery tray, but due to the tray shape and design, the height and width of the battery must be decreased.



XL-2.5 WATERPROOF ESC SPECIFICATIONS

Input Voltage:   8 Cells NiMH, 2 Cells (2S) LiPo 4-8 Cells NiMH, 2 Cells (2S) LiPo Case Size:   26.5mm W x 46.5mm D x 22mm H Weight:   33 Grams Motor Limit:   10-turns* On Resistance (@Trans):   0.008 Ohms Reverse Delay:   None BEC Voltage:   6.0V DC Power Wire:   16 Gauge / 40mm Input Harness Wire:   26 Gauge / 130mm Motor Wires:   26 Gauge / 130mm Transistor Type:   MOSFET Low Voltage Detection:   2-Stage indicators, switchable (on and off) PWM Frequency:   2300 Hz Thermal Protection:   Thermal shutdown Profile selection:   Sport Mode: 100% FWD, 100% brakes, 100% REV Race Mode: 100% FWD, 100% brakes, no REV Training Mode: 50% FWD, 100% brakes, 50% REV Single-button setup:   Yes, Traxxas EZ-Set



MODEL 7303: 1/16 Ford Mustang Boss 302 (Brushed), Fully assembled, Ready-To-Race, with TQ AM radio system, Titan 12T 550 motor, XL-2.5 electronic speed control,7.2 volt NiMH battery & charger, and Officially Licensed painted body.
