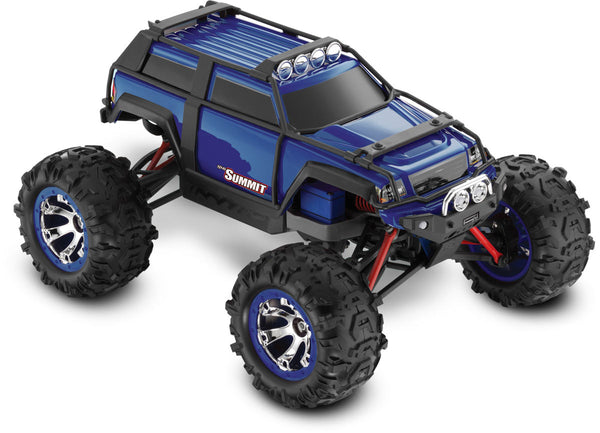

Traxxas 1/16 Scale Summit Style 4WD Extreme Terrain Monster Truck - 7205

MODEL 7205: Fully assembled, Ready-To-Drive, with TQ AM radio system, Titan 12T 550 motor, XL-2.5 electronic speed control, 7.2 volt NiMH battery & charger, and ExoCage painted body.

Details

XL-2.5 Waterproof Electronic Speed Control

Designed and engineered by Traxxas, the XL-2.5 Electronic Speed Control delivers smooth throttle control with 380-size and smaller mini-motors and is completely waterproof for all-weather R/C driving fun. This high-performance ESC is packed with impressive specifications that are normally only found on more expensive high-end replacement units. The XL-2.5 features three throttle profiles, Thermal Shutdown Protection, 6-8 cell NiMH compatibility, and built-in BEC. High-frequency operation combined with ultra-low resistance make the XL-2.5 an efficient and ultra-smooth fully proportional speed control. The XL-2.5 is manufactured by Traxxas to ensure the highest level of quality and support.

Traxxas Power Cell Series 1 NiMH Battery Pack

The 1/16 Summit is fully assembled and Ready-To-Drive with an included Power Cell NiMH battery and charger. Designed specifically for the high-power needs of Traxxas vehicles, this potent pack features heavy-duty construction, 16-gauge wires and Traxxas' exclusive High-Current Connector for efficient power transfer, run after run. A convenient wall charger is also included. Everything you need to power-up is in the box.


Dual Battery Compartments

The chassis' dual battery compartments let you add a second NiMH battery pack and Traxxas parallel connector (both sold separately) to nearly double 1/16 Summit's run time for even more off-road adventure between charges.

Traxxas High-Current Connectors

The XL-2.5 electronic speed control comes equipped with the revolutionary Traxxas High-Current Connectors. Designed to handle high-current applications, Traxxas Connectors effortlessly funnel the battery's total power to the electronics keeping things running cool and at full capacity.

Titan 12-Turn 550 Modified Motor

1/16 Summit includes a powerful Titan 12T 550 modified motor--the same motor used in Traxxas' larger 1/10 scale models! The Titan's over-sized armature (30% larger compared to 540-sized armatures) is equipped with 12-turns of pure copper wire for big torque and increased power-handling capabilities. Lower running temperatures are achieved with the integrated cooling fan. The Titan 12T requires very little maintenance and is designed for consistent torque and high speeds from run to run, without fading.

Trail-Ready Styling With Realistic ExoCage

Hardcore full-size off-roaders protect their rigs with external roll cages, and Summit follows suit with its rugged ExoCage. The flexible, bolt-on cage provides functional protection and incorporates tough-looking fender flares and a realistic light bar to complete Summit's trail-ready look.

NEW 2.2" Geode Wheels and Canyon AT Tires

Dirt, mud, snow…no matter where you run Summit, you can count on it to dig in hard with its aggressive Canyon AT tires. The multi-terrain tread features large, angular lugs that dig in to get brushless horsepower to the ground for powerful acceleration and all-terrain traction. New 2.2" Geode chrome wheels support the tires with molded-in "beadlock" rings that are matched to the body color for custom style.


Ball-Bearing Transmission with Slipper Clutch

1/16 Summit's high-efficiency, heavy-duty transmission is designed for full-throttle fun with precision ball bearings and high-strength gears. An adjustable slipper clutch lets you tailor power delivery to suit the terrain and your driving style, and makes certain every watt of Velineon power is turned into pure performance.



Sealed Silicone-Filled Differentials

An industry first! Only Traxxas offers the superior power-handling and tuning capability of sealed differentials in 1/16 scale. The heavy-duty, steel-gear diffs are factory-filled with premium silicone fluid to prevent unloading and maintain maximum traction and control. It's a Traxxas innovation you won't find on any other mini-model.


Pivot Ball Suspension

1/16 Summit features pivot-ball suspension for smooth suspension articulation and easy adjustment. Rubber-sealed ball bearings ward off dirt and debris as they increase precision and reduce friction, and the oversized 8x12mm inboard bearings maximize durability. For extra security, the heavy-duty axle carriers are designed so the universal-joint axles' crosspins are captured by the inner bearings—another example of Traxxas' attention to every detail.


Universal-Joint Driveshafts

1/16 Summit is fully equipped with telescoping, universal-joint axles for optimum drivetrain efficiency and maximum power transfer. The true-curvilinear spline design operates freely, and the oversized U-joints set the standard for strength and high-power durability.

Four-Channel Micro Receiver

Traxxas' 4-channel micro receiver provides reliable reception as it saves weight, and dual channel-1 inputs allow you to install dual steering servos without the need for a bulky Y-harness. The receiver is fully protected from the elements by 1/16 Summit's waterproof receiver box.

Waterproof Electronics

Mud. Water. Snow. 1/16 Summit's waterproof electronics and fully sealed receiver box let you make tracks in conditions that leave other trucks parked at home. Traxxas' innovative, ground-breaking waterproof receiver box puts 1/16 Summit in a league of its own. The antenna and servo wires route neatly through a special watertight seal (patent pending). To protect the receiver from dust and water a custom shaped blue O-ring seals the receiver box. Thanks to the unique design, the receiver can be removed for service and even aftermarket receivers can be used, without losing the sealing properties of the box.

Digital High-Torque Waterproof Steering Servo

Small but powerful, the 1/16 Summit's #2080 servo cranks out 41.7 oz.-in. of tire-turning torque with digital circuitry for responsive control—even in water, mud and snow, thanks to its O-ring-sealed waterproof construction.



Quick-Release Battery Doors

Summit uses an innovative solution for easy battery installation. Quick-release battery doors snap open and closed in seconds for fast and easy battery installation. There are no clips to lose in the field, and fast battery changes during pit stops let you spend more time on the trail and less time on the bench.

Battery Compartment Vents

Resembling the exhaust ducts of a turbine powered jet, the futuristic battery vents are securely mounted on the chassis. In addition to offering entrance and exit cooling, the oversized openings incorporate latches that insert into the battery door clasps. The battery compartment vents symbolize the sleek and high-tech image that places Traxxas 1/16 scale vehicles in a class all their own.

Long Travel Suspension

1/16 Summit is equipped with Long Travel rockers to deliver over 50mm of suspension articulation for bump and jump handling capability far beyond that of any "mini" truck. Tunable damping rates, independent ride height adjustment, and the absolute highest level of control for any situation give 1/16 Summit total control of any terrain.

Oil-Filled GTR Shocks

1/16 Summit's super-smooth oil-filled shocks damp the suspension and maintain control no matter how rugged the terrain. They are fully tuneable and include pressure bladders for air/oil separation and threaded spring pre-load collars for quick ride height adjustments.


Revo-Spec Suspension

A defining feature of the Summit, expertly executed in 1/16 scale—the unique Revo-Spec suspension places the shocks inboard on the chassis, away from dirt and debris, and amplifies the shocks' travel for incredible off-road capability without the weight of extra-long shocks. Installed Long-Travel rockers provide linear travel; optional Progressive rockers are available to tune the 1/16 Summit with damping and spring rates that increase as the suspension is compressed.


Rubber-Sealed Ball Bearings

Precision rubber-sealed bearings offer the ultimate in low-friction performance and maximum protection in dirty environments. They are used in all exposed locations on the truck and are virtually maintenance free.

Hex Hardware

Pro-quality, high-grade, metric hex-drive hardware is used throughout for extra strength, and easy maintenance and repair. The black-oxide rust-resistant finish provides a high tech-look and feel.

TQ Radio System

The included TQ radio system includes a high-power transmitter with a specially designed comfort grip, a precise high-torque steering servo, and a compact receiver. The perfectly balanced TQ transmitter features servo reversing, a low battery indicator, electronic trim control, and it is digitally proportional for precise steering and throttle control.

Fully Customizable With Traxxas Factory Options

Designed and engineered for lasting performance, high precision, superior durability and unbeatable style, genuine Traxxas options for 1/16 Summit are the perfect way tailor your truck to the track, or just add the unique touches that make it your own. From red-anodized toe links and pushrods to CV axles and hard-anodized shock bodies, Traxxas offers a wide range of performance parts for the 1/16 Summit. Visit the accessories page to see the full line of 1/16 Summit accessories.


Features

• Race-winning, F1-inspired Revo suspension technology and E-Revo integrated chassis design, perfectly optimized for 1/16 scale
• Traxxas High-Current Connector allows high-capacity battery packs to deliver maximum voltage
• XL-2.5 Waterproof Electronic Speed Control

  • Innovative waterproof design
  • LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
  • Fully-proportional forward, reverse, and braking control
  • Programmable with three drive profiles:
    • Sport Mode – Fwd / Brake / Rev
    • Race Mode – Fwd / Brake
    • Training Mode – 50% Fwd / Brake / 50% Rev
  • EZ-Set push-button setup
  • Multi-color LED
  • Thermal shutdown protection
  • Efficient, low-loss MOSFET design
  • High-capacity heat sink
  • Smooth, high-frequency operation
  • Easy installation in Traxxas models
• Titan 12T Modified Motor
• Digital High-Torque Waterproof Micro Steering Servo
• Waterproof, o-ring sealed receiver box
• Sealed, silicone-filled differentials—an industry first in 1/16 scale
• Torque-Control™ slipper clutch system
• Heavy-duty CV-style driveshafts
• Rubber-sealed ball bearings
• External gear cover with easy slipper access
• Installed Long Travel Rockers for maximum suspension articulation
• Extended-wheelbase rear suspension arms (+10mm)
• Rocker-actuated shocks provide true progressive damping and spring rates
• Threaded-body, oil-filled shocks permit fast, precise preload adjustments and deliver smooth, consistent damping
• Fiber-composite monocoque chassis
• Speed control and receiver are securely fastened to chassis
• Integrated battery compartments with intake and exit cooling vents
• Quick-release battery doors for fast pack changes
• Scale all-terrain front and rear tires offer superior on- and off-road traction
• Pre-glued Canyon AT™ Tires with foam inserts
• Chrome Geode 2.2" wheels with beadlock trim
• ExoCage body with protective outer cage
• "LED ready" bumpers
• Top Qualifier (TQ) Transmitter
  • 2-channel transmitter
  • High power output
  • Servo reversing
  • Electronic trim controls
  • Low battery indicator
  • Retractable antenna
  • 50/50 or 70/30 trigger neutral adjustment
  • Distinctive, ergonomic, contour grip
• Full line of genuine Traxxas accessories available
• 1/16 Summit is backed by unparalleled Traxxas support and parts availability



MODEL 7107: Fully assembled, Ready-To-Race, TQ 2.4GHz High Output radio system with Traxxas Link, Velineon 380 motor, VXL-3m electronic speed control, 7.2 volt NiMH battery & charger, and ProGraphix painted body.

1/16 SUMMIT (#7205) SPECS

XL-2.5 WATERPROOF ESC SPECIFICATIONS

MODEL 7205: Fully assembled, Ready-To-Drive, with TQ AM radio system, Titan 12T 550 motor, XL-2.5 electronic speed control, 7.2 volt NiMH battery &charger, and ExoCage painted body.
