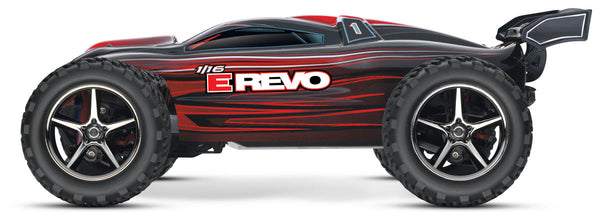

Traxxas 1/16 Scale E-Revo 4WD Electric Monster Truck w/ Brushed Motor - 71054

About Traxxas 1/16 Scale E-Revo 4WD Electric Monster Truck w/ Brushed Motor - 71054

1/16 E-Revo Innovation, Precision, and Performance—Now With High-Torque Titan 550 Power!

The Award-Winning Innovation of E-Revo, in 1/16 Scale

Traxxas sets the standard for power, performance and innovation. All the quality and capability you expect from Traxxas is available in 1/16 scale with the 1/16 E-Revo. At 14 inches long, this E-Revo is about half the size of the 1/10-scale E-Revo. But don't call it a "mini"—this is a whole new category of R/C performance and fun that no mere mini-model can match. Beneath the factory-finished polycarbonate shell, you'll find the winning suspension technology of the eight-time National Champion Traxxas Revo, high-torque Titan 550 power, and the convention-busting innovation of the E-Revo.



Modified Muscle

Leave it to Traxxas to put the huge torque of the Titan 550 motor into the 1/16 E-Revo for unstoppable climbing, roosting, monster performance! The Titan modified motor is designed for exciting mod-motor power output with long-lasting performance. The Titan 12T 550 motor's integrated cooling fan pulls cool air through the motor to keep temperatures down. Airflow is routed through vent tunnels molded in the motor plate. A cooler running motor equates to faster speeds, longer runtime, and extended motor life. The XL-2.5 Electronic Speed Control offers high current handling, EZ-Set one-button setup, and smooth high-frequency control. Three drive profiles, low voltage detection, thermal shutdown protection, gold-plated connectors, and incredibly low resistance are all features you might expect to only be available on an expensive replacement ESC.



Proven Traxxas Innovation

No detail was overlooked in our mission to bring all the capability, durability, and excitement of Traxxas' award-winning models to 1/16 scale for fast, affordable R/C fun. The 1/16 E-Revo is built on the race-winning, track-proven innovation of the Revo and E-Revo models. The standard-bearer of design excellence, the Revo's F1-inspired, rocker-actuated suspension has been expertly adapted to 1/16 scale with all its functionality and performance intact, right down to the oil-filled, threaded-body GTR shocks. This superior technology provides capability, performance, and tuning functions at the absolute pinnacle of truck design. The suspension and electronics are fully integrated into the semi-monocoque chassis design that stunned the world when it debuted with the E-Revo. Intricately molded as a single piece, the chassis balances strength and weight, function and aesthetics, convenience and performance to far surpass the standards of the "mini" category. In 1/16 scale, it is an even more impressive achievement of packaging and performance optimization that could only come from Traxxas, The Fastest Name In Radio Control.





Precision 2.4GHz Control Radio System

With the TQ™ 2.4GHz radio system, you just switch on a drive. There are no channels or frequencies to manage, so the focus is on having fun. The TQ’s ergonomic design is comfortable for all-day driving, and its sleek lines are enhanced by an internal antenna that is impervious to damage.







Waterproof Electronics For No-Limits R/C Excitement

Now a hallmark of Traxxas vehicles, E-Revo is the latest model to be equipped with fully waterproof electronics to keep the fun rolling in water, mud and snow while lesser cars stay on the bench. The patent-pending sealed receiver box houses Traxxas' 2.4GHz  receiver and can accept aftermarket receivers as well, without compromising the 1/16 models' waterproof properties. The XL-2.5 electronic speed control and high-torque, digital micro servo are sealed against the elements giving you the freedom to go places other cars wouldn't dare to venture.



100% Ready-To-Race

The 1/16 E-Revo is fully assembled with TQ 2.4 GHz radio system, Titan 550 motor, XL-2.5 electronic speed control, painted and decaled body, pre-glued tires, and detailed instructions. A Traxxas Power Cell NiMH battery and charger are also included, making the 1/16 E-Revo truly Ready-To-Race. Designed specifically for the high-power needs of Traxxas vehicles, the potent Power Cell pack features heavy-duty construction, 16-gauge wires and Traxxas' exclusive High-Current Connector for efficient power transfer, run after run. Traxxas backs the
1/16 E-Revo and all of our products with top-notch support that is second to none. A staff of skilled representatives is on-hand to answer your questions via phone, website, or e-mail. Unmatched parts support allows the E-Revo to be serviced with parts and support from thousands of hobby dealers worldwide. Your investment is also protected by the Traxxas Lifetime Electronics Warranty. Traxxas goes the extra mile to ensure that your R/C experience is easy and fun (and fast!). Follow the details link above to go in depth on all the 1/16 E-Revo performance benefits.



QUICK FEATURES ON 1/16 E-REVO (#71054)

• Ready-To-Race with included 6-cell NiMH Power Cell battery and charger
• Revo suspension technology for superior handling and control
• Full-time 4WD
• Titan 550 motor—largest in class
• Waterproof electronics
• Torque-control™ slipper clutch
• Sealed differentials
• Realistic all-terrain tires with foam inserts
• Traxxas High-Current Connector
• Metric hex hardware
• Rubber-sealed ball bearings

MODEL 71054: Fully assembled, Ready-To-Drive, with TQ™ 2.4GHz radio system, Titan 12T 550 motor, XL-2.5 electronic speed control, 7.2 volt NiMH battery & charger, and ProGraphix painted body.

Details

Titan 12-Turn 550 Modified Motor

1/16 E-Revo includes a powerful Titan 12T 550 modified motor--the same motor used in Traxxas' larger 1/10 scale models! The Titan's over-sized armature (30% larger compared to 540-sized armatures) is equipped with 12-turns of pure copper wire for big torque and increased power-handling capabilities. Lower running temperatures are achieved with the integrated cooling fan. The Titan 12T requires very little maintenance and is designed for consistent torque and high speeds from run to run, without fading.

Beyond the specs, the Titan 12T is made for dirt-roosting torque, lightning-quick acceleration, big-air jumps, and just about any other 4-wheel fun that demands real horsepower.



XL-2.5 Waterproof Electronic Speed Control

Designed and engineered by Traxxas, the XL-2.5 Electronic Speed Control delivers smooth throttle control with 380-size and smaller mini-motors and is completely waterproof for all-weather R/C driving fun. This high-performance ESC is packed with impressive specifications that are normally only found on more expensive high-end replacement units. The XL-2.5 features three throttle profiles, Thermal Shutdown Protection, 6-8 cell NiMH and 2-cell LiPo compatibility, low voltage detection, and a built-in BEC. High-frequency operation combined with ultra-low resistance make the XL-2.5 an efficient and ultra-smooth fully proportional speed control. The XL-2.5 is manufactured by Traxxas to ensure the highest level of quality and support.

• Innovative waterproof design
• LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
• Fully-proportional forward, reverse, and braking control
• Programmable with three drive profiles:
  • Sport Mode – Fwd / Brake / Rev
  • Race Mode – Fwd / Brake
  • Training Mode – 50% Fwd / Brake / 50% Rev
• EZ-Set push-button setup
• Multi-color LED
• Thermal shutdown protection
• Efficient, low-loss MOSFET design
• High-capacity heat sink
• Smooth, high-frequency operation
• Easy installation in Traxxas models
• Backed by the Traxxas Lifetime Electronics warranty

Precision 2.4GHz Control

With the TQ™ 2.4GHz radio system, you just switch on a drive. There are no channels or frequencies to manage, so the focus is on having fun. The TQ’s ergonomic design is comfortable for all-day driving, and its sleek lines are enhanced by an internal antenna that is impervious to damage.





Traxxas Power Cell Series 1 NiMH Battery Pack

The 1/16 E-Revo is fully assembled and Ready-To-Race with an included Power Cell NiMH battery and charger. Designed specifically for the high-power needs of Traxxas vehicles, this potent pack features heavy-duty construction, 16-gauge wires and Traxxas' exclusive High-Current Connector for efficient power transfer, run after run. A convenient wall charger is also included. Everything you need to power-up is in the box.



Dual Battery Compartments

The chassis' dual battery compartments let you add a second NiMH battery pack and Traxxas parallel connector (both sold separately) to nearly double 1/16 E-Revo's run time for even more off-road adventure between charges.



Traxxas High-Current Connectors

The XL-2.5 electronic speed control comes equipped with the revolutionary Traxxas High-Current Connectors. Designed to handle high-current applications, Traxxas Connectors effortlessly funnel the battery's total power to the electronics keeping things running cool and at full capacity.





Ball-Bearing Transmission with Slipper Clutch

1/16 E-Revo's high-efficiency, heavy-duty transmission is designed for full-throttle fun with precision ball bearings and high-strength gears. An adjustable slipper clutch lets you tailor power delivery to suit the terrain and your driving style, and makes certain every watt of Titan power is turned into pure performance.





Sealed Silicone-Filled Differentials

An industry first! Only Traxxas offers the superior power-handling and tuning capability of sealed differentials in 1/16 scale. The heavy-duty, steel-gear diffs are factory-filled with premium silicone fluid to prevent unloading and maintain maximum traction and control. It's a Traxxas innovation you won't find on any other mini-model.





Pivot Ball Suspension

1/16 E-Revo features pivot-ball suspension for smooth suspension articulation and easy adjustment. Rubber-sealed ball bearings ward off dirt and debris as they increase precision and reduce friction, and the oversized 8x12mm inboard bearings maximize durability. For extra security, the heavy-duty axle carriers are designed so the universal-joint axles' crosspins are captured by the inner bearings—another example of Traxxas' attention to every detail.





Universal-Joint Driveshafts

1/16 E-Revo is fully equipped with telescoping, universal-joint axles for optimum drivetrain efficiency and maximum power transfer. The true-curvilinear spline design operates freely, and the oversized U-joints set the standard for strength and high-power durability.





Waterproof Electronics

Mud. Water. Snow. 1/16 E-Revo's waterproof electronics and fully sealed receiver box let you make tracks in conditions that leave other trucks parked at home. Traxxas' innovative, ground-breaking waterproof receiver box puts 1/16 E-Revo in a league of its own. The antenna and servo wires route neatly through a special watertight seal (patent pending). To protect the receiver from dust and water a custom shaped blue O-ring seals the receiver box. Thanks to the unique design, the receiver can be removed for service and even aftermarket receivers can be used, without losing the sealing properties of the box.



Digital High-Torque Waterproof Steering Servo

Small but powerful, the 1/16 E-Revo #2080 servo cranks out 41.7 oz.-in. of tire-turning torque with digital circuitry for responsive control—even in water, mud and snow, thanks to its O-ring-sealed waterproof construction.





All-Terrain Tires & Wheels

Each corner of the 1/16 E-Revo is equipped with soft-compound Talon tires that are mounted and pre-glued on impressive 53mm Gemini chrome wheels. 12mm mounting hexes open the door to additional wheel and tire combos to tune traction for specific surfaces—even foam tires for carpet racing.





Quick-Release Battery Doors

E-Revo uses an innovative solution for easy battery installation. Quick-release battery doors snap open and closed in seconds for fast and easy battery installation. There are no clips to lose in the field, and fast battery changes during pit stops let you spend more time on the trail and less time on the bench.





Battery Compartment Vents

Resembling the exhaust ducts of a turbine powered jet, the futuristic battery vents are securely mounted on the chassis. In addition to offering entrance and exit cooling, the oversized openings incorporate latches that insert into the battery door clasps. The battery compartment vents symbolize the sleek and high-tech image that places Traxxas 1/16 scale vehicles in a class all their own.



Oil-Filled GTR Shocks

1/16 E-Revo's super-smooth oil-filled shocks damp the suspension and maintain control no matter how rugged the terrain. They are fully tuneable and include pressure bladders for air/oil separation and threaded spring pre-load collars for quick ride height adjustments.





Revo-Spec Suspension

A defining feature of the E-Revo, expertly executed in 1/16 scale—the unique Revo-Spec suspension places the shocks inboard on the chassis, away from dirt and debris, and amplifies the shocks' travel for incredible off-road capability without the weight of extra-long shocks.





Rubber-Sealed Ball Bearings

Precision rubber-sealed bearings offer the ultimate in low-friction performance and maximum protection in dirty environments. They are used in all exposed locations on the truck and are virtually maintenance free.





Hex Hardware

Pro-quality, high-grade, metric hex-drive hardware is used throughout for extra strength, and easy maintenance and repair. The black-oxide rust-resistant finish provides a high tech-look and feel.





Fully Customizable With Traxxas Factory Options

Designed and engineered for lasting performance, high precision, superior durability and unbeatable style, genuine Traxxas options for 1/16 E-Revo are the perfect way tailor your truck to the track, or just add the unique touches that make it your own. From red-anodized toe links and pushrods to CV axles and hard-anodized shock bodies, Traxxas offers a wide range of performance parts for the 1/16 E-Revo.



Unmatched Customer Support and Parts Availability

Unparalleled Traxxas support comes standard with every Traxxas model. Traxxas offers the most extensive product support base in the industry and provides unrivaled parts availability. 1/16 E-Revo parts and service are available from a network of nearly 2000 hobby dealers worldwide. Nobody works harder than Traxxas to be accessible to you. We have friendly toll-free phone support that's available from 8:30am to 9pm central time weekdays. Traxxas models are about experiencing total performance and satisfaction, not just in the products, but also with the company that stands behind them.

Features:

• TQ 2.4GHz radio system
• Race-winning, F1-inspired Revo suspension technology and E-Revo integrated chassis design, perfectly optimized for 1/16 scale
• Traxxas High-Current Connector allows high-capacity battery packs to deliver maximum voltage
• XL-2.5 Waterproof Electronic Speed Control
• Innovative waterproof design
• LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
• Fully-proportional forward, reverse, and braking control
• Programmable with three drive profiles:
• Sport Mode – Fwd / Brake / Rev
• Race Mode – Fwd / Brake
• Training Mode – 50% Fwd / Brake / 50% Rev
• EZ-Set push-button setup
• Multi-color LED
• Thermal shutdown protection
• Efficient, low-loss MOSFET design
• High-capacity heat sink
• Smooth, high-frequency operation
• Easy installation in Traxxas models
• Titan 12T Modified Motor
• Digital High-Torque Waterproof Micro Steering Servo (#2080)
• Waterproof, o-ring sealed receiver box
• Sealed, silicone-filled differentials—an industry first in 1/16 scale
• Torque-Control slipper clutch system
• Heavy-duty CV-style driveshafts
• Rubber-sealed ball bearings
• External gear cover with easy slipper access
• Installed Long Travel Rockers for maximum suspension articulation
• Extended-wheelbase rear suspension arms (+10mm)
• Rocker-actuated shocks provide true progressive damping and spring rates
• Threaded-body, oil-filled shocks permit fast, precise preload adjustments and deliver smooth, consistent damping
• Fiber-composite monocoque chassis
• Speed control and receiver are securely fastened to chassis
• Integrated battery compartments with intake and exit cooling vents
• Quick-release battery doors for fast pack changes
• Pre-glued Talon Tires with foam inserts
• Black-chrome Gemini wheels
• 1/16 E-Revo Brushed is backed by unparalleled Traxxas support and parts availability

1/16 E-REVO (#71054) Specifications

Length:   12.6" (320mm) Front Track:   9.4" (239mm) Rear Track:   9.4" (239mm) Weight:   44oz (1.24kg) Height (overall):   4.6" (117mm) Wheelbase:   7.9" (202mm) Wheel Diameter   2.0" (50.8mm) Shock Length (front/rear):   48mm / 48mm Front/Rear Tires (glued):   Talon™ 2.0" Front/Rear Wheels:   2.0" Gemini™ (black-chrome) Electronic Speed Control:   Waterproof XL-2.5 ESC Motor (electric):   Titan® 12T 550 Transmission:   Heavy-Duty Single Speed Gear Ratio (internal):   5.04:1, (reversed input: 9.72:1) Overall Drive Ratio:   15.75:1 (stock, out-of-box) Differential Type:   Hardened Steel Bevel, Sealed Gear Pitch:   48-Pitch Chassis Structure/Material:   Molded Composite Nylon Monocoque Brake Type:   Electronic Drive System:   Shaft-Driven 4WD Steering:   Bellcrank Transmitter: ­ TQ 2.4GHz Radio Receiver:   #6519 3-Channel Micro Top Speed:   20+mph Skill Level:   1 Battery Tray Dimensions:   89mm x 35.5mm x 20mm Included Batteries:   6-cell NiMh with Charger Required Batteries:   4 "AA" (transmitter)

XL-2.5 Waterproof ESC Specifications

Input Voltage:   4-8 Cells NiMH, 2 Cells (2S) LiPo Case Size:   26.5mm W x 46.5mm D x 22mm H Weight:   33 Grams Motor Limit:   10-turns* On Resistance (@Trans):   0.008 Ohms Reverse Delay:   None BEC Voltage:   6.0V DC Power Wire:   16 Gauge / 40mm Input Harness Wire:   26 Gauge / 130mm Motor Wires:   26 Gauge / 130mm Transistor Type:   MOSFET Low Voltage Detection:   2-Stage indicators, switchable (on and off) PWM Frequency:   2300 Hz Thermal Protection:   Thermal shutdown Profile selection:   Sport Mode: 100% FWD, 100% brakes, 100% REV Race Mode: 100% FWD, 100% brakes, no REV Training Mode:50% FWD, 100% brakes, 50% REV Single-button setup:   Yes, Traxxas EZ-Set

Click here for more Information

Manual

Part List

Box Panels - Part I

Box Panels - Part II

Watch A Video of This Model
