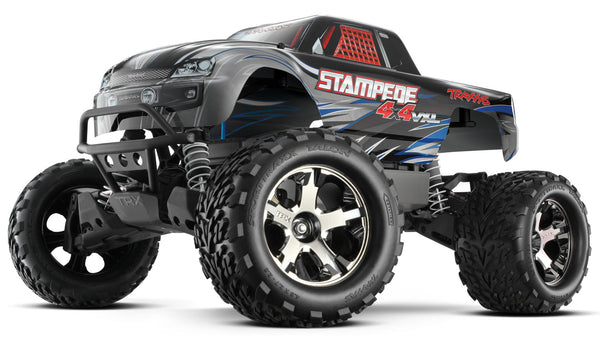

Traxxas 1/10 Scale Stampede 4X4 VXL 4WD Brushless Monster Truck - 6708L

About Traxxas 1/10 Scale Stampede 4X4 VXL 4WD Brushless Monster Truck - 6708L

STAMPEDE 4X4 VXL 1/10 Scale Brushless High-Performance Monster Truck!
Now Includes Power Cell LiPo Battery and LiPo Balance Charger!

• TQi 2.4GHz Radio System
• America’s Most Popular Monster Truck Now 4X4!
• Traxxas Power Cell LiPo Battery and LiPo Balance Charger Included!
• Waterproof Electronics for All-Weather Driving Excitement
• Extreme Brushless Power For a Top Speed of 60+mph!



Powered by Passion

We take our monster trucks seriously at Traxxas, and the all-new Stampede 4X4 VXL is engineered like no other to turn extreme power into extreme monster truck fun! The efficient, low-mass drivetrain is totally optimized for the brutal torque of Velineon brushless power, and following the legacy of the Stampede name, this 4X4 is overbuilt and Traxxas Tough to withstand all the 4-wheel drive monster mayhem you can dish out. The patented adjustable wheelie bar is required equipment as Stampede 4X4 launches hard, sending the front wheels soaring for the sky. You’re in full control with the new Traxxas TQi 2.4GHz radio system and the superior handling of fully independent suspension and smooth bellcrank steering. The Velineon Brushless Power System and included Traxxas Power Cell 7.4V 4000mAh LiPo battery combine to unleash 35+mph, right out of the box. Install a 3S LiPo pack, and Stampede 4X4 shatters the speedometer with 60+mph speed! It’s brushless done the Traxxas way: brutally fast and easy to use. Just plug it in and switch it on to feed your need for extreme horsepower.

All-New Chassis Optimized for Monster Fun

Stampede 4X4 is built on the proven performance of the advanced shaft-driven 4WD system and innovative modular design of the award-winning Slash 4X4. The new chassis fully integrates the electronics and battery compartment for an efficient and compact layout, and maintains the high center ground clearance that gives Stampede its monster stance and high-riding look. The extra clearance drastically increases the offroad versatility that allows you to tackle rougher terrain and bigger obstacles. The Stampede 4X4 feels planted and secure at speed, even on pavement and in other high-grip conditions. Stampede 4X4 is 100% monster truck, but it handles like a racing machine!

Power Cell LiPo and Balance Charger

Designed from the start for high-voltage, high-capacity LiPo packs, Traxxas’ Stampede 4X4 now includes a genuine Traxxas Power Cell LiPo battey—the only LiPos certified to deliver the full performance potential of Traxxas’ VXL brushless models. The Stampede 4X4 includes a 4000mAh 7.4-volt Power Cell pack. Stampede 4X4 arrives with Low Voltage Detection activated to assure maximum battery life and prevent over-discharging.

Charging care is just as important to LiPo life and performance, so a 2-Cell / 3-Cell LiPo Balance charger is also included. Just plug the battery’s balance plug into the charger and you’re on the way to another run—no programming or settings required. Every time the pack is charged, the cells are charged individually to precisely balance voltage for optimum performance, run time, and cycle life. Experience the ultimate in electric horsepower with the only models designed for LiPo power from the start, and genuine Power Cell LiPo technology on board.

Proven Velineon Brushless Power

Stampede 4X4’s Traxxas Velineon Brushless Power system defines a new generation of outrageous electric power that doesn't know limitations and boundaries. Pour in the voltage and out comes the speed in tidal waves of force harnessed by precision throttle control. For the uninitiated, prepare yourself... the sheer brutal power combined with the Stampede 4X4's four-corner grip results in tire-melting acceleration and lightning fast speed. The Velineon 3s Brushless Power System features system components that work together as an optimized package, from the patented Traxxas High-Current connector to the custom-wound motor. It's engineered together from the start to deliver the ultimate in efficiency, speed, and run-time along with precision throttle response and refined control. It's brushless performance the Traxxas way: wicked fast and easy to use. Just plug it in and it works, no special knowledge or programming skills required.



Ultra Efficient Shaft-Driven 4WD

Stampede 4X4 uses just three gear meshes to drive all four wheels, eliminating the need for a multi-gear transmission. The highly efficient drivetrain spins effortlessly on rubber-sealed ball bearings, and is integrated seamlessly into the unique chassis for optimum performance and easy maintenance. The center driveshaft is formed from extruded aluminum. There are no dogbones to wear, no drive cups to wobble. The extrusion process allows the shaft to be hollow and lightweight with internal splines that fit directly and securely onto the input shafts of the front and rear drive assemblies. The shaft runs perfectly straight and true and offers superior durability. Traxxas engineers highlighted this important innovation with vivid blue anodizing and a laser-etched Traxxas logo. A clear cover shows off the high-tech look while keeping dirt and debris away from the shaft.



The World's Most Advanced Ready-To-Race Radio System

Stampede 4X4 is equipped with the world's most advanced Ready-To-Race radio system. The all-new Traxxas TQi arrives with a full complement of tuning features and offers the unbeatable convenience of "no channels, no crystals" 2.4Ghz technology—but that's just the beginning. Automatic model recognition instantly recalls your settings for up to 30 Traxxas Link-enabled models. Just switch on and drive, no naming or "model memory" settings required. Power up the transmitter and the model you want to drive, and the settings for that model are dialed in immediately! The new TQi 2.4GHz transmitter is fully adjustable: steering and throttle end points can be set precisely, and the Multi-Function knob can be programmed to control Steering Sensitivity (Expo), Throttle Sensitivity (Expo), Steering Percentage (Dual Rate), Braking Percentage (Dual Rate), or Throttle Trim. TQi's ergonomic case design provides all-day driving comfort, and the unique internal antenna contributes to its sleek, modern look.

TQi Docking Base Compatible

The TQi's most important new feature may already be in your pocket. The TQi can be equipped with an optional Docking Base (#6510) that turns your iPhone or iPod touch (sold separately) into a powerful tuning tool for your Traxxas model. The full-color display combines with the free Traxxas Link App (on the App Store) to deliver an intuitive, high-definition, full-color graphical user interface that unlocks the mysteries of optimizing your radio system for ultimate vehicle control. Traxxas Link also opens the door to telemetry capability when you add optional sensors to your model. Click on one of the following links to learn more about the ground-breaking TQi radio system, TQi Docking Base, and the Traxxas Link Application.

Sealed Electronics Extend Your Driving Fun

Only Traxxas lets you experience brushless-powered 4WD excitement year-round, no matter what mother nature has to offer. Water, mud, and snow don't slow down Stampede 4X4; its electronic speed control, receiver box, and high-torque digital steering servo are all waterproof for no-worry fun in wet conditions that send other trucks running for cover. Drive Stampede 4X4 where you want, when you want—the only limit is your imagination.

100% Fully Assembled and Ready-To-Race

Stampede 4X4 comes fully-assembled and Ready-To-Race with the TQi 2.4GHz radio system installed and adjusted, Velineon brushless power system, a painted and decaled body, pre-glued tires, and detailed instructions. Traxxas backs Stampede 4X4 and all of our products with top-notch support that is second to none. A staff of skilled representatives is on-hand to answer your questions via phone, website, or e-mail. Unmatched parts support allows Stampede 4X4 to be serviced with parts and support from thousands of hobby dealers worldwide. Your investment is also protected by the Traxxas Lifetime Electronics Warranty. Traxxas goes the extra mile to ensure that your R/C experience is easy and fun (and fast!). Follow the details link at left to go in depth on all the Stampede 4X4 performance benefits, and also be sure to check out the videos page to see Stampede 4X4 in action for yourself.

QUICK FEATURES ON STAMPEDE 4X4 VXL (#6708L)

• NEW Traxxas Power Cell LiPo Battery Pack included!
• New chassis designed specifically for Stampede 4X4
• Dual-bellcrank steering with integrated servo saver
• Unique Shock Guards protect the suspension arms and shocks
• New Heavy-Duty driveshafts
• Velineon Brushless Power System
• 4-Position Wheelie Bar
• Revo-spec sealed, silicone-filled differentials
• TQi 2.4GHz Transmitter and Receiver
• Waterproof Electronics
• Digital high-torque steering waterproof servo
• Rubber-sealed Ball Bearings

MODEL 6708L: Fully assembled, Ready-To-Race, TQi 2.4GHz Radio System, Velineon Brushless Power System, Power Cell 4000mAh 2-cell LiPo battery, LiPo Balance Charger, and ProGraphix painted body.

Detalis

Innovative New Chassis

The innovation designed into the Stampede 4X4 begins with an all-new chassis. Extreme Brushless Power and 4WD requires a chassis that won't flex under load for arrow-straight, hard-charging acceleration. The new chassis fully integrates the electronics and battery compartment for an efficient and compact layout, and maintains the high center ground clearance that gives Stampede 4X4 its monster stance and high-riding look. The extra clearance dramatically increases the offroad versatility that allows you to tackle rough terrain and large obstacles. The Stampede 4X4 feels planted and secure at speed, even on pavement and in other high-grip conditions. Stampede 4X4 is 100% monster truck, but it handles like a racing machine! Underneath, the chassis is ultra-smooth to reduce drag and prevent snags driving through brush.

Modular Simplicity

Old designs made servicing of 4-wheel drive vehicles cumbersome and time-consuming. Traxxas has a better way. Modular design allows the entire front section to be removed with just 5 screws, and the rear assembly with just 4 screws. In less than a minute using a power screwdriver, you have full access for easy service and adjustment.

Power Cell LiPo Battery

Designed from the start for high-voltage, high-capacity LiPo packs, Traxxas’ Stampede 4X4 now includes a genuine Traxxas Power Cell LiPo battey—the only LiPos certified to deliver the full performance potential of Traxxas’ VXL brushless models. The Stampede 4X4 includes a 4000mAh 7.4-volt Power Cell pack. Stampede 4X4 arrives with Low Voltage Detection activated to assure maximum battery life and prevent over-discharging.

LiPo Balance Charger

Charging care is just as important to LiPo life and performance, so a 2-Cell / 3-Cell LiPo Balance charger is also included. Just plug the battery’s balance plug into the charger and you’re on the way to another run—no programming or settings required. Every time the pack is charged, the cells are charged individually to precisely balance voltage for optimum performance, run time, and cycle life. Experience the ultimate in electric horsepower with the only models designed for LiPo power from the start, and genuine Power Cell LiPo technology on board.

Integrated Shock Guards

Stampede is legendary for knock-around durability, and Stampede 4X4 follows suit with its Traxxas-tough construction. New Shock Guards attach to the front and rear suspension arms and shield the lower ends of the shocks, preventing spring perches from being knocked loose and warding off impact damage while giving Stampede 4X4 a high-tech look.

The World's Most Advanced Ready-To-Race Radio System

Total Control. Traxxas models deserve the world's most advanced Ready-To-Race radio system. The radio system after all is the sole connection between the driver and machine. It has to be precise, comfortable, powerful, and reliable. The all-new Traxxas TQi radio system arrives with a full compliment of tuning features; long-range, high-output, 2.4GHz signal, and proven Traxxas reliability for rock-solid performance. It's so advanced; it doesn't even need an external antenna. However, the most important new feature may already be in your pocket. The TQi can be equipped with an optional Docking Base (#6510) that turns your iPhone or iPod touch into a powerful tuning tool for your Traxxas model. The full-color display combines with the Traxxas Link App to deliver an intuitive, high-definition, full-color graphical user interface that unlocks the mysteries of optimizing your radio system for ultimate vehicle control.

5-channel Micro Receiver with Fail-Safe Security

The TQi 2.4GHz micro receiver fits easily into any vehicle, and features dual channel-1 outputs for easy installation in vehicles with dual steering servos—no Y-harness necessary! The integrated LINK button makes it fast and easy to bind the receiver, and the two-color LED indicates power-on and bind status for fool-proof control and convenience. Traxxas Link Model Memory allows the receiver to recognize up to thirty TQi 2.4Ghz Traxxas Link enabled transmitters—just switch on and drive. In the event of signal loss due to an accidental switch-off or depleted batteries, the receiver will automatically return the throttle to neutral and hold the last commanded steering position. The Fail Safe programming is built-in and does not need to be set or activated. Three telemetry ports are incorporated in the 5-channel receiver to allow real-time data to be transmitted from your Traxxas model to the TQi transmitter.

Black-Chrome All-Star Wheels

The Stampede 4X4’s 2.8" All-Star black-chrome wheels feature a horizontal bead configuration that holds the tire to the rim even under extreme rpm. Performance-designed foam inserts are standard, and the tires come pre-glued from the factory to get you rolling right out of the box.

Talon 2.8" Multi-Terrain Tires

The advanced Talon tread pattern is the same proven design used to provide excellent traction on our highest-performing E-Revo Brushless Edition! The soft-compound rubber hooks up for maximum acceleration and great grip on a wide variety of surfaces, including dirt, grass, pavement, and rocks.

Adjustable Wheelie Bar

Stampede 4X4 comes equipped with the unique Traxxas adjustable wheelie bar. The patented wheelie bar features four position adjustments for wheelie control or wheelies on command. No tools are required to set the ‘bar for sky-high wheelstands or road-hugging launches—just snap the wheelie bar into the position you prefer.

Sealed Watertight Receiver Box

Stampede 4X4’s receiver is fully enclosed for protection from the elements. The antenna and servo wires route neatly through a special watertight seal, and a custom blue O-ring seals the receiver box to protect the receiver from water. The receiver can be removed for service and aftermarket receivers can be installed without losing the sealing properties of the box. Patent pending.

• Innovative waterproof design
• Three Programmable
  Drive Profiles:
  • Sport Mode - Forward / Brake / Reverse
  • Race Mode - Forward / Brake
  • Training Mode - 50% Forward / Brake / 50% Reverse (patent pending)
• Integrated on/off switch
• Traxxas EZ-Set one-button setup
• Large heat sink
• High-efficiency MOSFET transistors
• Auto-detects brushed, brushless, and sensored brushless motors
• Built-in two-stage low-voltage detection for LiPo batteries.
• NiCad and NiMH battery packs: 4-9 cells (4.8 to 10.8 volts)
• LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)

• Ultra high-temperature sintered Neodymium magnets
• Optimized for power and efficiency in 1/10th scale vehicles
• Consistent, high-power output, run after run
• Low-maintenance, unique Traxxas design
• Efficient, high-speed ball bearings
• Precision-balanced rotor
• Accessible solder tabs
• Protective end cap
• 10-Turn, 3500kV
• Rebuildable
• Hex hardware
• Brilliant blue-anodizing finish
• Silicon steel laminations
• Delivers more power than comparable brushed motors

Traxxas High-Current Connectors

The Velineon Brushless Power System comes equipped with the Traxxas High-Current Connector. Designed to handle high-current applications, the Traxxas Connector effortlessly funnels the battery's total power to the electronics, keeping things running cool and at full capacity.

Maxx Cable 12-Gauge Wire

This super-flexible, high-current, low-resistance 12-gauge, wire acts like a series of giant pipes, flowing energy in and out of the electronic speed control. The Traxxas Connector combined with Maxx cable is a better engineered solution for extracting all the power your battery has to give.

Oil-Filled Ultra Shocks

High-speed off-road action requires rugged, responsive shocks that can take abuse. Traxxas Ultra Shocks are proven tough as stock equipment for Traxxas Maxx trucks. The high-volume body yields large oil capacity, and a silicone bladder separates oil from air within the shock for consistent damping action, even during all-day off-road sessions. Dual X-ring seals give super-smooth performance without weeping or leaking, and Ultra Shocks are fully tunable with a wide range of oils, springs, and pistons.

Digital High-Torque Waterproof Steering Servo

A monster truck needs a powerful steering servo for responsive performance. A Traxxas digital high-torque, ball bearing steering servo (#2075) comes standard for precision control, quick response, and unmatched torque—all in a waterproof case. With 125 oz-in torque and a 0.16-second transit speed, it gives Stampede 4X4 ample steering power for responsive, precise control.

Extruded Aluminum Driveshaft

Stampede 4X4's center driveshaft is formed from extruded aluminum. There are no dogbones to wear, no drive cups to wobble. The extrusion process allows the shaft to be hollow and lightweight with internal splines that fit directly and securely onto the input shafts of the front and rear drive assemblies. The shaft runs perfectly straight and true and offers superior durability. Traxxas engineers highlighted this important innovation with vivid blue anodizing and a laser-etched Traxxas logo, then protected it with a clear cover that shows off the high-tech look while keeping dirt and debris away from the shaft.

Single-Screw Motor Access

Inspired by the innovative E-Revo, Stampede 4X4 features a unique mount that holds the Velineon 3500 motor securely yet releases instantly with just one screw. Gear-mesh adjustments are fast and easy and the motor can be removed in just seconds.

Revo-Spec Differentials

Race-proven in the 8-time National Champion Revo, Stampede 4X4's differentials represent the state of the art in power handling and efficiency. Precision silicone gaskets and X-ring seals allow the diffs to be tuned for specific running conditions by varying the viscosity of the fluid inside them. Differential access for tuning is quick and easy. Just remove the front or rear cover and the entire differential slides right out. The Stampede 4X4 let's you focus on having fun driving at the racetrack instead of being chained to the workbench scrambling through complex assemblies.

New Heavy-Duty Driveshafts

Stampede 4X4's telescoping, universal-joint driveshafts may look familiar but they have evolved for increased strength and articulation. Traxxas U-joint driveshafts allow for maximum suspension movement resulting in longer travel and tighter turning. Extra material and design tweaks greatly increase torque handling. The shafts can even be used to upgrade the 2WD Stampede and other Traxxas models!

Revo-Spec Torque-Control Slipper Clutch

Another Traxxas exclusive, Stampede 4X4's patented slipper clutch design uses special semi-metallic friction material and finned aluminum alloy pressure plates to dissipate heat and provide consistent traction control. The slipper is easily adjusted without disassembly or removal, and the unique 3-pad design is proven rugged in Traxxas' most powerful electric and nitro vehicles. It's the perfect compliment to Velineon brushless power and 4WD, offering the ultimate in traction control.

Heavy-Duty 32-Pitch Gears

Extreme brushless horsepower is never an afterthought at Traxxas. The Stampede 4X4 driveline is built to handle power for today and accommodate future power upgrades down the road. The spur gear features rugged 0.8 module/32-pitch teeth for total reliability no matter how much power you pour on.

Long-Travel Suspension

Stampede 4X4 has huge amounts of seemingly bottomless, ultra-plush suspension travel for suspension action that swallows up jumps and delivers incredible rough-track control. The fully-optimized front axle carrier is a result of computer modeling that allowed engineers to design for maximum articulation without binding or interference. Tight steering response is always there, even at the extreme ranges of the suspension travel. Double-shear tie rods and camber links simply can't pop off, so you always stay in control. Robust construction wards off crash damage, and oversized 10x15mm inboard bearings and 5x11mm outboard bearings are incredibly durable and smooth.

Optimum-Geometry Steering with Integrated Servo Saver

No part of Stampede 4X4 was overlooked in the quest for durability, precision, and performance. The new dual-bellcrank design pivots on rubber-sealed ball bearings for smooth action in the harshest conditions, and an integrated cam-type servo saver protects the servo gears from crash impacts without sacrificing steering precision.

Heavy-Duty 4mm Turnbuckles

Stampede 4X4’s turnbuckles have broad flats that make it easy to set toe-in and camber. The tough steel construction is ultra durable and the captured rod ends won't pop apart during rigorous off-road pounding.

ProGraphix Bodies

Stampede 4X4’s fully trimmed and painted ProGraphix body is available in red, blue, black, and silver. Decals are also applied to save you time and get you driving just minutes out of the box. Traxxas’ ProGraphix bodies are the hottest looking bodies around and are only available on Traxxas Ready-To-Race models.

Hex Hardware

Pro-quality, high-grade, metric hex-drive hardware is used throughout for extra strength, and easy maintenance and repair. The black-oxide rust-resistant finish provides a high tech-look and feel.

Rubber-Sealed Ball Bearings

Precision 5x11mm rubber-sealed bearings offer the ultimate in super low-friction performance and maximum protection in dirty environments. They are used in all exposed locations on the truck and are virtually maintenance free.

Features

• Powered by the Velineon Brushless Power System
• Stampede 4X4 VXL reaches speeds in excess of 60mph!*
• Traxxas High-Current Connector allows high-capacity battery packs to deliver maximum voltage to the Velineon Brushless Power System
• Exclusive waterproof electronics extend brushless power and performance to water, mud, and snow
• Maxx Cable 12-gauge wire
• Velineon VXL-3s Electronic Speed Control
  • LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
  • Auto-detects brushed, sensorless and sensored brushless motors
  • Sport Mode – Forward / Brake / Reverse
  • Race Mode – Forward / Brake
  • Training Mode - 50% Forward / Brake / 50% Reverse (patent pending)
• Velineon 3500 Brushless Motor
  • Consistent, high-power output, run after run
  • Low-maintenance, unique Traxxas design
  • Efficient, high-speed ball bearings
  • Precision-balanced rotor
• NEW TQi 2.4GHz transmitter
  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
  • Multi-Function knob
  • Adjustable steering and throttle percentage (dual rates)
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle end points
  • High 13ms frame rate and near-zero latency for responsive control
  • TQi 2.4GHz 5-channel micro receiver (#6518) with fail-safe security and integrated telemetry ports
  • Compatible with optional TQi Docking Base (#6510) to access full Traxxas Link app functionality
• Heavy-duty 4mm steel turnbuckles and captured rod ends
• Single-screw motor access makes gear-mesh adjustments fast and easy and the motor can be removed in just seconds
• Modular simplicity, fiber-composite monocoque chassis
• Speed control and receiver are securely fastened to chassis
• Integrated Personal Transponder Mount
• Digital high-torque Traxxas #2075 waterproof steering servo
• Waterproof, o-ring sealed receiver box
• Sealed, silicone-filled differentials
• Revo-Spec Torque-Control slipper clutch system
• Fully adjustable oil-filled Ultra Shocks with X-ring technology
• White powder coated shock springs feature a responsive spring rate
• Telescoping universal-joint driveshafts
• Rubber-sealed ball bearings
• Black-chrome All-Star 2.8" wheels
• Talon multi-terrain tires with high-performance foam inserts
• ProGraphix painted body
• Full line of genuine Traxxas accessories available
• Stampede 4X4 VXL is backed by unparalleled Traxxas support and parts availability


MODEL 6708L: Fully assembled, Ready-To-Race, TQi 2.4GHz Radio System, Velineon Brushless Power System, Power Cell 4000mAh 2-cell LiPo battery, LiPo Balance Charger, and ProGraphix painted body.

Specifiaction

STAMPEDE 4X4 VXL (#6708L) SPECS

STAMPEDE 4X4 VXL SPEED & SKILL LEVEL CHART

VXL-3s ESC SPECIFICATIONS

MODEL 6708L: Fully assembled, Ready-To-Race, TQi 2.4GHz Radio System, Velineon Brushless Power System, Power Cell 4000mAh 2-cell LiPo battery, LiPo Balance Charger, and ProGraphix painted body.
