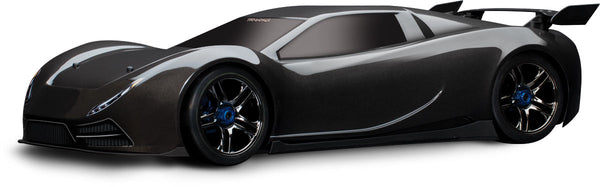

Traxxas 1/7 Scale XO-1 100+ MPH 4WD Electric Super Car - 6407

About Traxxas 1/7 Scale XO-1 100+ MPH 4WD Electric Super Car - 6407

Experts Only!

The World's Fastest Ready-To-Race Supercar 0-100mph in under 5 seconds!

Video

• 100+mph Out of the Box!
• NEW Castle Creations Mamba Monster Extreme Speed Control
• NEW Traxxas Big Block Brushless Motor, Powered by Castle
• NEW TQi 2.4GHz Radio System with Docking Base
• NEW Integrated Speed, RPM, temperature, and voltage Telemetry System
• Factory Equipped with two Traxxas Power Cell 3S 5000mAh LiPo batteries
• All Wheel Drive

The Art of Speed

Traxxas is The Fastest Name in Radio Control. For over 25 years, we have made it our mission to innovate. To lead. To find the next level of performance and capability. We are driven by a passion for speed and power, and now Traxxas has redefined the meaning of both. State-of-the-art technology. Cutting edge design. A total focus on quality and precision. All have been distilled into one vehicle that could only come from Traxxas. 0-60 in 2.3 seconds. 0-100 in 4.92 seconds. Top speed over 100mph! Simply put, the XO-1 is the world's fastest Ready-To-Raceradio controlled supercar.

Traxxas Muscle, Powered by Castle

When the goal is 100+mph, "off the shelf" is out of the question. Traxxas partnered with Castle Creations to develop the Mamba Monster Extreme power system specifically for the unique power requirements of the XO-1. The proven Mamba Monster Extreme System has been enhanced for higher output when used with 6S LiPo power. From its integrated capacitor bank to the proprietary software created just for XO-1, the Mamba Monster Extreme speed control represents the state-of-the-art in big-volt power delivery. The custom Traxxas Big Block brushless motor invites "cubic inches" to the party for massive acceleration and true supercar performance with the largest brushless motor ever offered in a Ready-To-Race model.

The Next Generation of Traxxas 2.4GHz Control

XO-1 is equipped with the world's most advanced Ready-To-Race radio system. The all-new Traxxas TQi radio system with Docking Base turns your iPhone or iPod touch into a powerful tuning tool. The device display combines with the Traxxas Link App to deliver an intuitive, high-definition, full-color graphical user interface that optimizes your radio system for ultimate vehicle control. Automatic model recognition instantly recalls your settings for up to 30 Traxxas Link-enabled models—just switch on and drive. This powerful App gives you complete control over the operation and tuning of XO-1 with an intuitive, high definition graphical user interface. Once you have created the perfect control settings for your model, you can save them as a profile that you can restore later, use on another model, or share with friends. Traxxas Link telemetry sensors transmit real-time data including speed, RPM, temperature, and battery voltage with stunning visuals. TQi Docking Base is compatible with iPhone3G/3gS/4/4S and iPod touch 2nd/3rd/4th generation.

Powerful Traxxas Link Application

Traxxas Link makes it easy to learn, understand, and access the powerful tuning options built into every Traxxas TQi radio system. Control your Drive Effects settings such as steering and throttle sensitivity; steering percentage; braking strength; and throttle trim by simply touching and dragging the sliders on the screen, or enabling the Multi-Function knob on the transmitter. Everything happens live, on-the-fly, giving you instant feedback on your changes.

Traxxas Link collects and records real-time telemetry data as you drive. The Traxxas Link dashboard comes to life showing you speed, battery voltage, RPM, and temperature. The application automatically detects and recognizes Traxxas Link sensors for easy set up and configuration. The dashboard is fully customizable with either dial or digital readout gauges. Up to nine gauges can be displayed at once. Set threshold warnings and log maximums, minimums, or averages. Use the recording function to document your dashboard view, with sound, so that you can keep your eyes on your driving and not miss a single apex. If you forget to record, simply touch Instant Replay anytime to capture the previous minute of fun and unexpected triumphs. The recordings can be named, saved,and shared with others.

Once you have created the perfect control settings for your model, you can save them as a profile that you can restore later, use on another model, or share with friends. If the track conditions change, simply re-tune your Drive Effects and save them as new profile. Only Traxxas Link makes pro-level transmitter tuning so fast, convenient, and easy.

EXTREME POWER FOR EXPERT DRIVERS

Skill Level 10 - Experts Only! Previous experience with high-power radio controlled models is required! These models are capable of extreme speed and acceleration! They carry our highest skill level rating (10) and are intended for expert drivers only. This model is not intended for use by children or minors younger than 16 years old. Individuals younger than 16 years old require responsible adult supervision during operation and maintenance.

Heavy-Duty Drivetrain

High performance must come with high durability. Traxxas delivers with a robust shaft-driven AWD (all-wheel drive) system proven in our most powerful vehicles and enhanced with new features for XO-1. Steel-gear, E-Revo-spec differentials feature reinforcing support bars to increase horsepower handling capability. The extruded aluminum center driveshaft engages the front and rear gearboxes directly, so there are no dogbones or drive cups to wobble or wear. New, telescoping steel-spline (SS) driveshafts with dual CV joints engage the wheels with track-tested, splined 17mm hex hubs. New fine pitch splined steel telescoping driveshafts handle 50% more torque than conventional shafts. Oversized 6X12mm ball bearings spin efficiently at high rpm, run after blistering run.

Patent-Pending Cush Drive

Developed specifically for the XO-1, the patent pending Cush Drive absorbs drivetrain shocks with a custom-shaped elastomer damper housed between the spur gear and the drive hub. Under extreme load (such as hard, high-traction acceleration), the elastomer flexes to dissipate shock without interrupting power flow. The result is instant acceleration with no wasted power.

Computer Optimized Aerodynamics

Developed with advanced modeling techniques, XO-1's stunning form has been shaped by pure function. The front splitter and canards, smooth undertray, rear diffuser and wing work in harmony to harness airflow and convert it to downforce while minimizing drag—critical to achieving 100+mph speeds. XO-1 is the first to deploy a fully developed and functional air-management system in a high-performance radio-control car. The aerodynamic components integrate seamlessly with the XO-1's low-slung, wide-stance body to distill style and speed into a pure expression of radio-control performance.

Ready-To-Race with Included Power Cell LiPos

"100+mph, right out of the box." That was the goal for XO-1, and Traxxas delivers with everything you need to hit triple digits—including a pair of Power Cell 3S LiPo batteries. Built with custom Traxxas cells and engineered specifically for the high power demands of Traxxas vehicles, Power Cell LiPo packs are fully equipped withTraxxas High Current connectors, Maxx Cable 12-gauge wire, and standard JST/XH balance plugs for long cycle life, maximum run time, and track-shredding punch.

XO-1 QUICK FEATURES

• 100+mph Out of the box!
• NEW Castle Mamba Monster Extreme Speed Control
• NEW Traxxas Big Block Brushless Motor
• NEW TQi 2.4GHz Radio System with Docking Base
• NEW Integrated speed, RPM, and voltage Telemetry System
• NEW Patent-pending Cush Drive
• Factory Equipped with Traxxas Power Cell 3S 5000mAh LiPo batteries
• Shaft-driven All Wheel Drive
• Machined 6061 Aluminum C-Hubs, Steering Knuckles, Axle Carriers, and Shock Towers
• Hard-anodized GTR Shocks
• Steel Splined (SS) dual-CV Driveshafts


100% Ready-To-Race

Traxxas backs XO-1 and all of their products with top-notch support that is second to none. A staff of skilled representatives is on-hand to answer your questions via phone, website, or email. Unmatched parts support allows XO-1 to be serviced with parts and support from thousands of hobby dealers worldwide. Your investment is also protected by the Traxxas Lifetime Electronics Warranty. Traxxas goes the extra mile to ensure that your R/C experience is easy and fun (and fast!). Follow the details link above to go in depth on all the XO-1 performance benefits and also be sure to check out the videos page to see XO-1 in action for yourself.

MODEL 6407: XO-1 Fully assembled, Ready-To-Race, with TQi 2.4GHz radio system with Traxxas Link model memory, Docking Base, Power Cell 3S 5000mAh LiPo batteries, Castle Mamba Monster Extreme Brushless Power System, and ProGraphix painted body.

Details

Castle Creations Mamba Monster Extreme Speed Control

When the goal is 100+mph, "off the shelf" is out of the question. Traxxas partnered with Castle Creations to develop the Mamba Monster Extreme power system specifically for the unique power requirements of the XO-1. The proven Mamba Monster system has been enhanced for higher output when used with 6S LiPo power. From its integrated capacitor bank to the proprietary software created just for XO-1, the Mamba Monster Extreme speed control represents the state-of-the-art in big-volt power delivery.

Traxxas Big Block Brushless Motor

The ultimate brushless powerhouse! Custom tuned for the XO-1, the Traxxas Big Block motor features a finned, heat-dissipating can, oversized premium-quality bearings, sintered Neodymium magnets, and superior electromagnetic design. The Big Block brushless motor invites "cubic inches" to the party for massive acceleration and true supercar performance with the largest brushless motor ever offered in a Ready-To-Race model.

Advanced TQi 2.4GHz Radio System with Docking Base

Traxxas models deserve the world's most advanced Ready-To-Race radio system. The radio system after all is the sole connection between the driver and machine. It has to be precise, comfortable, powerful, and reliable. The all-new Traxxas TQi radio system arrives with a full complement of tuning features; long-range, high-output, 2.4GHz signal, and proven Traxxas reliability for rock-solid performance. It's so advanced; it doesn't even need an external antenna. However, the most important new feature may already be in your pocket. The XO-1's TQi transmitter is equipped with an accessory Docking Base that turns your iPhone or iPod touch into a powerful tuning tool for your Traxxas model. The device display combines with the Traxxas Link App to deliver an intuitive, high-definition, full-color graphical user interface that unlocks the mysteries of optimizing your radio system for ultimate vehicle control.

Only Traxxas gives you the power to unlock the full potential of the new Traxxas TQi Radio System with Traxxas Link, the custom application that integrates your iPhone or iPod touch with the TQi transmitter. Gone are the clunky controls and blocky monochrome graphics of yesterday's radio systems. This powerful App gives you complete control over the operation and tuning of your Traxxas radio controlled model with an intuitive, high-definition graphical user interface. Install Traxxas Link telemetry sensors on the model, and Traxxas Link displays real-time data such as speed, RPM, temperature, and battery voltage with stunning graphics. Traxxas builds the world's fastest Ready-To-Race radio-controlled models, capable of speeds that exceed 100mph. That level of performance demands precision control. Traxxas Link gives you the tools for exacting adjustment and superior control while always keeping you informed on your model's status and speed.



Real-Time Telemetry

Traxxas Link collects and records real-time telemetry data as you drive. The Traxxas Link dashboard comes to life showing you speed, battery voltage, RPM, and temperature. The application automatically detects and recognizes Traxxas Link sensors for easy set up and configuration. The dashboard is fully customizable with either dial or digital readout gauges. Up to nine gauges can be displayed at once. Set threshold warnings and log maximums, minimums, or averages. Use the recording function to document your dashboard view, with sound, so that you can keep your eyes on your driving and not miss a single apex. If you forget to record, simply touch Instant Replay anytime to capture the previous minute of fun and unexpected triumphs. The recordings can be named, saved, and shared with others.

Intuitive iPhone and iPod touch Interface

Traxxas Link makes it easy to learn, understand, and access the powerful tuning options built into every Traxxas TQi radio system. Control your Drive Effects settings such as steering and throttle sensitivity; steering percentage; braking strength; and throttle trim by simply touching and dragging the sliders on the screen, or enabling the Multi-Function knob on the transmitter. Everything happens live, on-the-fly, giving you instant feedback on your changes.

Extruded Aluminum Driveshaft

XO-1's center driveshaft is formed from extruded aluminum. There are no dogbones to wear, no drive cups to wobble. The extrusion process allows the shaft to be hollow and lightweight with internal splines that fit directly and securely onto the input shafts of the front and rear drive assemblies. The shaft runs perfectly straight and true and offers superior durability. Traxxas engineers highlighted this important innovation with vivid blue anodizing and a laser-etched Traxxas logo.



Impressive 1/7 Scale Size

At a full 27 inches long and 12 inches wide, XO-1 is a commanding presence on the road. Its extra-large 'footprint' improves stability, increases traction, tolerates road imperfections, and delivers high-speed handling that no 1/10 'touring car' can match.

Revo-Spec Differentials

Race-proven in the 8-time National Champion Revo, XO-1's differentials represent the state of the art in power handling and efficiency. Precision silicone gaskets and X-ring seals allow the diffs to be tuned for specific running conditions by varying the viscosity of the fluid inside them. Reinforcing bars within the differentials increase strength to withstand XO-1's over-the-top power. Differential access for tuning is quick and easy. Just remove the front or rear cover and the entire differential slides right out.

Computer Optimized Aerodynamics

Developed with advanced modeling techniques, XO-1's stunning form has been shaped by pure function. The front splitter and canards, smooth undertray, rear diffuser and wing work in harmony to harness airflow and convert it to downforce while minimizing drag—critical to achieving 100+mph speeds. XO-1 is the first to deploy a fully developed and functional air-management system in a high-performance radio-control car.

Aggressive Supercar Styling

XO-1's advanced aerodynamic components are integrated into a unique body developed specifically for high-speed stability and increased downforce, with a powerful, wide-track look. The body is molded in durable 1mm polycarbonate and features a metallic finish available in four colors. The durable, injection-molded rear wing is mounted solidly to transfer downforce to the body and chassis.

Standard and High Downforce Splitters

XO-1 combines extreme high performance with sport driving versatility by including two splitters: the factory-installed standard splitter, and the canard-equipped High-Downforce splitter for 100+mph speed runs. The aggressive canards provide very high downforce to keep XO-1 locked to the pavement. The splitters are constructed of flexible plastic to resist impact damage, and the splitters and canards can be replaced individually in minutes.

Steel-Spline Dual CV Driveshafts

Developed specifically for XO-1, the new SS (steel spline) dual-CV driveshafts are stunning examples of high-strength, low-mass construction and Traxxas' attention to detail. The splined, nickel-plated shafts slide smoothly as the suspension is compressed, assuring efficient power transfer. The female half-shafts are machined and hardened steel with a durable black-oxide finish. The telescoping shafts handle much greater torque loads than conventional driveshafts. Flexible rubber boots protect the CV joints and splines from dirt and debris.

Heavy-Duty 17mm Hex Hubs

Proven tough by the Brushless Edition E-Maxx, E-Revo, and Summit, Traxxas' splined 17mm aluminum hex hubs are standard equipment on the XO-1 to make certain its considerable horsepower is transmitted directly to the road. The splined design is extra strong with unsurpassed torque handling to resist twist-out no matter how hard you launch the XO-1 off the line.

Heavy Duty Module 1 Gears

'Pitch' refers to a gear's tooth size—the smaller the number, the bigger the tooth. Electric cars typically use 48 pitch gears; 32 pitch is common for nitro. XO-1's gear teeth are the largest in the Traxxas line: Module 1, the equivalent of 25.4 pitch. In addition to having larger, more durable teeth, XO-1's gears are a full 8mm wide to spread drive loads over a greater area to extend wear and increase efficiency. Even the pinion is specialized, made of high-strength steel and developed specifically for the XO-1.

Patent-Pending Cush Drive

Developed specifically for the XO-1, the patent pending Cush Drive absorbs drivetrain shocks with a custom-shaped elastomer damper housed between the spur gear and the drive hub. Under extreme load (such as hard, high-traction acceleration), the elastomer flexes to dissipate shock without interrupting power flow. The result is instant acceleration with no wasted power.

Hard-anodized, PTFE-Coated GTR Shocks

State of the art in every way, XO-1's hard-anodized, PTFE-coated aluminum GTR shocks represent the pinnacle of performance, offering silky smooth damping and a serious factory-works look. Thanks to the extra tough hard-anodized finish, shock performance stays true and consistent for less maintenance and better handling, run after run. Titanium Nitride coated shock shafts slide past X-ring seals for virtually friction-free operation, incredibly responsive suspension action, and extra-long seal life. The durable titanium nitride finish offers durable, smooth, consistent performance.

Speed-Rated Belted Tires

Specially developed for high-speed use, XO-1's slick tires are the first to be rated for 100+mph. Zero-stretch belting reinforces the soft-compound rubber, and molded inserts support the tread. Black-chrome Split-Spoke wheels set off the 17mm blue-anodized nuts that secure them, and the wheels extra-wide tire mounting area assures 100mph reliability.

Scalable Battery Compartments

XO-1 can accommodate a variety of battery configurations and sizes with its unique, scalable battery compartments and quick-release hold-downs. The compartments' rear bulkhead can be positioned for 135mm and 155mm pack lengths. The hold-downs can be flipped to hold 23mm and 25mm pack heights. With the optional expansion clips, 38mm to 43mm tall packs can be installed. Removing and installing batteries is easy; just flex the latch open to release the pack, and snap the hold down into the latch to lock it into place.

3mm Aluminum Chassis

XO-1 relies on the proven strength of aluminum plate construction for its chassis. The 3mm 6061 aluminum upper and lower decks are rigid yet lightweight, and the lower plate acts as a heatsink for the power system. The aerodynamic components are fully integrated with the chassis in a combination of art and science that could only come from Traxxas.



Machined Aluminum Motor Mount

For maximum strength and enhanced motor cooling, XO-1 features a new machined-aluminum motor-mounting system. The 8mm thick aluminum resists flex and holds the motor tight under the highest loads. XO-1's high rpm and torque make proper gear mesh critical, so Traxxas engineers incorporated a unique adjustment screw into the mount to dial in the gear mesh with micro-precision.

Machined Aluminum Shock towers

XO-1 is factory equipped with machined aluminum shock towers to provide stiffness and strength fox maximum control. The rigid shock towers make sure the XO-1's GTR shocks work efficiently to absorb road imperfections and cornering loads. Vivid blue anodizing highlights the towers against XO-1's dark-anodized chassis and black parts.

High Strength Machined Aluminum C-Hubs

XO-1's artfully machined aluminum C-hubs are Traxxas Tough and feature carefully engineered steering and suspension geometry for track-ready performance. The brilliant-blue anodized finish, machined highlights, and the laser-etched TRX logos show off Traxxas' signature style.

Aluminum Steering Blocks

Precision-machined for total steering accuracy and bulletproof strength, Traxxas Aluminum Steering Blocks deliver razor-sharp handling and precise control at triple-digit speeds. Solid 6061 aluminum construction guarantees road-ready strength and stiffness. The blocks hold heavy-duty 6X12mm bearings selected just for XO-1.

Machined Aluminum Rear Hub Carriers

New Traxxas aluminum stub axle carriers add larger 6x12mm bearings to handle the high-rpm demand of a 100+mph supercar while maintaining the beautiful blue-anodized look of the machined axle carrier.

Ready-To-Race with Two Power Cell LiPo Battery Packs

"100+mph, right out of the box." That was the goal for XO-1, and Traxxas delivers with everything you need to hit triple digits—including a pair of Power Cell 3S LiPo batteries. Built with custom Traxxas cells and engineered specifically for the high power demands of Traxxas vehicles, Power Cell LiPo packs are fully equipped with oversized discharge tabs, Traxxas High Current connectors, Maxx Cable 12-gauge wire, and standard JST/XH balance plugs for long cycle life, maximum run time, and track-shredding punch. the only LiPo packs certified to give you the punch and on-demand power to reach the top speeds your Traxxas model is built to achieve.

Traxxas High-Current Connectors

The XO-1's brushless system comes equipped with two Traxxas High-Current Connectors. Designed to handle high-current applications, Traxxas Connectors effortlessly funnel the dual battery's total power to the electronics keeping things running cool and at full capacity.

Watertight Receiver Box

XO-1's receiver is fully enclosed for protection from the elements. The antenna and servo wires route neatly through a special watertight seal, and a custom blue O-ring seals the receiver box to protect the receiver from water. The receiver can be removed for service and aftermarket receivers can be installed without losing the sealing properties of the box. Patent pending.

Digital High-Torque Waterproof Steering Servo

A 100+mph supercar needs a powerful steering servo for responsive performance. The waterproof steering servo (#2075) uses O-ring seals to keep the fun going when things get wet. The Traxxas digital high-torque servo provides precise steering authority and speed for high-speed handling.

Dual-Bellcrank Steering With Integrated Servo Saver

XO-1's steering bellcranks feature optimized geometry and a cam-type servo-saver to protect the servo's gears from crash damage without compromising steering precision.

Hex Hardware

Pro-quality, high-grade, metric hex-drive hardware is used throughout for extra strength, and easy maintenance and repair. The black-oxide rust-resistant finish provides a high tech look and feel.

Rubber-Sealed Ball Bearings

Precision rubber-sealed bearings offer the ultimate in super low-friction performance and maximum protection in dusty environments. They are used in all exposed locations on the truck and are virtually maintenance free.

Heavy Duty 4mm Steel Turnbuckles

Factory fitted, heavy-duty steel turnbuckles allow camber and toe tuning. The XO-1 is completely adjustable right out of the box to fine tune handling agility and high-speed performance. Captured rod ends provide unmatched durability and they simply won't pop off.

MODEL 6407: XO-1 Fully assembled, Ready-To-Race, with TQi 2.4GHz radio system with Traxxas Link model memory, Docking Base, Power Cell 3S 5000mAh LiPo batteries, Castle Mamba Monster Extreme Brushless Power System, and ProGraphix painted body.

Traxxas Link Application

Traxxas Link App Now Available on the App Store with DTS-1 Support!
Requires iPhone (3G/3GS or newer) or iPod touch (2nd, 3rd, and 4th generations).

Only Traxxas gives you the power to unlock the full potential of the new Traxxas TQi Radio System with Traxxas Link, the custom application that integrates your iPhone or iPod touch with the TQi transmitter. Gone are the clunky controls and blocky monochrome graphics of yesterday's radio systems. This powerful App gives you complete control over the operation and tuning of your Traxxas radio controlled model with an intuitive, high-definition graphical user interface. Install Traxxas Link telemetry sensors on the model, and Traxxas Link displays real-time data such as speed, RPM, temperature, and battery voltage with stunning graphics. Traxxas builds the world's fastest Ready-To-Race radio-controlled models, capable of speeds that exceed 100mph. That level of performance demands precision control. Traxxas Link gives you the tools for exacting adjustment and superior control while always keeping you informed on your model's status and speed.

Available now in the Apple App Store, Traxxas Link offers exciting new features to exploit the full capabilities of the DTS-1 Drag Timing System. When combined with the DTS-1, Traxxas Link allows you to capture all the nuances of Pro drag racing competition. Traxxas Link will fill in your time slip with reaction time, elapsed time, and trap speed in actual miles per hour. Keep a run history on each of your models. Share time slips and setup race events with your friends. Dial in your ETs and any two cars can compete fairly, regardless of their top speeds! Race like the pros, using staging strategy to pressure your opponent. Only Traxxas makes drag racing so easy, accurate, fast, and fun!

• Available with DTS-1 Support
• Intuitive iPhone and iPod touch interface
• Customizable Dashboard
  • Dial or digital readout gauges
  • Set threshold warnings and log maximums, minimums, or averages
  • Review telemetry feedback via the dashboard recording function that includes sound
  • Instant replay feature captures the previous 60-seconds of dashboard activity
  • Recordings can be named and saved
  • See telemetry feedback from electric and nitro models for speed, temperature, and voltage
• Edit, save, and share drive profiles
• Visually manage an unlimited number of models with the Traxxas Link App and see:
  • Transmitter model history
  • Model names
  • Customizable settings
  • Profiles

Traxxas Link makes it easy to learn, understand, and access the powerful tuning options built into every Traxxas TQi radio system. Control your Drive Effect settings such as steering and throttle sensitivity; steering percentage; braking strength; and throttle trim by simply touching and dragging the sliders on the screen, or enabling the Multi-Function knob on the transmitter. With Traxxas Link, everything happens live, on-the-fly, giving you instant feedback on the changes you are making. Once you have created the perfect control settings for your model, save them as a profile that you can restore later, use on another model, or share with friends. If the track conditions change, simply re-tune your Drive Effects and save them as new profile.

Traxxas Link collects and records real-time telemetry data as you drive. When you equip your model with sensors, the Traxxas Link dashboard comes to life showing you speed, battery voltage, RPM, and temperature. The application automatically detects and recognizes Traxxas Link sensors for easy set up and configuration. The dashboard is fully customizable with either dial or digital readout gauges. Set threshold warnings and log maximums, minimums, or averages. Use the recording function to document your dashboard view, with sound, so that you can keep your eyes on your driving and not miss a single apex. If you forget to record, simply touch Instant Replay anytime to capture the previous minute of fun and unexpected triumphs. The recordings can be named and saved to compare, review, and share with friends.

Traxxas Link is also a handy tool for finding the hobby shop or Traxxas retailer closest to you and pinpointing them on a map. Access support tools, vehicle information, updates, built in contextual help and more.

Authentic NHRA-style Drag Racing CompetitionWith Traxxas Link and the DTS-1 Drag Timing System

Traxxas Link makes it simple to select the DTS-1's Staging and Tree modes and select one or both lanes. Tap the name fields to input each driver and Dial-In times for bracket racing. Touch Start Race and DTS-1 signals the drivers to enter the staging beams. It all happens right from your TQi transmitter with the easy-to-use Traxxas Link interface.

The DTS-1 captures the data from each race with millisecond accuracy for display in the Traxxas Link App. Race winner, Elapsed Time, and MPH are shown with digital precision. Share and Comment buttons make it easy to send results to friends, or attach comments to the results. Touch Show Timeslip and Traxxas Link reveals even more race data.

The Traxxas Link timeslip display replicates the paper timeslip you would collect at the "ET shack" after a run on a full-size drag strip. Elapsed time (ET), trap speed (MPH), Reaction Time (RT) and dial-in time (if used) are displayed along with the margin of victory. Driver name, lane choice, and race date are shown beneath the customizable track name. Traxxas Link and DTS-1 make it easy to organize and run exciting, competitive drag races quickly and easily in your driveway with friends or at the hobby store with a full field of competitors.  The Traxxas Link App with DTS-1 Support is now available on the App Store.

DTS-1 Setup and Diagnostics

Select Tree Mode (Spotsman or Pro) and Staging Mode (Pro, EZ. Hand), and activate Practice or Bracket racing mode with a touch. Pre-programmed distances for scale quarter-mile racing can be selected, or you can input your own custom distance.

Customize your DTS-1 with advanced settings that allow you to alter the amount of time DTS-1 allows for each staging mode, race timeout, even how long the screen displays results after each race. Traxxas Link makes it easy to set up the DTS-1 to race your way.

Traxxas Link's diagnostic screen confirms beam alignment, shows battery life in each console, displays laser temperature and even lets you know if the optional cooling fans are running. Troubleshooting is done for you, no guesswork involved.

Device Requirements

Traxxas Link is designed for iPhone 3G, iPhone 3GS, iPhone 4, iPhone 4S, and iPod touch 2nd, 3rd, and 4th generations. For full functionality, Traxxas Link requires a Traxxas TQi transmitter with Docking Base and a TQi receiver installed in the model. Telemetry functions require Traxxas telemetry sensors to be installed on your model.

Features

• XO-1 reaches speeds in excess of 100mph with the included accessories!
• 0-60 mph in 2.3 seconds and 0-100 mph in 4.9 seconds!
• 50+mph out of the box!
• Powered by the Castle Mamba Monster Extreme Power System
• Mamba Monster Extreme electronic speed control with integrated capacitor pack
• Exclusive Traxxas Big Block 1717 brushless motor (1650 Kv), Powered by Castle
• Computer optimized aerodynamics
  • Front splitter
    • Included accessory splitter accepts right and left canards for added high-speed stability
  • Smooth chassis underside maximizes aerodynamic efficiency
  • Left and right tunnels with incorporated NACA motor cooling duct
  • Rear diffuser
• Aerodynamic, sleek pre-painted body with functional rear wing
• Adjustable height body posts with pivoting body washers
• Splined Steel (SS) driveshafts
• Silicone dust boots
• Nickel plated/hardened steel shafts
• Oversized 6mm stub axles.
• Large 6x12mm rubber-sealed ball bearings
• Heavy-duty 17mm splined blue-anodized aluminum hex hubs and wheel nuts
• Sealed, silicone-filled limited slip differentials with 5mm output shafts
• Exclusive Traxxas Cush Drive system absorbs drivetrain shocks
• Stout 8mm thick Mod 1.0 (25.4 pitch) pinion and spur gears
  • Factory installed gearing: 14-tooth pinion gear and 46-tooth spur gear
  • Includes optional 100mph gearing: 34-tooth pinion gear and 46-tooth spur gear
• Dark titanium-anodized 3mm 6061-T6 aluminum upper and lower chassis plates
• Blue-anodized 6061-T6 aluminum motor mount
  • Precision gear mesh adjustment screw for quick and accurate gear mesh settings
• Blue-anodized 6061-T6 aluminum C-Hubs
• Blue-anodized 6061-T6 aluminum steering blocks
• Blue-anodized 6061-T6 aluminum rear hub carriers
• Blue-anodized 7075-T6 aluminum front and rear shock towers
• Blue-anodized 6061-T6 aluminum front and rear bulkhead tie bars
• Hard-anodized aluminum PTFE-coated GTR shocks, performance tuned with 1.6 rate blue springs
• Dual-bellcrank steering with integrated servo saver
• Specially engineered belted slick tires (1.7" wide front, 2" wide rear)
  • Speed rated (118+mph)
• Black-chrome Split-Spoke wheels
• Contoured, molded tire inserts
• Includes two 3-cell 5000mAh Power Cell LiPo battery packs
• TQi 2.4GHz High-Output radio system with Traxxas Link model memory and factory installed TQi Docking Base
  • Model memory and drive effects are accessible via the Traxxas Link Application for Apple iPhone or iPod touch
  • Factory installed TQi Docking Base connects the TQi transmitter with the powerful functionality of an iPhone or iPod touch
  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, "model selection" is not required.
  • Multi-Function knob
  • Adjustable steering and throttle percentage (dual rates)
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle end points
  • High 13ms frame rate and near-zero latency for responsive control
  • Telemetry enabled 5-channel micro receiver with dual channel-1 inputs
• Integrated telemetry sensors relay RPM, voltage, and temperature data to the TQi transmitter
• 2075 digital high-torque, ball bearing steering servo delivers 125 oz-in torque & 0.16-sec transit time
• Waterproof, o-ring sealed receiver box with integrated servo mount
• 100+mph requires:
  • Installing the included optional 34-tooth pinion gear and 46-tooth spur gear
  • Unlocking the electronic speed governor through the TQi radio utilizing an iPhone or iPod touch
• Scalable battery compartments from NiMH packs to brutal 6S LiPo power
  • Two selectable length options: 135mm and 155mm
  • Two selectable height configurations using the included hold-downs
  • Eight selectable height configurations using optional expansion kit

MODEL 6407: XO-1 Fully assembled, Ready-To-Race, with TQi 2.4GHz radio system with Traxxas Link model memory, Docking Base, Power Cell 3S 5000mAh LiPo batteries, Castle Mamba Monster Extreme Brushless Power System, and ProGraphix painted body.

Specification

XO-1 (#6407) SPECS

Length: 27 inches (686mm) Front Track: 11.61 inches (295mm) Rear Track: 11.81 inches (300mm) Center Ground Clearance: 0.59 inches (15mm) Weight: 8.6 lbs (3.9 kg) (w/o batteries) 10.3 lbs (4.67 kg) (with batteries) Height (overall): 5 inches (127.5mm) Wheelbase: 15.91 inches (404mm) Front Shock Length: 3.27 inches (83mm) Rear Shock Length: 3.39 inches (86mm) Front Tires (pre-glued): Belted Slick Front (4.29" x 1.7") Rear Tires (pre-glued): Belted Slick Rear (4.29" x 2") Front Wheels: 3.3" Split-Spoke (black-chrome) with 17mm splined hex Rear Wheels: 3.3" Split-Spoke (black-chrome) with 17mm splined hex Speed Control Type: Castle Mamba Monster Extreme Forward/Reverse/Brake Motor (electric): Traxxas Big Block Brushless (1650 Kv), Powered by Castle Transmission: Single-Speed Overall Drive Ratio: 9.36 (stock, out-of-box) Differential Type: Sealed Hardened Steel Bevel Gear Pitch: Module 1.0 Chassis Structure/Material: 3mm Plate, Dual Plane, 6061-T6 Aluminum Brake Type: Electronic Drive System: Shaft-Driven 4WD Steering: Bellcrank Radio System: TQi 2.4GHz Radio System with TQi Docking Base Top Speed: 100+mph  Skill Level: 10 Battery Tray Dimensions: 155mm x 50mm x 29mm (adjustable height and length) Included Batteries: Two Traxxas Power Cell LiPo Batteries (LiPo, 3-Cell 5,000 mAh) Required Batteries & Charger: 4 "AA" (transmitter) LiPo Battery Charger

CASTLE CREATIONS MAMBA MONSTER EXTREME ESC SPECS

Input voltage (cells): 18 NiCad/NiMH 6s LiPo (max: 25.2 volts) Case Size: 2.2"W x 1.9"D x 1.4"H Weight: 4.27 ounces (121 grams) On-Resistance­ (@Trans)–FWD/REV: 0.0003 ohms per phase Reverse Delay: Yes, with lockout Low Voltage Detection (LVD): Yes, programmable

MODEL 6407: XO-1 Fully assembled, Ready-To-Race, with TQi 2.4GHz radio system with Traxxas Link model memory, Docking Base, Power Cell 3S 5000mAh LiPo batteries, Castle Mamba Monster Extreme Brushless Power System, and ProGraphix painted body.

Click here for more Information

Manual

• 6407 Manual (XO-1)
• 6510 Manual/Instructions (TQi Docking Base)

Instructions

• Traxxas Power Cell Battery Application Guide (Counter Mat) (LiPo and NiMH)
• 4091 On-Board Temperature Meter Instructions (for TRX engines)

Parts List

Exploded Views

• 6407 Transmission Exploded Views (XO-1)
• 6407 Rear Exploded Views (XO-1)
• 6407 Front Exploded Views (XO-1)
• 6407 Driveshafts Exploded Views (XO-1)
• 6407 Chassis Exploded Views (XO-1)
• 6407 Body & Wing Exploded Views (XO-1)

Box Panels

Watch A Video of This Model

Video-1

Video-2
