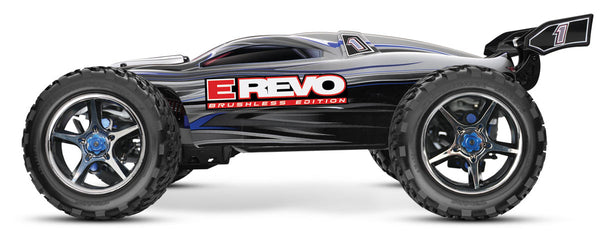

Traxxas 1/10 Scale EREVO 4WD Brushless Electric Monster Truck - 5608L

About Traxxas 1/10 Scale EREVO 4WD Brushless Electric Monster Truck - 5608L

The World's Most Powerful, Ready-To-Race Brushless Electric Monster Truck!

Now Includes Two 11.1-Volt Power Cell LiPo Battery Packs and LiPo Balance Chargers!

• Top Speed: 50+ with included Power Cell LiPo batteries, 65+mph All-Out!
• Includes two Power Cell 5000mAh 3-Cell LiPo battery packs
• Includes two LiPo Balance Chargers
• Equipped with Castle Creation's Mamba Monster Brushless System
• Traxxas TQi 2.4GHz Radio System with Docking Base
• Equipped with RPM/speed, motor temperature, and voltage telemetry sensors
• Up to 25.2 Volts of Massive Brushless Power
• State-of-the-Art Integrated Chassis Design
• Heavy-Duty 17mm Splined Aluminum Hex Hubs and Wheel Nuts
• Hard-Anodized PTFE-Coated Aluminum GTR Shocks

Built For Brushless

We built the E-Revo for 6-cell LiPo and brushless power right from the start. For other companies, brushless-ready means just making some nominal provisions for battery and motor installation and letting the aftermarket develop the upgrades necessary to make it survive. Not Traxxas. We heard the call for more power so E-Revo was tested tough for durability with brutal 6S LiPo power and intense custom-wound brushless motors. For the uninitiated, this extreme 65+mph motor and battery combination is ordinarily a predictable recipe for a box full of twisted and mangled parts. Not so with the E-Revo Brushless Edition. E-Revo's driveline has been engineered to endure the kind of horsepower and punishment that's possible with today's motor and battery technology. It looks factory because it is factory, complete with a separate motor plate for clean, low-slung single motor installation. E-Revo Brushless Edition includes Power Cell LiPo batteries for Ready-To-Race fun right out of the box!

Get tips in the PIT PASS section

Big-Volt Basher Article: Tuning The E-Revo Brushless Edition For Maximum Stability And Durability. It's in the Pit Pass Section!

Castle Creations Mamba Monster Brushless System

Built specifically to handle the rigors of large, power-hungry trucks, the Mamba Monster speed control is ready for 6S LiPo power with its massive 6.5mm gold-plated connectors, high-efficiency heatsink, integrated cooling fan and heavy-duty components. The speed control sends its power pulses to a Castle 2200Kv 75mm motor, designed specially for maximum performance and reliability with 6S LiPo power in torque-hungry applications. The aluminum motor can is machined to act as a massive heatsink, high-grade bearings deliver maximum efficiency, and high-strength Neodymium magnets give E-Revo Brushless Edition outrageous torque. To resist the twist, a beefy 5mm shaft transfers power to Brushless-Ready transmission.­Larger pinion gear/smaller spur gear combinations are for high-speed running on hard, smooth surfaces only.

Power Cell LiPo Batteries

Designed from the start for high-voltage, high-capacity LiPo packs, Traxxas' E-Revo Brushless Edition now includes a pair of genuine Traxxas Power Cell LiPo battey packs—the only LiPos certified to deliver the full performance potential of Traxxas' most versitile all-terrain truck. E-Revo Brushless includes two 5000mAh 3-cell Power Cell LiPo battery packs and it arrives with Low Voltage Detection activated to assure maximum battery life and prevent over-discharging.





LiPo Balance Chargers

Charging care is just as important to LiPo life and performance, so a pair of 2-Cell / 3-Cell LiPo Balance chargers are also included. Just plug the battery's balance plug into the charger and you're on the way to another run—no programming or settings required. Every time a pack is charged, the cells are charged individually to precisely balance voltage for optimum performance, run time, and cycle life. Experience the ultimate in electric horsepower with the only models designed for LiPo power from the start, and genuine Power Cell LiPo technology on board.



TQi: The Next Generation of Traxxas 2.4GHz Control

Powerful Traxxas Link Application - Available in the App Store.

Traxxas Link makes it easy to learn, understand, and access the powerful tuning options built into every Traxxas TQi radio system. Control your Drive Effects settings such as steering and throttle sensitivity; steering percentage; braking strength; and throttle trim by simply touching and dragging the sliders on the screen, or enabling the Multi-Function knob on the transmitter. Everything happens live, on-the-fly, giving you instant feedback on your changes.









Factory-Installed Telemetry Sensors

Factory-installed telemetry sensors enable the Traxxas Link app to collect and record real-time telemetry data as you drive. The Traxxas Link dashboard comes to life showing you speed, battery voltage, RPM, and motor temperature. The application automatically detects and recognizes Traxxas Link sensors for easy set up and configuration. The dashboard is fully customizable with either dial or digital readout gauges. Up to nine gauges can be displayed at once. Set threshold warnings and log maximums, minimums, or averages. Use the recording function to document your dashboard view, with sound, so that you can keep your eyes on your driving and not miss a single apex. If you forget to record, simply touch Instant Replay anytime to capture the previous minute of fun and unexpected triumphs. The recordings can be named, saved, and shared with others.





Sealed Watertight Receiver Box

E-Revo's receiver is fully enclosed for protection from the elements. The antenna and servo wires route neatly through a special watertight seal, and a custom blue O-ring seals the receiver box to protect the receiver from water. The receiver can be removed for service and aftermarket receivers can be installed without losing the sealing properties of the box. Patent pending.





Low-CG Chassis Design

Engineered by Traxxas, the ground-breaking molded E-Revo chassis sets a new benchmark for electric monster truck looks and performance. The E-Revo chassis combines art and function to deliver a lightweight, integrated, and rigid platform that maximizes strength and reduces weight. Scalable battery compartments accept a variety of NiMH and LiPo configurations to unlock E-Revo Brushless edition's power potential. By combining the battery compartments with the chassis design, the battery packs can sit low and close to the center of the truck, plus valuable chassis surface is freed up to accommodate the electronics for a clean layout. This keeps the center of gravity (CG) as low as possible and increases side-to-side agility by keeping most of the weight close to the center.

­

Battery Compartment Vents

Resembling the exhaust ducts of a turbine powered jet, the futuristic battery vents are securely mounted on the chassis. In addition to offering entrance and exit cooling, the oversized openings incorporate latches that insert into the battery door clasps. The battery compartment vents symbolize the sleek and high-tech image that places E-Revo in a class of its own.


Quick Release Battery Doors

The futuristic chassis design incorporates enclosed battery compartments into the sides of the chassis for an ultra-clean look even with the battery packs installed. Innovative quick release battery doors mount directly to the chassis, so there are no clips or hold downs to lose during battery swaps. The doors pivot down using a hinged design and dual clasps secure the tops of the battery doors for impact-proof security. To open the battery doors depress the latches and pull on the battery door tabs. To close the doors simply press on the door until the latches snap into place.

Adjustable Battery Compartments

Keyed, adjustable L-braces located inside the battery compartments allow the battery packs to be positioned in multiple incremental positions from front to rear for precise weight bias tuning. A top mounted, spring loaded clip holds battery packs securely at the lowest point to keep the CG as low as possible.


Dual-Servo Steering System

E-Revo takes a total system approach to eliminating the slow, mushy steering response typical on other monster trucks. Each servo is rated for 125 oz.-in. of torque, giving E-Revo a total of 250 oz.-in. of tire-turning twist to keep you in command no matter how tough the conditions.

Leading The Way

There is no other electric monster truck like E-Revo. It embodies the highest level of creativity in design and engineering skill to create the absolute best in monster truck performance. E-Revo is the benchmark that could only come from Traxxas, the leaders in innovation and design.

MODEL 5608L: Fully assembled, Ready-To-Race, with TQi 2.4GHz Radio System with Docking Base, factory-installed telemetry sensors, Castle Creations Mamba Monster Brushless System, two Power Cell 11.1-volt LiPo battery packs, two LiPo balance chargers, and ProGraphix painted body.

Details:

Advanced TQi 2.4GHz Radio System with Docking Base

Traxxas models deserve the world's most advanced Ready-To-Race radio system. The radio system after all is the sole connection between the driver and machine. It has to be precise, comfortable, powerful, and reliable. The all-new Traxxas TQi radio system arrives with a full complement of tuning features; long-range, high-output, 2.4GHz signal, and proven Traxxas reliability for rock-solid performance. It's so advanced; it doesn't even need an external antenna. However, the most important new feature may already be in your pocket. The E-Revo Brushless Edition's TQi transmitter is equipped with an accessory Docking Base that turns your iPhone or iPod touch into a powerful tuning tool for your Traxxas model. The device display combines with the Traxxas Link App to deliver an intuitive, high-definition, full-color graphical user interface that unlocks the mysteries of optimizing your radio system for ultimate vehicle control.







Only Traxxas gives you the power to unlock the full potential of the new Traxxas TQi Radio System with Traxxas Link, the custom application that integrates your iPhone or iPod touch with the TQi transmitter. Gone are the clunky controls and blocky monochrome graphics of yesterday's radio systems. This powerful App gives you complete control over the operation and tuning of your Traxxas radio controlled model with an intuitive, high-definition graphical user interface. The factory-installed Traxxas Link telemetry sensors combined with the Traxxas Link app display real-time data such as speed, RPM, temperature, and battery voltage with stunning graphics. Traxxas builds the world's fastest Ready-To-Race radio-controlled models, capable of speeds that exceed 100mph. That level of performance demands precision control. Traxxas Link gives you the tools for exacting adjustment and superior control while always keeping you informed on your model's status and speed.

Factory-Equipped Real-Time Telemetry

E-Revo Brushless Edition includes factory-installed telemetry sensors enabling Traxxas Link to collect and records real-time telemetry data as you drive. The Traxxas Link dashboard comes to life showing you speed, battery voltage, RPM, and temperature. The application automatically detects and recognizes Traxxas Link sensors for easy set up and configuration. The dashboard is fully customizable with either dial or digital readout gauges. Up to nine gauges can be displayed at once. Set threshold warnings and log maximums, minimums, or averages. Use the recording function to document your dashboard view, with sound, so that you can keep your eyes on your driving and not miss a single apex. If you forget to record, simply touch Instant Replay anytime to capture the previous minute of fun and unexpected triumphs. The recordings can be named, saved, and shared with others.



Intuitive iPhone and iPod touch Interface

Traxxas Link makes it easy to learn, understand, and access the powerful tuning options built into every Traxxas TQi radio system. Control your Drive Effects settings such as steering and throttle sensitivity; steering percentage; braking strength; and throttle trim by simply touching and dragging the sliders on the screen, or enabling the Multi-Function knob on the transmitter. Everything happens live, on-the-fly, giving you instant feedback on your changes.


5-channel Micro Receiver with Fail-Safe Security

The TQi 2.4GHz micro receiver fits easily into any vehicle, and features dual channel-1 outputs for easy installation in vehicles with dual steering servos—no Y-harness necessary! The integrated LINK button makes it fast and easy to bind the receiver, and the two-color LED indicates power-on and bind status for fool-proof control and convenience. Traxxas Link Model Memory allows the receiver to recognize up to thirty TQi 2.4Ghz Traxxas Link enabled transmitters—just switch on and drive. In the event of signal loss due to an accidental switch-off or depleted batteries, the receiver will automatically return the throttle to neutral and hold the last commanded steering position. The Fail Safe programming is built-in and does not need to be set or activated. Three telemetry ports are incorporated in the 5-channel receiver to allow real-time data to be transmitted from your Traxxas model to the TQi transmitter.


Factory Installed and Programmed Castle Creations Mamba Monster Electronic Speed Control System

This heavy-duty setup includes Castle's 2200kV motor for full 6S LiPo (25.2 volts max) combatibility, which gives E-Revo the ability to exceed 60mph with wheel-lifting torque and brutally quick acceleration. The Mamba Monster controller features a cooling fan and heavy-duty construction with oversized 6.5mm connectors to eliminate "thermaling," and the motor uses a 5mm rotor shaft for added durability.







Traxxas High-Current Connectors

The Mamba Monster Brushless system comes equipped with two new Traxxas High-Current Connectors. Designed to handle high-current applications, Traxxas Connectors effortlessly funnel the dual battery's total power to the electronics keeping things running cool and at full capacity.



Power Cell LiPo Batteries

Designed from the start for high-voltage, high-capacity LiPo packs, Traxxas’ E-Revo Brushless Edition now includes a pair of genuine Traxxas Power Cell LiPo battey packs—the only LiPos certified to deliver the full performance potential of Traxxas’ most versitile all-terrain truck. E-Revo Brushless includes two 5000mAh 3-cell Power Cell LiPo battery packs and it arrives with Low Voltage Detection activated to assure maximum battery life and prevent over-discharging.





LiPo Balance Chargers

Charging care is just as important to LiPo life and performance, so a pair of 2-Cell / 3-Cell LiPo Balance chargers are also included. Just plug the battery’s balance plug into the charger and you’re on the way to another run—no programming or settings required. Every time a pack is charged, the cells are charged individually to precisely balance voltage for optimum performance, run time, and cycle life. Experience the ultimate in electric horsepower with the only models designed for LiPo power from the start, and genuine Power Cell LiPo technology on board



Dual Digital High-Torque Waterproof Steering Servos

Waterproof digital steering servos (#2075) use O-ring seals to keep the fun going when things get wet. Twin digital high-torque servos provide the muscle to drive a single heavy-duty servo saver. Twin servos are lighter and more compact than a single large servo, and together they deliver unmatched monster steering response. The servo saver rides on ball bearings to keep the steering response smooth and precise.


Heavy-Duty 17mm Hex Hubs

E-Revo Brushless Edition's 17mm splined aluminum hex hubs make certain its considerable horsepower is delivered directly to the treads. The splined design is extra strong with unsurpassed torque handling to resist twist-out no matter how hard the 2200Kv motor pulls at the tires.



Power For Today And Beyond

E-Revo's battery compartments are scaleable for today's batteries and new generations of batteries to come. A clever internal stop is adjustable for battery length while an innovative leaf spring holds the battery pack secure. Choose your power from 6 or 7-cell NiMH packs all the way up to large-capacity LiPo (Lithium Polymer) Power.



Quick-Release Battery Doors

An Industry First! E-Revo uses an innovative solution for easy battery installation. Quick release battery doors snap open and closed in seconds for fast and easy battery installation. There are no clips to lose in the field and the potential for battery changes during pit stops opens the door for a whole new class of electric monster truck racing.



Battery Cooling Vents

The battery enclosures are vented with artfully designed intakes and exits to provide cooling air to the batteries. Nothing was overlooked in developing the ultimate electric monster truck platform.



Innovative Chassis Design

There is no more important single component than the chassis. The chassis construction and rigidity affect all aspects of how you interact with the model. From how it handles to how easily you can install batteries, the E-Revo chassis is both art, and engineering excellence.



Rigidity, Strength, Protection

The smooth center skid plate is by itself a sight to behold while it protects and strengthens. Critical driveline components are shielded from the elements for long life. A cover provides access for maintenance. Careful attention to design raises torsional rigidity to eliminate chassis flex which contributes to E-Revo's stunning handling precision.



Advanced Suspension Design

The superior technology designed into the Revo suspension provides capability, performance, and tuning functions that are so far advanced they set the Revo specification at the absolute pinnacle of monster truck design. Dig into the details and you will see how E-Revo lets you experience precision and performance that's simply not possible with conventional designs. With multiple design patents pending, nothing else even comes close.


ProGraphix Bodies

The E-Revo's fully trimmed and painted ProGraphix body is available in Red, Blue, Red-Black, and Blue-Black. Decals are also applied to save you time and get you driving just minutes out of the box. Traxxas' ProGraphix bodies are the hottest looking bodies around and are only available on Traxxas Ready-To-Race models.


The Most Suspension Travel

Revo architecture delivers the most suspension travel possible, tunable progressive damping rates, independent ride height adjustment, and the absolute highest level of control for any situation. The precision aluminum shocks are rigidly mounted to the chassis, protected from dirt, rocks, and crash damage.

Low-CG Transmission Design

E-Revo's transmission design is skillfully configured to fit low in the chassis and to also keep the motor(s) mounted as low as possible. This consistent design theme contributes to the handling benefits derived from E-Revo's optimized center of gravity. An oversized steel idler gear and the patent-pending Torque-Control slipper clutch are built to handle the massive torque of high-performance electric motors.


Heavy-Duty Transmission

The new single-speed Brushless-Ready transmission features an oversized steel idler gear and a Torque-Control slipper clutch to handle the massive torque of high-performance brushless motors. To access spur and pinion gears quickly and easily, a unique single-piece gear cover can be removed and installed with a single hex screw. For additional tuning options an accessory single motor installation kit and two-speed gear sets are available.

MODEL 5608L: Fully assembled, Ready-To-Race, with TQi 2.4GHz Radio System with Docking Base, factory-installed telemetry sensors, Castle Creations Mamba Monster Brushless System, two Power Cell 11.1-volt LiPo battery packs, two LiPo balance chargers, and ProGraphix painted body.

Traxxas Link App

Now Available on the App Store with DTS-1 Support!
Requires iPhone (3G/3GS or newer) or iPod touch (2nd, 3rd, and 4th generations).



Available now in the Apple App Store, Traxxas Link offers exciting new features to exploit the full capabilities of the DTS-1 Drag Timing System. When combined with the DTS-1, Traxxas Link allows you to capture all the nuances of Pro drag racing competition. Traxxas Link will fill in your time slip with reaction time, elapsed time, and trap speed in actual miles per hour. Keep a run history on each of your models. Share time slips and setup race events with your friends. Dial in your ETs and any two cars can compete fairly, regardless of their top speeds! Race like the pros, using staging strategy to pressure your opponent. Only Traxxas makes drag racing so easy, accurate, fast, and fun!

Traxxas Link makes it easy to learn, understand, and access the powerful tuning options built into every Traxxas TQi radio system. Control your Drive Effect settings such as steering and throttle sensitivity; steering percentage; braking strength; and throttle trim by simply touching and dragging the sliders on the screen, or enabling the Multi-Function knob on the transmitter. With Traxxas Link, everything happens live, on-the-fly, giving you instant feedback on the changes you are making. Once you have created the perfect control settings for your model, save them as a profile that you can restore later, use on another model, or share with friends. If the track conditions change, simply re-tune your Drive Effects and save them as new profile.

Traxxas Link collects and records real-time telemetry data as you drive. When you equip your model with sensors, the Traxxas Link dashboard comes to life showing you speed, battery voltage, RPM, and temperature. The application automatically detects and recognizes Traxxas Link sensors for easy set up and configuration. The dashboard is fully customizable with either dial or digital readout gauges. Set threshold warnings and log maximums, minimums, or averages. Use the recording function to document your dashboard view, with sound, so that you can keep your eyes on your driving and not miss a single apex. If you forget to record, simply touch Instant Replay anytime to capture the previous minute of fun and unexpected triumphs. The recordings can be named and saved to compare, review, and share with friends.

The Model configuration settings provide a beautifully simple, visual interface to fine tune servo adjustments such as sub-trims, endpoints, and servo reversing. Choose your servo by touching the channel icon. Model Setups can be customized to adjust for vehicle modifications such as changing the pinion gear or installing different tires. Just select the modifications from the list. Traxxas Link also gives you instant access to Training Mode, and even includes an adjustment to set how fast the model can drive in Training Mode. It's perfect when you want to quickly and easily share your vehicle with a driver that is not yet ready to experience the full top speed your vehicle is capable of.

Traxxas Link simplifies organizing your collection of vehicles. The TQi radio system automatically keeps track of what vehicles it has bound to and what settings were used for each. Traxxas Link provides a visual interface to see the transmitter's model history, name the models, customize their settings, attach profiles, and lock them into memory. With Traxxas Link and the TQi radio system, there's never a need to try and remember which model in memory needs to be selected to drive. Simply choose a model and any previously bound transmitter, power them up, and start having fun. Traxxas Link recognizes the model and picks everything up right where you left off. An unlimited number of vehicles can be permanently stored. The factory settings for all Traxxas models are pre programmed so adding a new Traxxas model to your transmitter is a snap. Traxxas models factory equipped with TQi Traxxas Link receivers are detected and configured automatically.

Traxxas Link is also a handy tool for finding the hobby shop or Traxxas retailer closest to you and pinpointing them on a map. Access support tools, vehicle information, updates, built in contextual help and more.

Authentic NHRA-style Drag Racing Competition With Traxxas Link and the DTS-1 Drag Timing System

Traxxas Link makes it simple to select the DTS-1's Staging and Tree modes and select one or both lanes. Tap the name fields to input each driver and Dial-In times for bracket racing. Touch Start Race and DTS-1 signals the drivers to enter the staging beams. It all happens right from your TQi transmitter with the easy-to-use Traxxas Link interface.

The DTS-1 captures the data from each race with millisecond accuracy for display in the Traxxas Link App. Race winner, Elapsed Time, and MPH are shown with digital precision. Share and Comment buttons make it easy to send results to friends, or attach comments to the results. Touch Show Timeslip and Traxxas Link reveals even more race data.

The Traxxas Link timeslip display replicates the paper timeslip you would collect at the "ET shack" after a run on a full-size drag strip. Elapsed time (ET), trap speed (MPH), Reaction Time (RT) and dial-in time (if used) are displayed along with the margin of victory. Driver name, lane choice, and race date are shown beneath the customizable track name. Traxxas Link and DTS-1 make it easy to organize and run exciting, competitive drag races quickly and easily in your driveway with friends or at the hobby store with a full field of competitors.  The Traxxas Link App with DTS-1 Support is now available on the App Store.

DTS-1 Setup and Diagnostics

Select Tree Mode (Spotsman or Pro) and Staging Mode (Pro, EZ. Hand), and activate Practice or Bracket racing mode with a touch. Pre-programmed distances for scale quarter-mile racing can be selected, or you can input your own custom distance.

Customize your DTS-1 with advanced settings that allow you to alter the amount of time DTS-1 allows for each staging mode, race timeout, even how long the screen displays results after each race. Traxxas Link makes it easy to set up the DTS-1 to race your way.

Traxxas Link's diagnostic screen confirms beam alignment, shows battery life in each console, displays laser temperature and even lets you know if the optional cooling fans are running. Troubleshooting is done for you, no guesswork involved.

Device Requirements

Traxxas Link is designed for iPhone 3G, iPhone 3GS, iPhone 4, iPhone 4S, and iPod touch 2nd, 3rd, and 4th generations. For full functionality, Traxxas Link requires a Traxxas TQi transmitter with Docking Base and a TQi receiver installed in the model. Telemetry functions require Traxxas telemetry sensors to be installed on your model.

Features

• Castle Creations Mamba Monster ESC

• Castle Creations Mamba Monster 2200KV Motor

• Includes two Power Cell 5000mAh 3-Cell LiPo battery packs

• Includes two LiPo Balance Chargers

• TQi 2.4GHz High Output radio system with Docking Base

  • TQi 2.4GHz High Output transmitter

  • TQi Docking Base

  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, "model selection" is not required

  • Multi-Function knobAdjustable steering and throttle percentage (dual rates)

  • Adjustable steering and throttle sensitivity (exponential)

  • Adjustable steering and throttle end points

  • High 13ms frame rate and near-zero latency for responsive control

  • Telemetry-ready 5-channel micro receiver with dual channel-1 input

  • Docking Base accepts iPhone and iPod touch (sold separately) for full Traxxas Link application functionality

  • Factory-equipped with speed/RPM, temperature, and voltage telemetry sensors

  • TQi 2.4GHz 5-channel micro receiver (#6518) with fail-safe security and integrated telemetry ports

• Brushless-Ready transmission with metal center idler gear

• Heavy-duty 17mm splined aluminum hex hubs and wheel nuts

• Traxxas Power Cell LiPo batteries included

• Unique chassis design with integrated dual battery compartments

• Quick release battery doors

• Battery cooling vents

• Scalable battery compartments from sport packs to brutal 6S LiPo power

• Smooth center skid plate shields the driveline

• Sealed receiver box protects the micro receiver from dirt, debris and moisture

• Dual digital waterproof steering servos deliver 125 oz-in of torque & 0.16-sec transit time

• Hard-anodized PTFE-coated shock bodies with TiN coated shock shafts

• Sealed pivot ball suspension

• Sealed limited slip differentials

• Dual-servo steering system

• Hex hardware throughout

• 3.8” black chrome Gemini wheels

• 3.8” Talon tires

• Sleek pre-painted body design

• Adjustable rear wing

• Compatible with many Revo Platinum upgrades

• Traxxas innovation built in!

• Ready-To-Race

MODEL 5608L: Fully assembled, Ready-To-Race, with TQi 2.4GHz Radio System with Docking Base, factory-installed telemetry sensors, Castle Creations Mamba Monster Brushless System, two Power Cell 11.1-volt LiPo battery packs, two LiPo balance chargers, and ProGraphix painted body.

Specification

E-REVO BRUSHLESS EDITION (#5608L) SPECS

CASTLE CREATIONS MAMBA MONSTER ESC SPECS

MODEL 5608L: Fully assembled, Ready-To-Race, with TQi 2.4GHz Radio System with Docking Base, factory-installed telemetry sensors, Castle Creations Mamba Monster Brushless System, two Power Cell 11.1-volt LiPo battery packs, two LiPo balance chargers, and ProGraphix painted body.

Click here for more Information

Manual

Instructions

• 5614 Center Differential Instructions

• 5451R CV Driveshaft Installation & Parts Instructions

• Differential Rebuild Instructions (Covers #5379X, 5380, 5381, 5382X, 3978)

• 5692 (3973, 3974) E-Revo Two-Speed Instructions

• 3395 Castle Creations Mamba Monster Installation

• GTR Aluminum Shock Rebuild Instructions (Covers #5460, #5462, #5466R)

• E-Revo Voltage Sensor Installation

• E-Revo Temp Sensor Installation

• E-Revo Spur Gear Magnet Installation

• E-Revo RPM Sensor Installation

• Traxxas Power Cell Battery Application Guide (Counter Mat) (LiPo and NiMH)

• 5381X Spool Installation Instructions

• Rocker Arm Instructions, Long Travel (Covers #5356, #5357, #5358, #5359)

• 5355 Bump Steer Elimination Instructions

• 5352 Slipper Clutch Instructions

• 5345X Servo Horns Instructions

• 5339 Tube Insert Instructions

• 5338R Aluminum Toe Link Tubes Instructions

• 5338 Toe Link Instructions

• 5498 Revo Swaybar installation instructions

• 4091 On-Board Temperature Meter Instructions (for TRX engines)

Parts List

• 5608X Parts List

• 5608L Parts List

Miscellaneous

Watch A Video of This Model
