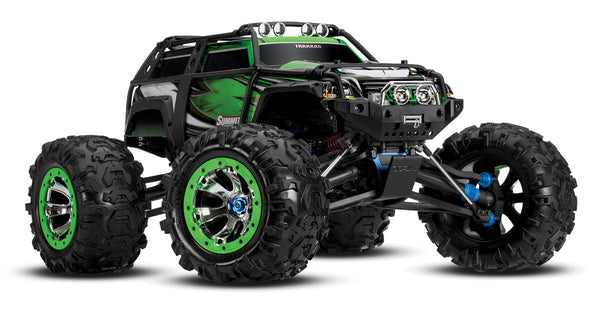

Traxxas 1/10 Scale Summit 4WD Extreme Terrain Monster Truck - 5607L

Versatile All-Terrain Performance with High-Low Transmission and Remote Locking Differentials! Now Includes Two Power Cell LiPo Battery Packs and LiPo Balance Chargers!

• TQi 2.4GHz 4-Channel transmitter and 5-channel receiver
• Includes two Power Cell 5000mAh 2-Cell LiPo battery packs
• Includes two LiPo Balance Chargers
• Innovative T-Lock remote locking differentials let you select front and
  rear locked diffs, front locked diff, or full open differentials via the
  transmitter
• Transmitter-operated High-Low transmission switches from a 70:1 first
  gear ratio for climbing torque to a 25:1 second gear ratio for trail speed
• 10-LED lighting system opens the door to night-driving fun
• ExoCage body adds real-rock-rig style and functional protection
• New 3.8" Geode wheels with beadlock-style sidewall protectors moun
  securely to aluminum 17mm hex hubs
• Massive 7" Canyon AT extreme-terrain tires with soft inserts generate
  awesome off-road grip

Unprecedented Versatility With T-Lock differentials and High-Low Transmission

Only Summit gives you the ability to lock the differentials and shift from low to high gear right from the transmitter. No need to break from the action to swap gears or install locking parts. Tear up the trail in "high range" with a 25:1 ratio for dirt-slinging speed. When the terrain turns technical, drop it into "low range" for a 70:1 ratio and unreal climbing torque. For the ultimate in climbing traction, flip the T-Lock switch to lock the front differential. Need even more grip? Activate the rear T-Lock diff for fully-loaded 4WD power no matter which tire is gripping or slipping.

10-LED Lighting System

No need to head for the garage when the sun goes down; Summit lights up the night with an integrated LED illumination system. Four bright white LEDs blaze the trail ahead, while six red LEDs show where Summit's been. The LEDs are integrated into the bumpers for durability and convenience, and the chassis-mounted wiring harness eliminates the possibility of tangles and hooked wires.

Power Cell LiPo Batteries and LiPo Balance Chargers

Designed from the start for high-voltage, high-capacity LiPo packs, Traxxas’ Summit now includes a pair of genuine Traxxas Power Cell LiPo battey packs—the only LiPos certified to deliver the full performance potential of Traxxas’ most versitile all-terrain truck. Summit includes two 5000mAh 2-cell Power Cell LiPo battery packs. Summit arrives with Low Voltage Detection activated to assure maximum battery life and prevent over-discharging.

Charging care is just as important to LiPo life and performance, so a pair of 2-Cell / 3-Cell LiPo Balance chargers are also included. Just plug the battery’s balance plug into the charger and you’re on the way to another run—no programming or settings required. Every time a pack is charged, the cells are charged individually to precisely balance voltage for optimum performance, run time, and cycle life. Experience the ultimate in electric horsepower with the only models designed for LiPo power from the start, and genuine Power Cell LiPo technology on board.

The World's Most Advanced Ready-To-Race Radio System

Summit is equipped with the world's most advanced Ready-To-Race radio system. The all-new Traxxas TQi arrives with a full complement of tuning features and offers the unbeatable convenience of "no channels, no crystals" 2.4Ghz technology—but that's just the beginning. Automatic model recognition instantly recalls your settings for up to 30 Traxxas Link-enabled models. Just switch on and drive, no naming or "model memory" settings required. Power up the transmitter and the model you want to drive, and the settings for that model are dialed in immediately! The new TQi 2.4GHz transmitter is fully adjustable: steering and throttle end points can be set precisely, and the Multi-Function knob can be programmed to control Steering Sensitivity (Expo), Throttle Sensitivity (Expo), Steering Percentage (Dual Rate), Braking Percentage (Dual Rate), or Throttle Trim. TQi's ergonomic case design provides all-day driving comfort, and the unique internal antenna contributes to its sleek, modern look.

TQi Docking Base Compatible

The TQi's most important new feature may already be in your pocket. The TQi can be equipped with an optional Docking Base (#6510) that turns your iPhone or iPod touch (sold separately) into a powerful tuning tool for your Traxxas model. The full-color display combines with the free Traxxas Link App (on the App Store) to deliver an intuitive, high-definition, full-color graphical user interface that unlocks the mysteries of optimizing your radio system for ultimate vehicle control. Traxxas Link also opens the door to telemetry capability when you add optional sensors to your model. Click on one of the following links to learn more about the ground-breaking TQi radio system, TQi Docking Base, and the Traxxas Link Application.

Realistic & Rugged ExoCage Body

Summit's aggressive SUV-style bodywork doesn't just look tough; with its bolt-on fender flares and tube-style ExoCage skeleton, it's as rugged as a real rock rig. Flexible to bounce back after a rollover yet tough enough to spare the lexan body from rock rash, the ExoCage combines authentic real-rock-rig looks with genuine protection.

Waterproof Electronics and Titan 775 Motor

Summit gets its spin from the largest motor of any electric monster truck, the Titan 775. This massive mill is equipped with a fan-cooled armature for nonstop off-road adventure, and an extra wrap of steel around the can for maximum magnetic field strength—that means more torque to tame the trail and conquer any climb. Designed by Traxxas, the EVX-2 features three drive profiles, thermal shutdown protection, low-voltage detection for compatibility with LiPo battery packs, and Traxxas high-current battery connectors. Throttle control comes from an EVX-2 electronic speed control, a heavy-duty powerhouse that can handle up to 16.8 volts to give Summit extreme trail-conquering torque. And if that trail is wet, muddy or even covered in snow, it's no problem. Waterproof electronics let Summit operate worry-free in conditions that sideline other monster trucks.

Geode Wheels, Soft Foam Inserts and Canyon AT Tires

An off-road machine is only as good as its tires, and Summit delivers with the biggest, gnarliest Traxxas tire ever: the Canyon AT. This multi-terrain tread features aggressive, angular lugs that dig in on dirt, grass, roots, and rocks to get Summit up and over anything you aim it at. Soft foam insets let the rubber conform to surfaces for maximum grip, and the new Geode rims hold the tires tight with beadlock style. The removable rings protect the rim edges and tire sidewalls from rock rash and lend additional support to the tire/rim glue joint.

Futuristic Chassis Design

Summit's ground-breaking E-Revo molded chassis sets a new benchmark for electric monster truck looks and performance. The chassis combines art and function to deliver a lightweight, integrated, and rigid platform that maximizes strength and reduces weight. Scalable battery compartments accept a variety of NiMH and LiPo configurations to unlock Summit's power potential. By combining the battery compartments with the chassis design, the battery packs can sit low and close to the center of the truck, plus valuable chassis surface is freed up to accommodate the electronics for a clean layout. This keeps the center of gravity (CG) as low as possible, allowing for steeper climb angles, greater side-hill stability and responsive handling at speed.

Dual-CV Telescoping Axles

Locked differentials, a powerful motor and high-traction tires are the perfect recipe for overstressed driveshafts, so Summit is equipped with the toughest Traxxas shafts ever. The smooth-sliding, true-curvilinear spline design pioneered for Revo is now even stronger thanks to CV-style joints on each end—an industry first. The joints' crosspins are supported by the full diameter of the shaft, so even the heaviest torque loads won't pop the joint.

QUICK FEATURES ON SUMMIT (#5607L)

• Transmitter-operated remote locking differentials (patent pending)
• Transmitter-operated High-Low transmission
• Two 7.4-Volt Power Cell LiPo Battery Packs
• Two LiPo Balance Chargers
• Titan 775 motor
• TQi 2.4GHz 4-channel transmitter and micro receiver
• 17mm splined aluminum hex hubs
• Industry's first dual-CV telescoping half shafts
• Geode rims and Canyon AT tires
• ExoCage body
• 10-LED light system
• Specially tuned long-travel suspension

Dual-Servo Steering System

High-traction tires and a low-speed technical climb—that's a combo that demands a lot of steering torque, and Summit delivers with a dual-servo system. Each servo is rated for 125 oz.-in. of torque, giving Summit a total of 250 oz.-in. of tire-turning twist to keep you in command no matter how tough the conditions.

Leading The Way

Versatility. Durability. Off-road capability. With Summit, you don't have to choose just one or two of those attributes; you get them all with the innovation and engineering that could only come from Traxxas. Summit is the new standard for monster truck performance without limits. Down the trail or up the rocks, Summit let's you pick the path.

MODEL 5607L: Fully assembled, Ready-To-Drive with TQi 2.4GHz four-channel radio system, two Power Cell 7.4-volt LiPo battery packs, two LiPo balance chargers, waterproof electronics with EVX-2 Electronic Speed Control, and ExoCage painted body.

Details

The World's Most Advanced Ready-To-Race Radio System

Total Control.

Traxxas models deserve the world's most advanced Ready-To-Race radio system. The radio system after all is the sole connection between the driver and machine. It has to be precise, comfortable, powerful, and reliable. The all-new Traxxas TQi radio system arrives with a full compliment of tuning features; long-range, high-output, 2.4GHz signal, and proven Traxxas reliability for rock-solid performance. It's so advanced; it doesn't even need an external antenna. However, the most important new feature may already be in your pocket. The TQi can be equipped with an optional Docking Base (#6510) that turns your iPhone or iPod touch into a powerful tuning tool for your Traxxas model. The full-color display combines with the Traxxas Link App to deliver an intuitive, high-definition, full-color graphical user interface that unlocks the mysteries of optimizing your radio system for ultimate vehicle control.

5-channel Micro Receiver with Fail-Safe Security

The TQi 2.4GHz micro receiver fits easily into any vehicle, and features dual channel-1 outputs for easy installation in vehicles with dual steering servos—no Y-harness necessary! The integrated LINK button makes it fast and easy to bind the receiver, and the two-color LED indicates power-on and bind status for fool-proof control and convenience. Traxxas Link Model Memory allows the receiver to recognize up to thirty TQi 2.4Ghz Traxxas Link enabled transmitters—just switch on and drive. In the event of signal loss due to an accidental switch-off or depleted batteries, the receiver will automatically return the throttle to neutral and hold the last commanded steering position. The Fail Safe programming is built-in and does not need to be set or activated. Three telemetry ports are incorporated in the 5-channel receiver to allow real-time data to be transmitted from your Traxxas model to the TQi transmitter.

EVX-2 Waterproof Electronic Speed Control

The EVX-2 delivers an incredible 16.8 volts from two battery packs. Designed by Traxxas, the EVX-2 features a completely waterproof design, low-voltage detection, three drive profiles, Thermal Shutdown Protection, and gold-plated, high-current battery connectors. The EVX-2 also includes patent-pending Training Mode. This profile reduces the overall power output of the EVX-2 by 50% making it easier for young/new drivers to develop their control skills before unleashing full-power operation. The EVX-2 is manufactured by Traxxas to ensure the highest level of quality and support.

Power Cell LiPo Batteries

Designed from the start for high-voltage, high-capacity LiPo packs, Traxxas' Summit now includes a pair of genuine Traxxas Power Cell LiPo battey packs—the only LiPos certified to deliver the full performance potential of Traxxas' most versitile all-terrain truck. Summit includes two 5000mAh 2-cell Power Cell LiPo battery packs. Summit arrives with Low Voltage Detection activated to assure maximum battery life and prevent over-discharging.

LiPo Balance Chargers

Charging care is just as important to LiPo life and performance, so a pair of 2-Cell / 3-Cell LiPo Balance chargers are also included. Just plug the battery's balance plug into the charger and you're on the way to another run—no programming or settings required. Every time a pack is charged, the cells are charged individually to precisely balance voltage for optimum performance, run time, and cycle life. Experience the ultimate in electric horsepower with the only models designed for LiPo power from the start, and genuine Power Cell LiPo technology on board.

High-Torque Titan 775 Power

Summit gets its spin from the largest motor of any electric monster truck—the Titan 775. This massive mill is equipped with a fan-cooled armature for nonstop off-road adventure, and an extra wrap of steel around the can for maximum magnetic field strength—that means more torque to tame the trail and conquer any climb. Summit's single-motor mount keeps the Titan 775 powerplant low and tight to the chassis for a low CG and surefooted handling.

Traxxas High-Current Connectors

The EVX-2 electronic speed control comes equipped with Traxxas High-Current Connectors. Designed to handle high-current applications, Traxxas Connectors effortlessly funnel the dual battery's total power to the electronics, keeping things running cool and at full capacity.

Waterproof Receiver Box

Summit is the latest truck to feature Traxxas' exclusive waterproof electronics. This exclusive Traxxas innovation opens the door for driving fun in water, mud, snow, and other wet conditions that stop others dead in their tracks. The patent-pending waterproof electronics box allows the installation of your own radio system without losing the watertight properties.

Dual Digital High-Torque Waterproof Steering Servos

Waterproof digital steering servos (#2075) use O-ring seals to keep the fun going when things get wet. Twin servos are lighter and more compact than a single large servo, and together they deliver unmatched monster steering response with a full 250 oz. in. of tire-turning torque and quick .16-second transit time. The servos operate a ball-bearing-supported bellcrank with an integrated servo saver for precise control and rock-conquering durability.

Heavy-Duty High-Low Transmission Speed for the trail. Torque for the rocks.

Not only is Summit the first truck to offer remote locking diffs, it's also the only truck equipped with a remote-shifting High-Low transmission. In low gear, Summit's 70:1 final-drive ratio turns rpm into pure torque to power up and over any obstacle that dares to get in the way. Upshift to high for a 25:1 ratio and all the speed you need to attack jumps and make tracks in a hurry.

Low-CG Transmission

Summit's transmission is skillfully configured to sit low in the chassis and hold the Titan 775 motor as low as possible for best climbing performance, even at very steep angles. The low-CG transmission also gives Summit sure-footed handling on the trail. An oversized steel idler gear and patent-pending Torque Control slipper clutch are built to handle the massive torque of Summit's power system.

The First-Ever Remote Locking Differential

For the first time, it is possible to switch from the smooth handling of silicone-filled differentials to the tenacious traction of locked diffs just by flipping a switch on the transmitter. At your command, the servo-actuated T-Lock system engages eight steel drive dogs to lock the differential. Match the locking mode to the challenges of the terrain; Summit's T-Lock differential system allows you to select front-lock for dig-style turns in tight quarters, front and rear lock for total climbing traction, or front and rear open differentials for optimum handling and a tight turning radius. Patent pending.

10-LED Lighting System

No need to head for the garage when the sun goes down; Summit lights up the night with an integrated LED illumination system. Four bright white LEDs blaze the trail ahead, while six red LEDs show where Summit's been. The LEDs are integrated into the bumpers for durability and convenience, and the chassis-mounted wiring harness eliminates the possibility of tangles and hooked wires.

Realistic & Rugged ExoCage Body

Summit's aggressive SUV-style bodywork doesn't just look tough; with its bolt-on fender flares and tube-style ExoCage skeleton, it's as rugged as a real rock rig. Flexible to bounce back after a rollover yet tough enough to spare the lexan body from rock-rash, the ExoCage combines authentic real-rock-rig looks with genuine protection.

Geode Wheels, Soft Foam Inserts and Canyon AT Tires

An off-road machine is only as good as its tires, and Summit delivers with the biggest, gnarliest Traxxas tire ever—the Canyon AT. This multi-terrain tread features aggressive, angular lugs that dig in on dirt, grass, roots, and rocks to get Summit up and over anything you aim it at. Soft foam inserts let the rubber conform to surfaces for maximum grip, and new Geode rims hold the tires tight with beadlock style. The removeable rings protect the rim edges and tire sidewalls from rock rash and lend additional support to the tire/rim glue joint.

Dual-CV Telescoping Axles

Locked differentials, a powerful motor, and high-traction tires are the perfect recipe for overstressed driveshafts, so Summit is equipped with the toughest Traxxas shafts ever. The smooth-sliding, true-curvilinear spline design pioneered for Revo is now even stronger thanks to CV-style joints on each end—an industry first. The joints' crosspins are supported by the full diameter of the shaft, so even the heaviest torque loads won't pop the joint.

Dual-Servo Steering System

High-traction tires and a low-speed technical climb—that's a combo that demands a lot of steering torque, and Summit delivers with a dual-servo system. Each servo is rated for 125 oz.-in. of torque, giving Summit a total of 250 oz.-in. of tire-turning twist to keep you in command no matter how tough the conditions.

Heavy-Duty 17mm Hex Hubs

17mm splined aluminum hex hubs proven tough by the Revo Platinum Edition make certain all of Summit's considerable torque is delivered directly to the treads. The splined design is extra strong with unsurpassed torque handling to resist twist-out no matter how hard Summit pulls at the tires.

Quick-Release Battery Doors

Summit uses an innovative solution for easy battery installation. Quick-release battery doors snap open and closed in seconds for fast and easy battery installation. There are no clips to lose in the field, and fast battery changes during pit stops let you spend more time on the trail and less time on the bench.

Battery Compartment Vents

Resembling the exhaust ducts of a turbine powered jet, the futuristic battery vents are securely mounted on the chassis. In addition to offering entrance and exit cooling, the oversized openings incorporate latches that insert into the battery door clasps. The battery compartment vents symbolize the sleek and high-tech image that places Summit in a class of its own.

Futuristic Chassis Design

Summit's groundbreaking E-Revo molded chassis sets a new benchmark for electric monster truck looks and performance. The chassis combines art and function to deliver a lightweight, integrated, and rigid platform that maximizes strength and reduces weight. Scalable battery compartments accept a variety of battery* configurations to unlock Summit's power potential. By combining the battery compartments with the chassis design, the battery packs can sit low and close to the center of the truck, plus valuable chassis surface is freed up to accommodate the electronics for a clean layout. This keeps the center of gravity (CG) as low as possible, allowing for steeper climb angles, greater side-hill stability, and responsive handling at speed.

Rigidity, Strength, Protection

The smooth center skid plate both protects and strengthens. Critical driveline components are shielded from the elements for long life. A cover provides access for maintenance. Summit's smooth underside slides over rocks and other obstacles to keep you rolling when other trucks have to head for home.

High-Tech GTR Shocks

Summit wears the best shocks in the business, our hard-anodized, PTFE-coated GTR dampers. Threaded bodies and oversized spring collars make it easy to set preload, and long-wearing, low-friction titanium-nitride shafts provide slick shock action for superior suspension response and reliability.

The Most Suspension Travel

Ultra-long-travel suspension based on the award-winning E-Revo gives Summit more travel and articulation than any other monster truck, while the independent suspension and tall Canyon AT tires allow incredibly steep approach angles and sky-high ground clearance no other truck can match.

Features

• Waterproof electronics for running in water, mud, and snow
• EVX-2 16.8-volt FWD/REV electronic speed control
  • EZ-Set single button programming
  • LiPo, NiCad, and NiMH compatible with two-stage Low-Voltage Detection
  • Three selectable drive profiles: Sport Mode, Race Mode, and Training Mode
    Three selectable drive profiles: Sport Mode, Race Mode, and Training Mode
  • Sport Mode – Forward / Brake / Reverse
  • Race Mode – Forward / Brake
  • Training Mode - 50% Forward / Brake / 50% Reverse (patent pending)
• Traxxas high-torque Titan 775 motor
• TQi 2.4GHz 4-channel transmitter
  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, "model selection" is not required.
  • Multi-Function knob
  • Adjustable steering and throttle percentage (dual rates)
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle end points
  • High 13ms frame rate and near-zero latency for responsive control
  • TQi 2.4GHz 5-channel micro receiver (#6518) with fail-safe security and integrated telemetry ports
  • Compatible with optional TQi Docking Base (#6510) for full Traxxas Link Appcapability with Apple iPhone or iPod touch (sold separately)
• Innovative T-Lock remote locking differentials let you select front and rear locked diffs, front locked diff, or full open differentials via the transmitter
• Transmitter-operated High-Low transmission switches from a 70:1 low-range ratio for climbing torque to a 25:1 high-range ratio for trail speed
• 10-LED lighting system opens the door to night-driving fun
• ExoCage body adds real rock-rig style and functional protection
• New 3.8" Geode wheels with beadlock-style sidewall protectors mount securely to aluminum 17mm hex hubs
• Massive 7" Canyon AT extreme-terrain tires with soft inserts generate awesome off-road grip
• Unique chassis design with integrated dual battery compartments
• Quick release battery doors
• Battery cooling vents
• Scalable battery compartments
• Smooth center skid plate shields the driveline
• Sealed receiver box protects the micro receiver from dirt, debris, and moisture
• Dual digital waterproof steering servos deliver a combined 250 oz-in of torque & 0.16-sec transit time
• Hard-anodized, PTFE-coated shock bodies with TiN coated shock shafts
• Sealed pivot ball suspension
• Sealed limited slip T-Lock (remote locking) differentials
• Ball-bearing-supported steering servo system with integrated servo saver
• Hex hardware throughout
• Compatible with many Revo accessory upgrades
• Traxxas innovation built in!
• Ready-To-Drive


MODEL 5607L: Fully assembled, Ready-To-Drive with TQi 2.4GHz four-channel radio system, two Power Cell 7.4-volt LiPo battery packs, two LiPo balance chargers, waterproof electronics with EVX-2 Electronic Speed Control, and ExoCage painted body.

Specification

SUMMIT (#5607L) SPECS

MODEL 5607L: Fully assembled, Ready-To-Drive with TQi 2.4GHz four-channel radio system, two
Power Cell 7.4-volt LiPo battery packs, two LiPo balance chargers, waterproof electronics with EVX-2
Electronic Speed Control, and ExoCage painted body.

• 5607/5607L Manual Spanish
• 5607/5607L Manual German
• 5607/5607L Manual French
• 5607/5607L Manual

• 5451R CV Driveshaft Installation & Parts Instructions
• Differential Rebuild Instructions (Covers #5379X, 5380, 5381, 5382X, 3978)
• GTR Aluminum Shock Rebuild Instructions (Covers #5460, #5462, #5466R)
• Traxxas Power Cell Battery Application Guide (Counter Mat) (LiPo and NiMH)
• 2065 Micro Servo (Waterproof)
• 5381X Spool Installation Instructions
• Rocker Arm Instructions, Long Travel (Covers #5356, #5357, #5358, #5359)
• 5355 Bump Steer Elimination Instructions
• 5352 Slipper Clutch Instructions
• 5345X Servo Horns Instructions
• 5339 Tube Insert Instructions
• 5338R Aluminum Toe Link Tubes Instructions
• 5338 Toe Link Instructions
• 5498 Revo Swaybar installation instructions
• 4091 On-Board Temperature Meter Instructions (for TRX engines)

• 5607L Parts List
• 5607XParts List

• 5607 Chassis Exploded View (Summit, with TQi 2.4GHz radio)
• 5607 Driveshafts Exploded View (Summit, with TQi 2.4GHz radio)
• 5607 Front Exploded View (Summit, with TQi 2.4GHz radio)
• 5607 Rear Exploded View (Summit, with TQi 2.4GHz radio)
• 5607 Shift Exploded View (Summit, with TQi 2.4GHz radio)
• 5607 Transmission Exploded View (Summit, with TQi 2.4GHz radio)
