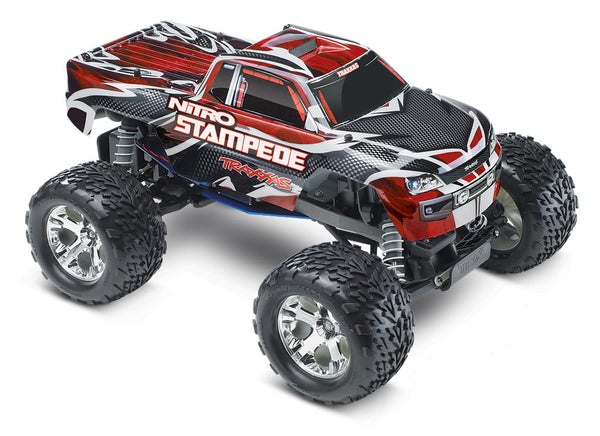

Traxxas 1/10 Scale Nitro Stampede 2WD Monster Truck - 4109

About Traxxas 1/10 Scale Nitro Stampede 2WD Monster Truck - 4109

Nitro Stampede - The Pit Bull of R/C Monster Trucks!!!

• New Body, New ProGraphixx ainted Designn
• Talon 2.8" tires with foam inserts pre-glued on mirror-chrome All-Starwheelss
• Nitro Wheelie-Monster!!
• roven TRXX ro.15 Enginee

Monster Performancee

he Nitro Stampede builds on the legendary ruggedness and performance that has made the Stampede name synonymous with monster truck fun. When you’re ready too go fasterr ndd run longer,, itro power is the next step. Nitro Stampede combines TRXX ro.15 Nitro Power with tall, drive-over-anything ground clearance for hour after hour of intense wheelie-popping, rock-crushing action.. Just fuel it, start it, and drive it!! raxxas makes it easy for Nitro Stampede to feed your hunger for brutal, rock-spitting, dirt-chewing horsepower..



"Truck of the Year"
 RC Car Actionn agazinee

he Nitro Stampede now comes equipped with mirror-chrome All-Star2.8 wheels wrapped with pre-glued Talonall-terrain tires. The smooth-running Revo-Specc alon tread pattern provides incredible grip on hard-packed surfaces, tears through rocks and gravel, and kicks up giant roosts of dirt off-road. Performance-tuned foam inserts provide extra stability. The all-new body design sports an aggressive stance and tough new graphics that tell the world this truck is serious about its mission. New gray-molded parts tastefully compliment the look of the chassis. Pound-for-pound, Nitro Stampede is one of the meanest, toughest, and best-looking R/C monster trucks ever created. Nitro Stampede will easily earn its place as your first choice for exciting, wheelie-popping nitro action..

Fuel it. Start it. Drive it!!

raxxas pioneered the concept of ready-to-run nitro monster trucks and we have been perfecting them ever since (for nearly 15 years). Nitro Stampede makes your move to nitro power easy. Professional Traxxas factory assembly along with our exclusive EZ-Startt ush-button electric engine starting gets you running just minutes out of the box. No other starting system is safer or more convenient. A separate glow driver is not required. The EZ-Start system heats the glowplug for you, automatically. Nitro Stampede’s TRXX ro.15 engine delivers proven power and reliability, and features a precisionn two-needle carburetor.. igh output is delivered over a wide range of conditions. The wide tuning latitude makes the TRX Pro.15 very forgiving so it stays running and idles smoothly as you learn how to perfect the tune and optimize the performance..



The Pit Bull of R/C Monter Truckss

Nitro Stampede has earned its reputation for performance and durability with features like the tough chassis design that combines lightweight composite materials with the engine-cooling properties of 6061-T6 aluminum. The unique dual-plane design provides maximum center ground clearance, a true monster truck stance, and is extra rigid to resist chassis flex. The Magnum 375transmission is specially geared for monster truck torque and is equipped with an adjustable slipper clutch to control traction. The factory-installed planetary differential features hardened steel gears and never needs adjusting! ­The long-travel independent suspension, powerful disc brake, and responsive high-torque steering servo work together for smooth control. Rubber sealed ball bearings and oil-filled Ultra Shockswith the superior sealing of Traxxas X-ring technology keep maintenance duties to an absolute minimum. Nitro Stampede quickly builds your confidence and driving skill as it tackles extreme terrain that other trucks wouldn’t dare attempt..

omplete and Ready-To-Drivee

itro Stampede comes fully assembled and Ready-To-Drivee ith an installed TQ pistol grip radio system, TRX Pro.15 engine with EZ-Start, new body with stunning graphics, and pre-glued Talon tires on mirror-chrome All-Star wheels!­ Even the decals are applied.. All that’s left to do is have fun..itro Stampede comes backed by over 20 years of Traxxas innovation and legendary customer support.­ Experienced pros are with you every step of the way to answer questions and help you succeed with your nitro adventure. Toll-free* support is available via telephone, e-mail, orr online. The electronic components are protected by thee Traxxas Lifetime Electronics Warranty.. The TRX Pro.15 Engine is backed by the Lifetime Engine Replacement Plan that makes it simple and affordable to upgrade to a brand-new engine and more power down the road..

MODEL 41099: Fully assembled, Ready-To-Racee,with TQradio, TRXX Pro.15 engine and ProGraphix painted body.

Details

TRX Pro.15
The TRX Pro.15, known for easy tuning, smooth idle, and reliable running, features true ABC (aluminum, brass, chrome) piston and sleeve construction, a heavy-duty connecting rod, and smooth ball bearings. With the updated EZ-Start electric starting system, the TRX Pro.15 starts quickly and safely at the push of the button. The TRX Pro.15 is so easy to use with its wide and predictable tuning latitude that it’s the perfect engine for the first-time nitro enthusiast. The TRX Pro.15 also gives you the peace-of-mind of the Traxxas Lifetime Engine Replacement Plan, and down the road, affordably upgrades to the powerful racing performance of the TRX 2.5R Racing Engine.

Dual-Needle Carburetor

The carburetor for the TRX Pro.15 features a larger 6mm intake bore for better breathing. Double O-ring sealing on both the low and high speed needle adjustments helps to eliminate air leaks. The carburetor barrel has a dust cap for extra protection against dirt.

Aluminum Piston

The TRX Pro.15’s durable aluminum piston features an oil groove in the top. The oil groove promotes better sealing and compression. It also increases the lubrication between the cylinder sleeve and the piston, reducing wear and heat.

Connecting Rod

The special channeled-beam connecting rod offers greater strength and long-lasting performance. The channeled design has an extra benefit of directing the oil flow down to the crankshaft bushing.

Ball Bearings


The TRX Pro.15 uses precision steel ball bearings for high performance, high-RPM durability. The ball bearings are sealed to keep dirt out, and they reduce friction for ultra-responsive performance.



EZ-Start Electric Starting System

The upgraded EZ-Start system offers the convenience of one-handed operation and complete on-board, push-button electric starting. The Traxxas EZ-Start lights your glow plug and starts your engine quickly and smoothly at the push of a button. Traxxas’ exclusive Smart Starttechnology monitors critical starting functions, automatically sensing and diagnosing potential problems for trouble free engine starting every time! LEDs provide real-time status, even alerting you when a glow plug has failed.

New Body, New Graphics

Nitro Stampede features a brand new body with stunning graphics that are available in four different colors: red, blue, silver-red, or silver-blue.

Monster 4" Ground Clearance

With 4-inches of center ground clearance, Nitro Stampede dominates terrain other trucks can’t! Nitro Stampede easily tackles real world obstacles such as tall grass, curbs, and rocks.

Fiber-Composite / 6061-T6 Aluminum Chassis

An upper, fiber-composite chassis deck stabilizes the fuel tank and ties in to the 6061-T6 lower aluminum chassis. The dual-plane design decreases chassis-flex allowing the suspension to effectively soak up the bumps. The blue-anodized aluminum chassis acts like a heat sink to draw additional heat away from the engine, plus it features countersunk screw holes to prevent speed-robbing drag.

Dual Rear Exhaust System

Nitro Stampede’s tuned exhaust system increases the engine’s power output for maximum torque and incredible top speed. It also promotes cooler running and better fuel efficiency.

Adjustable Slipper Clutch

The slipper clutch on the Nitro Stampede is fully adjustable to control the power output to the rear wheels for increased traction control on a wide variety of surfaces. It also protects the transmission during high-impact jump landings.

Planetary Gear Differential

Nitro Stampede’s gear differential is the best choice for drivers who want performance and fun without maintenance and adjustment headaches. The hardened-steel gears of the planetary gear design are built to last. They require no adjustment and are virtually maintenance free.

Magnum 375 Transmission

The Nitro Magnum 375 transmission is built Nitro Tough with 32 pitch gears, metal top gear, and smooth-running, long-lasting precision ball bearings. This proven, terrain tested, three-gear design is built for performance driving applications.

Slider Driveshafts

Slider driveshafts are extremely durable, and they allow greater articulation for increased suspension travel.

Large-Diameter Disc Brake

Powerful braking is provided by a large-diameter brake disc. This braking system provides smooth engagement for consistent braking performance.

Rubber-Sealed Ball Bearings

Nitro Stampede includes a complete set of efficient rubber-sealed ball bearings at all four corners, in addition to the ball bearing transmission, for smooth, long-lasting and precise driving. In dirt and nitro environments, these low drag rubber sealed ball bearings provide the ultimate protection.

Talon 2.8" Pre-Glued Tires with Foam Inserts

The advanced Talon tread pattern is the same proven design used to provide excellent traction on our highest performing Revo and T-Maxx models! The soft compound rubber hooks up for maximum acceleration and great grip on a wide variety of surfaces: dirt, grass, pavement, and rocks.

The mirror-chrome All-Star wheels feature a lightweight horizontal bead that holds the tire to the rim even under extreme rpm. Performance-designed foam inserts are standard and all tires come pre-glued from the factory to get you rolling right out of the box.

Powder Coated White Springs

New white springs feature long-lasting white powder coated finish.

Oil-Filled Ultra Shocks

Nitro Stampede's oil-filled Ultra Shocks utilize X-ring technology for a perfect seal and super-smooth performance. They are fully tunable with a wide range of oils, springs, and pistons. Features include pressure bladders for air/oil separation and spring clips to precisely change the ride height and spring pre-load. They can be renewed in minutes with our inexpensive shock rebuild kits.

Adjustability

To suit any driving style and environment the Nitro Stampede is fully adjustable from the turnbuckles to the numerous shock mounting positions. The rear anti-squat is also adjustable using the optional anti-squat wedges (part #1934).

TQ Radio System

The included TQ radio system includes a high-power transmitter with a specially designed comfort grip, a precise high-torque steering servo, and a compact receiver. The perfectly balanced TQ transmitter features servo reversing, a low battery indicator, electronic trim control, and it is digitally proportional for precise steering and throttle control.

Features

• Powerful, TRX Pro.15 engine
• Full ball bearings
• Amazing new body, new ProGraphix paint scheme
• TRX All-Star 2.8" chrome wheels
• Pre-glued Talon tires
• Powder coated white springs with gray shock bodies
• New gray molded composite parts compliment the look of the chassis
• EZ-Start electric starter
• Dual exhaust system
• Double deck T6 aluminum and composite chassis
• Magnum 375 transmission with ball bearings
• Adjustable, easy-to-change gear ratios
• Planetary differential with steel gears
• Powerful disc brake
• Telescoping, U-joint driveshafts
• X-Tra long, high-volume, oil-filled gray Ultra Shocks

MODEL 4109: Fully assembled, Ready-To-Race, with TQ radio, TRX Pro.15 engine and ProGraphix painted body.

Specifications

NITRO STAMPEDE (#4109) SPECS

MODEL 4109: Fully assembled, Ready-To-Race, with TQ radio, TRX Pro.15 engine and ProGraphix painted body.
