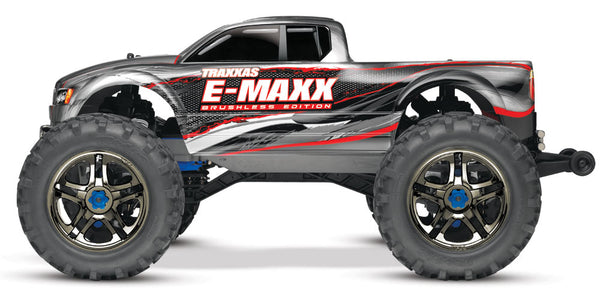

Traxxas 1/10 Scale E-Maxx 4WD Brushless Edition Electric Monster Truck - 3908L

About Traxxas 1/10 Scale E-Maxx 4WD Brushless Edition Electric Monster Truck - 3908L

E-Maxx Brushless Edition, the Ultimate Electric 4X4 Monster!

Now Includes Two 11.1-Volt Power Cell LiPo Battery Packs and LiPo Balance Chargers!

• NEW TQi 2.4GHz Radio System with Docking Base
• NEW Factory-Installed Telemetry Sensors
• NEW Power-Cell LiPo Batteries Included (2)
• NEW LiPo Balance Chargers included (2)
• Factory-installed Castle Creations Mamba Monster brushless system
• High-power 2200Kv motor
• Traxxas Power Cell LiPo Batteries Included
• Top Speed: 50+mph with included batteries, 65+mph all-out!



Designed From the Start for Brushless Speed and LiPo Power

At Traxxas, we don't make conversions. We built it right the first time. So, when our engineers sat down to design the E-Maxx, they made sure it had all the strength and durability needed for today's most powerful aftermarket brushless setups. Give E-Maxx all you've got; its Brushless-Ready transmission is built for the burliest brushless motors, and the included Power Cell 5000mAh LiPo batteries unleash hard-hitting "6S" horsepower when you put the hammer down. Every component between the E-Maxx's motor and the tires is proven tough for full-throttle fun, pack after pack, with the durability and reliability you expect from Traxxas.



TQi: The Next Generation of Traxxas 2.4GHz Control

E-Maxx Brushless Edition is equipped with the world's most advanced Ready-To-Race radio system. The all-new Traxxas TQi radio system with Docking Base turns your iPhone or iPod touch into a powerful tuning tool. The device display combines with the Traxxas Link App to deliver an intuitive, high-definition, full-color graphical user interface that optimizes your radio system for ultimate vehicle control. Automatic model recognition instantly recalls your settings for up to 30 Traxxas Link-enabled models—just switch on and drive. This powerful App gives you complete control over the operation and tuning of the E-Maxx Brushless Edition with an intuitive, high definition graphical user interface. Once you have created the perfect control settings for your model, you can save them as a profile that you can restore later, use on another model, or share with friends. Accessory Traxxas Link telemetry sensors (sold separately) transmit real-time data including speed, RPM, temperature, and battery voltage with stunning visuals.

Powerful Traxxas Link Application Available in the App Store.

Traxxas Link makes it easy to learn, understand, and access the powerful tuning options built into every Traxxas TQi radio system. Control your Drive Effects settings such as steering and throttle sensitivity; steering percentage; braking strength; and throttle trim by simply touching and dragging the sliders on the screen, or enabling the Multi-Function knob on the transmitter. Everything happens live, on-the-fly, giving you instant feedback on your changes.





Instant Performance Feedback With Installed Telemetry Sensors

The E-Maxx Brushless Edition arrives with telemetry sensors installed, ready to bring the Traxxas Link dashboard to life with real-time speed, battery voltage, RPM, and temperature data. The dashboard is fully customizable with either dial or digital readout gauges. Up to nine gauges can be displayed at once. Set threshold warnings and log maximums, minimums, or averages. Use the recording function to document your dashboard view, with sound, so that you can keep your eyes on your driving and not miss a single apex. If you forget to record, simply touch Instant Replay anytime to capture the previous minute of fun and unexpected triumphs. The recordings can be named, saved, and shared with others.

Once you have created the perfect control settings for your model, you can save them as a profile that you can restore later, use on another model, or share with friends. If the track conditions change, simply re-tune your Drive Effects and save them as new profile. Only Traxxas Link makes pro-level transmitter tuning so fast, convenient, and easy.



Castle Creations Mamba Monster Brushless System

Built specifically to handle the rigors of large, power-hungry trucks, the Mamba Monster speed control is ready for 6S LiPo power with its massive 6.5mm gold-plated connectors, high-efficiency heatsink, integrated cooling fan and heavy-duty components. The speed control sends its power pulses to a Castle 2200Kv 75mm motor, designed specially for maximum performance and reliability with 6S LiPo power in torque-hungry applications. The aluminum motor can is machined to act as a massive heatsink, high-grade bearings deliver maximum efficiency, and high-strength Neodymium magnets give E-Maxx Brushless Edition outrageous torque. To resist the twist, a beefy 5mm shaft transfers power to the Brushless-Ready transmission.

Heavy-Duty 17mm Hex Hubs

E-Maxx Brushless Edition's 17mm splined aluminum hex hubs make certain its considerable horsepower is delivered directly to the treads. The splined design is extra strong with unsurpassed torque handling to resist twist-out no matter how hard the 2200Kv motor pulls at the tires. The unique hex-hub shape also accepts standard 17mm-hex wheels.

Massive 6.3" Maxx Tires

Extreme Brushless Power goes wasted if the tires can't put the power to the ground. E-Maxx Brushless Edition has it covered with some of the toughest treads in Traxxas' arsenal, the aggressive Maxx tires used on the hard-hitting Revo 3.3 and T-Maxx 3.3. These massive meats offer tenacious grip, and their huge footprint gives E-Maxx greater stability and generous ground clearance for all-terrain fun. The tires are securely mounted to Twin-Spoke wheels, now covered in sinister black chrome as part of the exclusive Brushless Edition look.

Adjustable Wheelie Bar

To handle extreme brushless power, the adjustable Traxxas wheelie bar is mandatory equipment for the E-Maxx Brushless Edition! Four snap-in adjustment positions allow you to choose how extreme you want your wheelie action to be. In the down position, it keeps the front end planted to show off E-Maxx's incredible acceleration. Raise the wheelie bar to its full-up position and the action gets wild, with giant wheelies that hang on as long as you keep mashing the throttle! The wheelie bar's unique design allows it to be easily removed in situations where you may not want the additional control.

QUICK FEATURES ON E-MAXX BRUSHLESS (#3908L)

• Top Speed: 50+ with included Power Cell LiPo batteries, 65+mph All-Out!
• Includes two Power Cell 5000mAh 3-Cell LiPo battery packs
• Includes two LiPo Balance Chargers
• Equipped with Castle Creation's Mamba Monster Brushless System
• Traxxas TQi 2.4GHz Radio System with Docking Base
• Equipped with RPM/speed, motor temperature, and voltage telemetry sensors
• Up to 25.2 Volts of Massive Brushless Power
• State-of-the-Art Integrated Chassis Design
• Heavy-Duty 17mm Splined Aluminum Hex Hubs and Wheel Nuts



E-Maxx Brushless Edition (model #3908L) comes fully-assembled and Ready-To-Race with the TQi 2.4GHz radio system with Docking Base installed and adjusted, factory-installed telemetry sensors, Castle Creations Mamba Monster brushless power system, Traxxas Power Cell LiPo batteries, painted and decaled body, pre-glued tires, and detailed instructions. Traxxas backs the E-Maxx Brushless Edition and all of our products with top-notch support that is second to none. A staff of skilled representatives is on-hand to answer your questions via phone, website, or e-mail. Unmatched parts support allows E-Maxx Brushless Edition to be serviced with parts and support from thousands of hobby dealers worldwide. Traxxas goes the extra mile to ensure that your R/C experience is easy and fun (and fast!). Follow the details link above to go in depth on all the E-Maxx Brushless Edition performance benefits and also be sure to check out the videos page to see E-Maxx Brushless Edition in action for yourself.

MODEL 3908L: Fully assembled, Ready-To-Race, with TQi 2.4GHz Radio System with Docking Base, installed telemetry sensors, Power Cell 5000mAh 3-cell LiPo batteries, Castle Creations Mamba Monster power system, and ProGraphixpainted body.etails

Details

Advanced TQi 2.4GHz Radio System with Docking Base

Traxxas models deserve the world's most advanced Ready-To-Race radio system. The radio system after all is the sole connection between the driver and machine. It has to be precise, comfortable, powerful, and reliable. The all-new Traxxas TQi radio system arrives with a full complement of tuning features; long-range, high-output, 2.4GHz signal, and proven Traxxas reliability for rock-solid performance. It's so advanced; it doesn't even need an external antenna. However, the most important new feature may already be in your pocket. The E-Maxx Brushless Edition's TQi transmitter is equipped with an accessory Docking Base that turns your iPhone or iPod touch into a powerful tuning tool for your Traxxas model. The device display combines with the Traxxas Link App to deliver an intuitive, high-definition, full-color graphical user interface that unlocks the mysteries of optimizing your radio system for ultimate vehicle control.



Only Traxxas gives you the power to unlock the full potential of the new Traxxas TQi Radio System with Traxxas Link, the custom application that integrates your iPhone or iPod touch with the TQi transmitter. Gone are the clunky controls and blocky monochrome graphics of yesterday's radio systems. This powerful App gives you complete control over the operation and tuning of your Traxxas radio controlled model with an intuitive, high-definition graphical user interface. Install accessory Traxxas Link telemetry sensors (sold separately) on the model, and Traxxas Link displays real-time data such as speed, RPM, temperature, and battery voltage with stunning graphics. Traxxas builds the world's fastest Ready-To-Race radio-controlled models, capable of speeds that exceed 100mph. That level of performance demands precision control. Traxxas Link gives you the tools for exacting adjustment and superior control while always keeping you informed on your model's status and speed.

Factory-Installed Telemetry Sensors

The E-Maxx Brushless Edition's installed telemetry sensors allow the Traxxas Link app to collect and record real-time telemetry data as you drive. The Traxxas Link dashboard comes to life showing you speed, battery voltage, RPM, and temperature and is fully customizable with either dial or digital readout gauges. Up to nine gauges can be displayed at once. Set threshold warnings and log maximums, minimums, or averages. Use the recording function to document your dashboard view, with sound, so that you can keep your eyes on your driving and not miss a single apex. If you forget to record, simply touch Instant Replay anytime to capture the previous minute of fun and unexpected triumphs. The recordings can be named, saved, and shared with others.



Intuitive iPhone and iPod touch Interface

Traxxas Link makes it easy to learn, understand, and access the powerful tuning options built into every Traxxas TQi radio system. Control your Drive Effects settings such as steering and throttle sensitivity; steering percentage; braking strength; and throttle trim by simply touching and dragging the sliders on the screen, or enabling the Multi-Function knob on the transmitter. Everything happens live, on-the-fly, giving you instant feedback on your changes.



Castle Creations Mamba
Monster Brushless System

Built specifically to handle the rigors of large, power-hungry trucks, the Mamba Monster speed control is ready for 6S LiPo power with its massive 6.5mm gold-plated connectors, high-efficiency heatsink, integrated cooling fan and heavy-duty components. The speed control sends its power pulses to a Castle 2200Kv 75mm motor, designed specially for maximum performance and reliability with 6S LiPo power in torque-hungry applications. The aluminum motor can is machined to act as a massive heatsink, high-grade bearings deliver maximum efficiency, and high-strength Neodymium magnets give E-Maxx Brushless Edition outrageous torque. To resist the twist, a beefy 5mm shaft transfers power to the Brushless-Ready transmission.





Power Cell LiPo Batteries Included

Designed from the start for high-voltage, high-capacity LiPo packs, Traxxas' E-Maxx Brushless Edition now includes a pair of genuine Traxxas Power Cell LiPo battey packs—the only LiPos certified to deliver the full performance potential of Traxxas' most versitile all-terrain truck. E-Maxx Brushless Edition includes two 5000mAh 3-cell Power Cell LiPo battery packs and it arrives with Low Voltage Detection activated to assure maximum battery life and prevent over-discharging.

LiPo Balance Chargers Included

Charging care is vital to LiPo life and performance, so a pair of 2-Cell / 3-Cell LiPo Balance chargers are also included. Just plug the battery's balance plug into the charger and you're on the way to another run—no programming or settings required. Every time a pack is charged, the cells are charged individually to precisely balance voltage for optimum performance, run time, and cycle life. Experience the ultimate in electric horsepower with the only models designed for LiPo power from the start, and genuine Power Cell LiPo technology on board.

Traxxas High-Current Connectors

The Mamba Monster Brushless system comes equipped with two new Traxxas High-Current Connectors. Designed to handle high-current applications, Traxxas Connectors effortlessly funnel the dual battery's total power to the electronics keeping things running cool and at full capacity.

Heavy-Duty 17mm Hex Hubs

E-Maxx Brushless Edition's 17mm splined aluminum hex hubs make certain its considerable horsepower is delivered directly to the treads. The splined design is extra strong with unsurpassed torque handling to resist twist-out no matter how hard the 2200Kv motor pulls at the tires.

Massive 6.3" Maxx Tires

Extreme Brushless Power goes wasted if the tires can't put the power to the ground. E-Maxx Brushless Edition has it covered with some of the toughest treads in Traxxas' arsenal, the aggressive Maxx tires used on the hard-hitting Revo 3.3 and T-Maxx 3.3. These massive meats offer tenacious grip, and their huge footprint gives E-Maxx greater stability and generous ground clearance for all-terrain fun. The tires are securely mounted to Split-Spoke wheels, now covered in sinister black chrome as part of the exclusive Brushless Edition look.

Adjustable Wheelie Bar

To handle extreme brushless power, the adjustable Traxxas wheelie bar is mandatory equipment for the E-Maxx Brushless Edition! Four snap-in adjustment positions allow you to choose how extreme you want your wheelie action to be. In the down position, it keeps the front end planted to show off E-Maxx's incredible acceleration. Raise the wheelie bar to its full-up position and the action gets wild, with giant wheelies that hang on as long as you keep mashing the throttle! The wheelie bar's unique design allows it to be easily removed in situations where you may not want the additional control.

New ProGraphix Body

E-Maxx Brushless Edition has a powerful presence even when it's standing still. The muscular lines of the new body evoke performance with bulging fender flares and cutting-edge graphics that put even custom painters to shame. The new, shorter cab enhances the long-and-low look while providing ample clearance for the motor.

High-Torque Digital Steering Servos

E-Maxx Brushless Edition is equipped for exceptional steering precision with dual high-torque servos. Each delivers 125 oz.-in. of torque for a combined 250 oz.-in. of steering muscle to command E-Maxx with authority at any speed. Twin servos are lighter and more compact than a single large servo, and together they deliver unmatched monster steering response. The servo saver rides on ball bearings to keep the steering response smooth and precise, and the servos' waterproof design seals out dirt and dust. In short, it's the most powerful and responsive Maxx steering system ever.

Brushless-Ready Heavy-Duty Transmission

The E-Maxx's single-speed Brushless-Ready transmission features an oversized steel idler gear and Torque-Control slipper clutch to handle the massive torque of the high-performance Castle Creations 2200Kv brushless motor. A unique single-piece gear cover can be removed and installed with a single hex screw for quick and easy gear access.

Extreme-Duty Torque-Control Slipper Clutch

E-Maxx Brushless Edition's Torque-Control slipper clutch uses new, aluminum friction pads and finned aluminum alloy pressure plates to dissipate heat and provide consistent traction control even with hard-hitting 6S LiPo power. The aluminum friction pads provide smooth, linear engagement you can count on, lap after lap. Spur gears can be removed and replaced without altering the slipper adjustment. A center ball bearing maintains precise, long-lasting alignment with near friction-free running and virtually zero maintenance. Originally developed for Revo, the Torque-Control slipper is more than tough enough for E-Maxx. Only Traxxas has it!

Extended Wheelbase, Low CG Chassis

Even at maximum speed, E-Maxx feels stable and controlled thanks to its extra-long 335mm wheelbase, 30mm longer than the original E-Maxx. The chassis also features battery compartments that position the batteries lower, angled in towards the center of the truck to lower its center of gravity. The result is improved handling and cornering stability. Heavy-duty chassis braces work together with a new center skid plate to greatly enhance chassis strength and torsional rigidity, so brushless horsepower is channeled into pure acceleration, not unwanted flex.

Quick Release Battery Hold Downs

The unique E-Maxx chassis design features innovative quick release battery hold downs that install or remove in seconds without clips or tools. The battery hold downs are reversible for use with stick or side-by-side style battery packs. An optional battery strap is available for use with oversized batteries.

Heavy Duty Chassis Braces with Transmission Skidplate

E-Maxx's heavy-duty chassis braces are coupled with an integrated transmission skid plate to provide rigid support that protects the center driveline and virtually eliminates power robbing chassis flex.

Revo-Spec Drivetrain

Building on the durability of the reliable and incredibly tough Revo drivetrain, E-Maxx incorporates sealed super-duty driveshafts and sealed pivot ball suspension. Heavy-duty axle carriers use large diameter rubber-sealed bearings for ultra-smooth running.

Sealed Revo-Spec Differentials

New Maxx differential housings feature tunable sealed differentials with Revo internals for maximum tuning ability. Precision sealed with Traxxas X-ring silicone seals, E-Maxx differentials are designed for long-lasting performance and the ability to tune for specific running conditions. Built to handle extreme torque and power, these differentials offer unmatched versatility and toughness.

Double-Shear Captured Linkages

E-Maxx features 100% double-shear connections to all steering and toe linkages to capture and secure all rod ends for unmatched durability. A thick tie-bar on the rear toe links further increases the double sheer strength.

8-Shock Maxx Suspension

E-Maxx continues the Maxx tradition with its incredible WideMaxx 4-wheel independent suspension. Wicked long travel, nearly 4 inches at each wheel, is ready to take on just about the roughest terrain you can imagine. Eight oil-filled shocks (two at each wheel) deliver that plush feel and 'bottomless' suspension travel the Maxx series trucks are famous for. The WideMaxx is fully tuneable for the track or extreme bashing with up to 10 shock-mounting positions, adjustable front caster angle, front and rear toe, and front and rear camber angles.

Oil-Filled Ultra Shocks

Traxxas oil-filled Ultra Shocks are fully tuneable for race-inspired performance. The spring pre-load is adjustable via precise clip-on spacers making it easy to know that each shock is adjusted to the same spec. Rubber pressure bladders prevent air pockets and foaming common with bladderless designs. Double O-ring seals in the shock body keep shock oil in and air out for consistent performance pack after pack.

Progressive Rate Powder Coated White Springs

Big brushless speed means E-Maxx Brushless Edition has to be prepared for bigger hits than ever, but simply installing stiffer springs would compromise E-Maxx's legendary plush ride. Progressive-rate springs are the answer; they soak up small bumps as a softer spring would, but when the conditions get rough and the jumps get big, the springs step up to the challenge by getting firmer as the suspension is compressed. The long-lasting, white powder-coated finish adds an extra dash of high-tech, high-contrast style to the E-Maxx platform.

Tough Composite Components

Improved body mounts, universal Maxx differential housings, strengthened gray composite chassis, and steel reinforced bulkheads increase durability for hardcore bashing.

Hex Hardware

Pro-quality, high-grade, metric hex-drive hardware is used throughout for extra strength and easy maintenance and repair. The black-oxide rust-resistant finish provides a high tech look and feel.

Rubber-Sealed Ball Bearings

Precision rubber-sealed bearings offer the ultimate in super low-friction performance and maximum protection in dirt and nitro environments. They are used in all exposed locations on the truck and are virtually maintenance free.

Over 4" Inches of Center Ground Clearance

The unique E-Maxx chassis design offers maximum center ground clearance (over 4 inches) to eliminate the high-centering and chassis dragging that plague flat-chassis monster trucks. Plus it maintains that tall, authentic monster truck look.

Features

• Includes two Traxxas Power Cell LiPo Battery packs (5000MAH, 11.1V, 25C, 3 cell)
  • Traxxas High-Current Battery Connectors
• Includes two 2-Cell/3-Cell LiPo Balance Chargers
• TQi 2.4GHz High Output radio system with Docking Base
  • TQi 2.4GHz High Output transmitter
  • TQi Docking Base
  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, "model selection" is not required
  • Multi-Function knob
  • Adjustable steering and throttle percentage (dual rates)
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle end points
  • High 13ms frame rate and near-zero latency for responsive control
  • Telemetry-ready 5-channel micro receiver with dual channel-1 input
  • Docking Base accepts iPhone and iPod touch (sold separately) for full Traxxas Link application functionality
  • Accessory speed, RPM, temperature, and voltage telemetry sensors available separately
  • TQi 2.4GHz 5-channel micro receiver (#6518) with fail-safe security and integrated telemetry ports
• Adjustable four-position wheelie bar
• Castle Creations Mamba Monster ESC
  • 6.5mm gold-plated connectors
  • Integrated cooling fan
  • Heavy-duty construction
• Castle Creations Mamba Monster 2200KV Motor
  • Machined heatsink can
  • 5mm rotor shaft
• Heavy-duty 17mm splined aluminum hex hubs and wheel nuts
• Tunable sealed differentials in Maxx differential housings
  • Backward compatible to all Maxx models
  • Differential uses Revo-Spec gears and components
• Revo-Spec front, rear, and center driveshafts
• New heavy-duty Brushless Ready transmission
  • Over two-times stronger than original E-Maxx transmission
  • Steel idler gear
  • Optional accessory two-speed adjustable ratio gear sets
• Revo-Spec Torque-Control slipper clutch
• Quick release  battery hold down straps
  • Reversible to accept stick packs and side-by-side packs
  • Available accessory battery strap for oversized battery packs (sold separately)
• Long wheelbase, low center-of-gravity chassis
  • Increased stability
  • Extended by 30mm
  • Accepts 6-cell or 7-cell flat battery packs and LiPo packs of similar size
  • Batteries sit lower in the chassis for lower CG
  • Lower skid plate protects the center driveline while allowing quick access to the transmission
• Waterproof high-torque dual steering servos (#2075)
• Four-channel 2.4GHz micro receiver
  • Two channel-one outputs for dual steering servos (no Y-harness required)
• Precision hex hardware throughout
• 6.3" diameter Maxx tires pre-glued on black-chrome Split-Spoke wheels
• Two-piece gear cover makes it easy to access and change gearing
  • Requires removal of only one screw for access
• Sealed pivot balls and front/rear outer driveshafts
• Eight fully-adjustable, coil-over Ultra Shocks
• Integrated dual servo bellcrank and servo saver
• Watertight sealed receiver box
• 100% captured steering and toe linkage
  • Double-shear components capture and secure all rod ends for unmatched durability
  • Rear toe links are captured by a thick tie-bar for double-shear strength
• Updated shock towers and adjustable body mounts
• Gray composite components
  • Chassis, skid plates, bulkheads, shock bodies, spur gear cover
• Precision rubber-sealed ball bearings
• Blue-anodized aluminum antenna crimp nut
• Four-position wheelie bar included
• Fully painted, trimmed, and decaled ProGraphix body



MODEL 3908L: Fully assembled, Ready-To-Race, with TQi 2.4GHz Radio System with Docking Base, installed telemetry sensors, Power Cell 5000mAh 3-cell LiPo batteries (2), Castle Creations Mamba Monster power system, and ProGraphix painted body.



Specification



E-MAXX BRUSHLESS EDITION (#3908L) SPECS

Length:   22.5 inches (571mm) Front Track:   16.5 inches (419mm) Rear Track:   16.5 inches (419mm) Center Ground Clearance:   4 inches (101mm) Weight:   154oz (4.36kg) Height (overall):   9.5 inches (241mm) Wheelbase:   13.2 inches (335mm) Front Shock Length:   XXLong Rear Shock Length:   XXLong Front Tires (pre-glued):   Maxx (6.3" x 3.8") Rear Tires (pre-glued):   Maxx (6.3" x 3.8") Front Wheels:   3.8" Split-Spoke (black chrome) Rear Wheels:   3.8" Split-Spoke (black chrome) Speed Control Type:   Castle Creations Mamba Monster Forward/Reverse/Brake Motor (electric):   Castle Creations Mamba Monster 2200KV Transmission:   Single-Speed (2nd gear only) Overall Drive Ratio:   20.88 (stock, out-of-box) Differential Type:   Bevel Gear, Sealed, Limited Slip Gear Pitch:   32-Pitch Chassis Structure/Material:   Molded Composite Nylon Tub Brake Type:   Electronic Drive System:   Shaft-Driven 4WD Steering:   Bellcrank Radio System:   TQi™ 2.4GHz Radio System with Docking Base Top Speed:   35+mph (65+mph w/ two 3S LiPo Batteries) Skill Level:   2 Included Batteries:   Two Traxxas Power Cell LiPo Batteries (5000MAH, 11.1V, 25C, 3S) Included Charger:   Two Traxxas 2-Cell / 3-Cell LiPo Balance Chargers Required Batteries:   4 "AA" (transmitter)

CASTLE CREATIONS MAMBA MONSTER ESC SPECS

Input voltage (cells):   18 NiCad/NiMH 6s LiPo (max: 25.2 volts) Case Size:   2.2”W x 1.9”D x 1.4”H Weight:   4.27 ounces (121 grams) On-Resistance­ (@Trans)–FWD/REV:   0.0003 per phase Reverse Delay:   Yes, with lockout Specs per Castle Creation's published specifications at the time of manufacture. Specifications subject to change.

MODEL 3908L: Fully assembled, Ready-To-Race, with TQi 2.4GHz Radio System with Docking Base, Castle Creations Mamba Monster Brushless System and ProGraphix painted body.

Click Here For More Information

Manual

• 3908/3908L Manual Spanish
• 3908/3908L Manual German
• 3908/3908L Manual French
• 3908/3908L Manual

Instructions

• Differential Rebuild Instructions (Covers #5379X, 5380, 5381, 5382X, 3978)
• 3395 Castle Creations Mamba Monster Installation
• E-Maxx Two-Speed Instructions (#3903, #3908) (covers part #3998)
• E-Maxx Voltage Sensor Installation
• E-Maxx Temp Sensor Installation
• E-Maxx Spur Gear Magnet Holder Installation
• E-Maxx RPM Sensor Installation
• Traxxas Power Cell Battery Application Guide (Counter Mat) (LiPo and NiMH)
• 5143R Toe Link Tubes (Rr, Aluminum) Instructions
• 4980X Differential Housing Addendum
• 4945 Steering Bellcrank Instructions
• 3927X Extended Battery Hold Down Instructions
• 5141R Toe Link Tubes (Fr, Aluminum) Instructions
• 4975 Wheelie Bar Instructions
• 4962 Big Bore Aluminum Shock Instructions
• 4957R Progressive Springs Instructions & Info
• 4091 On-Board Temperature Meter Instructions (for TRX engines)

Parts List

• 3908X Parts List
• 3908L Parts List

Exploded Views

• 3908 Transmission Exploded Views (E-Maxx Brushless, w/ TQi 2.4GHz/Docking Base)
• 3908 Rear Exploded Views (E-Maxx Brushless, w/ TQi 2.4GHz/Docking Base)
• 3908 Front Exploded Views (E-Maxx Brushless, w/ TQi 2.4GHz/Docking Base)
• 3908 Driveshaft Exploded Views (E-Maxx Brushless, w/ TQi 2.4GHz/Docking Base)
• 3908 Chassis Exploded Views (E-Maxx Brushless, w/ TQi 2.4GHz/Docking Base)

Miscellaneous
