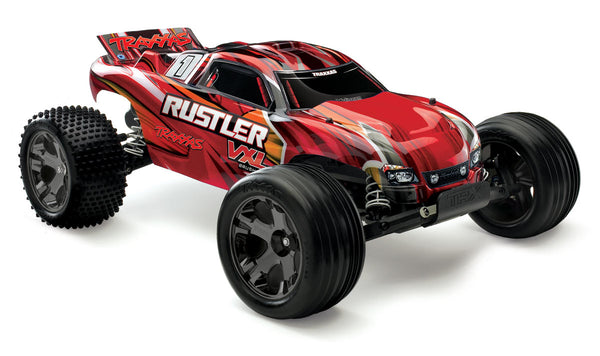

Traxxas 1/10 Scale Rustler VXL 2WD Brushless Stadium Truck - 3707L

About Traxxas 1/10 Scale Rustler VXL 2WD Brushless Stadium Truck - 3707L

The Fastest Ready-To-Race Electric Stadium Truck You Can Buy!

Now Includes Power Cell LiPo Battery and LiPo Balance Charger!

• Extreme Brushless Horsepower!
• TQi 2.4GHz Radio System
• Traxxas Power Cell LiPo Battery and LiPo Balance Charger Included!
• Waterproof Electronics for All-Weather Driving Excitement
• Top Speed: 70+mph!


Rustler VXL combines Velineon extreme brushless horsepower with the proven fun and durability that have made Rustler the number-1 selling electric stadium racer. The new Velineon Brushless Power System launches Rustler VXL to new heights with speed potential that reaches beyond 70mph! Hardcore, wheel-standing acceleration completely blows everything else away. Out of the box, Velineon is optimized to actually deliver the tire-melting horsepower, benchmark speed, and precision throttle response you expect from brushless. Best of all, it's brushless done the Traxxas way: wicked fast and easy to use. There's no tricky programming to figure out or a glossary of new vocabulary to learn. Just plug it in and it works.

The Velineon Brushless Power system takes the guesswork out of enjoying the benefits of world-class brushless power. The system components work together as an optimized package, engineered from the start to deliver the ultimate in efficiency, speed, and run time. With the Rustler VXL, Your battery selection determines your speed and skill level. Velineon accepts the widest range of battery types, including 3-cell Lithium Polymer packs (3S LiPo packs). These packs pump out over 11 volts of power for intense, skill level 5 speeds beyond 70mph! Nothing else even comes close. Built-in low-voltage detection in the VXL-3s Electronic Speed Control conveniently helps you maintain your LiPo battery packs in top condition.

Designed from the start for high-voltage, high-capacity LiPo packs, Traxxas’ Rustler VXL now includes a genuine Traxxas Power Cell LiPo battey—the only LiPos certified to deliver the full performance potential of Traxxas’ VXL brushless models. The Rustler VXL includes a 3300mAh Power Cell pack. Rustler VXL arrives with Low Voltage Detection activated to assure maximum battery life and prevent over-discharging.

Charging care is just as important to LiPo life and performance, so a 2-Cell / 3-Cell LiPo Balance charger is also included. Just plug the battery’s balance plug into the charger and you’re on the way to another run—no programming or settings required. Every time the pack is charged, the cells are charged individually to precisely balance voltage for optimum performance, run time, and cycle life. Experience the ultimate in electric horsepower with the only models designed for LiPo power from the start, and genuine Power Cell LiPo technology on board.

The World's Most Advanced Ready-To-Race Radio System

Rustler VXL is equipped with the world's most advanced Ready-To-Race radio system. The all-new Traxxas TQi arrives with a full complement of tuning features and offers the unbeatable convenience of "no channels, no crystals" 2.4GHz technology—but that's just the beginning. Automatic model recognition instantly recalls your settings for up to 30 Traxxas Link-enabled models. Just switch on and drive, no naming or "model memory" settings required. Power up the transmitter and the model you want to drive, and the settings for that model are dialed in immediately! The new TQi 2.4GHz transmitter is fully adjustable: steering and throttle end points can be set precisely, and the Multi-Function knob can be programmed to control Steering Sensitivity (Expo), Throttle Sensitivity (Expo), Steering Percentage (Dual Rate), Braking Percentage (Dual Rate), or Throttle Trim. TQi's ergonomic case design provides all-day driving comfort, and the unique internal antenna contributes to its sleek, modern look.

TQi Docking Base Compatible

The TQi's most important new feature may already be in your pocket. The TQi can be equipped with an optional Docking Base (#6510) that turns your iPhone or iPod touch (sold separately) into a powerful tuning tool for your Traxxas model. The full-color display combines with the free Traxxas Link App (on the App Store) to deliver an intuitive, high-definition, full-color graphical user interface that unlocks the mysteries of optimizing your radio system for ultimate vehicle control. Traxxas Link also opens the door to telemetry capability when you add optional sensors to your model. Click on one of the following links to learn more about the ground-breaking TQi radio system, TQi Docking Base, and the Traxxas Link Application.

Sealed Electronics Extend Your Driving Fun

Traxxas shocked enthusiasts with the release of our exclusive watertight, sealed electronics in the E-Maxx that provided the freedom to drive where you want to drive through water, mud, snow, and other wet-running conditions that wouldn't have been possible before. Now the Traxxas Rustler VXL is Ready-To-Race with this waterproof technology. The VXL-3s speed control, high torque servo, and mini receiver are sealed against the elements giving you the freedom go places you might not have thought possible. It opens up a whole new world of adventure and fun. Wet muddy tracks are no problem for the Rustler VXL.

The Velineon 3500 Brushless Motor is precision-matched for use in the 1/10th scale Rustler, delivering the perfect balance of brutal horsepower and efficiency. The sensorless design works with the sophisticated circuitry in the VXL-3s Electronic Speed Control for smooth starts and precise control, without the need for additional sensors and wiring. Since there are no brushes or commutator to cause friction and wear, Velineon brushless power is always fast, run after run.

The Velineon VXL-3s forward/reverse electronic speed control simplifies brushless technology with easy operation that gives you all the control you need for maximum fun. Quickly choose from 3 drive profiles in exactly the same manner as other Traxxas electronic speed controls (such as the XL-5). Profiles include: Sport, Race, and Training Mode (patent pending). Training Mode limits full-throttle power to 50% allowing young or new drivers to safely develop their control skills before unleashing the full-throttle capability of the Velineon system. Rustler VXL's performance can be tailored for drivers of any age and experience. High-frequency transistors and advanced circuit design deliver incredibly smooth and refined throttle control. With the VXL-3s you have the flexibility to use conventional brushed motors, brushless motors, and sensored brushless motors. The VXL-3s auto detects the motor type for you. High-current capacity (320 amps peak) and two-stage thermal protection frees you from motor limits.

The Rustler VXL is equipped to handle serious horsepower with features such as the advanced Revo-spec Torque-Control slipper clutch. The patent-pending design delivers smooth operation, precise adjustment, and consistent traction control, even when tortured with massive amounts of horsepower. New upgrades to the Rustler VXL include high-grade hex hardware, precision metal turnbuckle links with heavy-duty rod ends, and larger 5x11mm rubber-sealed ball bearings at the wheels. The transmission is beefed-up as well with tough new steel gears. With so much speed available, the Rustler VXL is equipped with a digital high-torque steering waterproof servo (#2075) for lightning-quick steering response and confidence-inspiring precision.

QUICK FEATURES ON RUSTLER VXL (#3707L)

• TQi 2.4GHz Radio System
• Waterproof Electronics
• Power Cell 3300mAh 2-Cell LiPo Battery
• 2-Cell/3-Cell LiPo Balance Charger
• Traxxas High-Current Connector
• Maxx Cable 12-gauge wiring
• Digital high-torque steering waterproof servo
• Precision steel turnbuckles with heavy-duty rod ends
• Metric hex hardware
• Front suspension tie bar
• Steel transmission gears
• 5x11 rubber sealed ball bearings at the wheels

Traxxas backs the Rustler VXL and all of their products with top-notch support that is second to none. A staff of skilled representatives is on-hand to answer your questions via phone, website, or email. Unmatched parts support allows Rustler VXL to be serviced with parts and support from thousands of hobby dealers worldwide. Your investment is also protected by the Traxxas Lifetime Electronics Warranty. Traxxas goes the extra mile to ensure that your R/C experience is easy and fun (and fast!). Follow the details link above to go in depth on all the Rustler VXL performance benefits and also be sure to check out the videos page to see Rustler VXL in action for yourself.

Anaconda 2.8" Tires (sold separately)

If your favorite place to race is an asphalt jungle, transform your Rustler VXL into an ultimate street machine with availableAnaconda 2.8" street treads. These sticky, high-traction tires are made for aggressive handling on paved surfaces. The proven Anaconda design features large tread blocks that provide incredible grip and long-wearing performance. Buy them pre-glued and ready to install for instant on-road action.

MODEL 3707L: Fully assembled, Ready-To-Race, TQi 2.4GHz Radio System, Velineon Brushless Power System, Power Cell 3300mAh 2-cell LiPo battery, LiPo Balance Charger, and ProGraphix painted body.

Details

 The World's Most Advanced Ready-To-Race Radio System

Total Control. Traxxas models deserve the world's most advanced Ready-To-Race radio system. The radio system after all is the sole connection between the driver and machine. It has to be precise, comfortable, powerful, and reliable. The all-new Traxxas TQiiradio system arrives with a full compliment of tuning features; long-range, high-output, 2.4GHz signal, and proven Traxxas reliability for rock-solid performance. It's so advanced; it doesn't even need an external antenna. However, the most important new feature may already be in your pocket. The TQi can be equipped with an optional Docking Base ((#6510#6510) that turns your iPhone or iPod touch into a powerful tuning tool for your Traxxas model. The full-color display combines with the  Traxxas Link App to deliver an intuitive, high-definition, full-color graphical user interface that unlocks the mysteries of optimizing your radio system for ultimate vehicle control.

5-channel Micro Receiver with Fail-Safe Security

The TQi 2.4GHz micro receiver fits easily into any vehicle, and features dual channel-1 outputs for easy installation in vehicles with dual steering servos—no Y-harness necessary! The integrated LINK button makes it fast and easy to bind the receiver, and the two-color LED indicates power-on and bind status for fool-proof control and convenience. Traxxas Link Model Memory allows the receiver to recognize up to thirty TQi 2.4Ghz Traxxas Link enabled transmitters—just switch on and drive. In the event of signal loss due to an accidental switch-off or depleted batteries, the receiver will automatically return the throttle to neutral and hold the last commanded steering position. The Fail Safe programming is built-in and does not need to be set or activated. Three telemetry ports are incorporated in the 5-channel receiver to allow real-time data to be transmitted from your Traxxas model to the TQi transmitter.

Sealed Watertight Receiver Box

Rustler VXL's receiver is fully enclosed for protection from the elements. The antenna and servo wires route neatly through a special watertight seal, and a custom blue O-ring seals the receiver box to protect the receiver from water. The receiver can be removed for service and aftermarket receivers can be installed without losing the sealing properties of the box. Patent pending.

Velineon VXL-3s ESC:

• Innovative waterproof design
• Three Programmable
  Drive Profiles:
  • Sport Mode - Forward / Brake / Reverse
  • Race Mode - Forward / Brake
  • Training Mode - 50% Forward / Brake / 50% Reverse (patent pending)
• Integrated on/off switch
• Traxxas EZ-Set one-button setup
• Large heat sink
• High-efficiency MOSFET transistors
• Auto-detects brushed, brushless, and sensored brushless motors
• Built-in two-stage low-voltage detection for LiPo batteries.
• NiCad and NiMH battery packs: 4-9 cells (4.8 to 10.8 volts)
• LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)

Designed from the start for high-voltage, high-capacity LiPo packs, Traxxas’ Rustler VXL now includes a genuine Traxxas Power Cell LiPo battey—the only LiPos certified to deliver the full performance potential of Traxxas’ VXL brushless models. The Rustler VXL includes a 3300mAh Power Cell pack. Rustler VXL arrives with Low Voltage Detection activated to assure maximum battery life and prevent over-discharging.

Charging care is just as important to LiPo life and performance, so a 2-Cell / 3-Cell LiPo Balance charger is also included. Just plug the battery’s balance plug into the charger and you’re on the way to another run—no programming or settings required. Every time the pack is charged, the cells are charged individually to precisely balance voltage for optimum performance, run time, and cycle life. Experience the ultimate in electric horsepower with the only models designed for LiPo power from the start, and genuine Power Cell LiPo technology on board.

Velineon 3500 Brushless Motor:

• Ultra high-temperature sintered Neodymium magnets
• Optimized for power and efficiency in 1/10th scale vehicles
• Consistent, high-power output, run after run
• Low-maintenance, unique Traxxas design
• Efficient, high-speed ball bearings
• Precision-balanced rotor
• Accessible solder tabs
• Protective end cap
• 10-Turn, 3500kV
• Rebuildable
• Hex hardware
• Brilliant blue-anodizing finish
• Silicon steel laminations
• Delivers more power than comparable brushed motors

Traxxas High-Current Connector

Rustler's Velineon Brushless Power System features the new Traxxas High-Current Connector. Designed to handle high-current applications, the Traxxas Connector effortlessly funnels your battery's total power to the electronics to keep things running cool and at full capacity.

Maxx Cable 12-Gauge Wire

This super-flexible, high-current, low-resistance 12-gauge, wire acts like a series of giant pipes, flowing energy in and out of the electronic speed control. The Traxxas Connector combined with Maxx cable is a better engineered solution for extracting all the power your battery has to give.

Hex Hardware

Pro-quality, high-grade, metric hex-drive hardware is used throughout for extra strength, and easy maintenance and repair. The black-oxide rust-resistant finish provides a high tech look and feel.

Rubber-Sealed Ball Bearings

Precision 5x11mm rubber-sealed bearings offer the ultimate in super low-friction performance and maximum protection in dirty environments. They are used in all exposed locations on the truck and are virtually maintenance free.

Heavy-Duty Hub Carriers & Steering Blocks

Rustler VXL features all new ball bearing front steering blocks and rear hub carriers. They utilize large 5x11mm ball bearings for long-term precision performance, smooth operation, and increased durability.

Adjustable Steel Turnbuckles

Factory fitted, heavy-duty steel turnbuckles allow camber and toe tuning. Rustler VXL is completely adjustable right out of the box to fine tune handling agility and high-speed performance. Captured rod ends provide unmatched durability and they simply won't pop off.

Tires and Wheels

The Rustler VXL features new 2.8" All-Star black-chrome wheels.­ Alias rear tires feature a step-pin design, front Alias ribbed tires provide superior control, and performance-engineered foam inserts keep the truck firmly planted on extreme off-road terrain.

The black-chrome All-Star wheels feature a lightweight horizontal bead that holds the tire to the rim even under extreme rpm. Performance-designed foam inserts are standard and all tires come pre-glued from the factory to get you rolling right out of the box.

Anaconda 2.8" Tires (sold separately)

If your favorite place to race is an asphalt jungle, transform your Rustler VXL into a menacing street machine with available Anaconda 2.8" street treads. These sticky, high-traction tires are made for aggressive handling on paved surfaces. The proven Anaconda design features large tread blocks that provide incredible grip and long-wearing performance. Buy them pre-glued and ready to install for instant on-road action. With Rustler VXL's amazing 70+mph performance, you'll have the on-road touring crowd headed back to the workbench to try and figure out how to catch you.

Revo-spec Torque-Control Slipper Clutch

Revo technology is utilized to manage the increased power from the Velineon 3500 brushless motor. The Torque-Control slipper clutch uses special semi-metallic friction material and finned aluminum alloy pressure plates to dissipate heat and provide consistent yet adjustable traction control. The semi-metallic friction material remains stable across a wide temperature range to provide smooth, linear engagement you can count on, run after run. Spur gears can be removed and replaced without altering the slipper adjustment.

Included Optional Pinion Gear

The Rustler VXL reaches a scorching 70+mph top speed using an optional 31-tooth pinion gear, 76-tooth spur gear, and a 3-cell 11.1V Lithium-polymer battery pack (sold separately). Out of the box, the installed 25-tooth pinion gear is just right for all-around, on or off-road action. Installing the included optional 28-tooth pinion gear opens the door to breakneck 60+mph speeds!

Magnum 272 Transmission

The Rustler VXL's Magnum 272 transmission is assembled with new all metal gear internals riding on ultra-smooth sealed ball bearings. Combined with the smooth 48-pitch gears, power is delivered quietly to the durable telescoping U-joint driveshafts. The sealed gearbox protects the transmission components from dirt and rocks.



Planetary Gear Differential

The composite Traxxas planetary gear differential now features a steel ring gear with a nylon housing for long life.­ It uses hardened steel internal gears for maximum strength during rigorous off-road bashing. This type of differential requires virtually no maintenance and its efficient design puts maximum tire-shredding torque to the wheels.

New Yokes with Telescopic Driveshafts

Rustler VXL features new drive yokes which are designed to provide maximum durability to withstand the extreme power of the Velineon Brushless Power System. The slider driveshafts are extremely durable, and they allow greater articulation for increased suspension travel.

Gray Nylon Composite Parts

The durable monocoque chassis tub is made from highest quality nylon composites. Many parts including the chassis, shock bodies, and transmission housing are molded in gray for a fresh high-tech look.

Powder Coated White Springs

New white springs feature a race-tuned spring rate for more responsive handling and the long-lasting, white powder coated finish sets Rustler apart from the pack.

Securely Mounted Electronics

The ESC and receiver are screwed to the chassis for ultimate mounting security. There's no servo tape to loosen over time with dirt, heat, and collisions.

ProGraphix Bodies

The new low-profile, aggressive Rustler VXL's body comes fully trimmed and painted. The rear wing mounts to the body using countersunk aluminum hardware for unmatched strength. The Rustler VXL ProGraphix body is available in red, blue, black, and silver. Decals are also applied to save you time and get you driving just minutes out of the box. Traxxas' ProGraphix bodies are the hottest looking bodies around and are only available on Traxxas Ready-To-Race models.

Digital High-Torque Waterproof Steering Servo

A race truck needs a powerful steering servo for responsive performance. A Traxxas digital high-torque, ball bearing steering servo comes standard for precision control, quick response, and unmatched torque—all in a waterproof case. It has over 50% more torque than the Rustler's 2056 servo and is 25% faster! That's 125 oz-in torque, 0.16-second speed!

Oil-Filled Ultra Shocks

Rustler's oil-filled Ultra Shocks utilize X-ring technology for a perfect seal and super-smooth performance. They are fully tunable with a wide range of oils, springs, and pistons. Features include pressure bladders for air/oil separation and spring clips to precisely change the ride height and spring pre-load. They can be renewed in minutes with our inexpensive rebuild kits.

Bellcrank Steering

High-performance bellcrank steering system minimizes bump steer to increase cornering stability.

Suspension Tie Bar

The composite tie bar strengthens the front bulkhead and suspension arms for increased durability.

Features

• Powered by the Velineon Brushless Power System
• Rustler VXL reaches speeds in excess of 70mph!
• Traxxas High-Current Connector allows high-capacity battery packs to deliver maximum voltage to the Velineon Brushless Power System
• Exclusive waterproof electronics extend brushless power and performance to water, mud, and snow.
• Maxx Cable 12-gauge wire
• Velineon VXL-3s Electronic Speed Control
  • LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
  • Auto-detects brushed, sensorless and sensored brushless motors
  • Sport Mode – Forward / Brake / Reverse
  • Race Mode – Forward / Brake
  • Training Mode - 50% Forward / Brake / 50% Reverse (patent pending)
• Velineon 3500 Brushless Motor
  • Consistent, high-power output, run after run
  • Low-maintenance, unique Traxxas design
  • Efficient, high-speed ball bearings
  • Precision-balanced rotor
• TQi 2.4GHz transmitter
  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
  • Multi-Function knob
  • Adjustable steering and throttle percentage (dual rates)
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle end points
  • High 13ms frame rate and near-zero latency for responsive control
  • TQi 2.4GHz 5-channel micro receiver (#6518) with fail-safe security and integrated telemetry ports
  • Compatible with optional TQi Docking Base (#6510) to access full Traxxas Link app functionality
• Digital high-torque Traxxas 2075 waterproof steering servo
• Durable steel Jato-Style turnbuckles and captured rod ends
• Efficient Magnum 272 steel-gear transmission with ball bearings
• Sealed gearbox protects the transmission with beefed up motor guard for extra protection
• Revo-Spec Torque-Control slipper clutch system
• External gear cover with easy slipper access
• Reliable composite planetary gear differential
• Updated heavy-duty telescoping U-joint driveshafts and yokes
• Fiber-composite monocoque chassis
• Speed control and receiver are securely fastened to chassis
• Easy access battery compartment
• Fully adjustable Ultra Shocks with X-ring technology
• White powder coated shock springs feature a responsive spring rate
• Alias step-pin rear tires and front Alias ribbed front tires offer superior
  off-road traction.
• Rustler's tires include performance foam inserts and they come
  pre-glued on mirror-chrome 2.8" All-Star wheels.
• New ProGraphix multi-colored painted body is available in red, blue, black, and white.
  • Wing is securely attached to the body with precision hex hardware
• Rustler is backed by unparalleled Traxxas support and parts availability.


MODEL 3707L: Fully assembled, Ready-To-Race, TQi 2.4GHz Radio System, Velineon Brushless Power System, Power Cell 3300mAh 2-cell LiPo battery, LiPo Balance Charger, and ProGraphix painted body.

Specification

RUSTLER VXL (#3707L) SPECS

Length:		17.5" (445mm)
Front Track:		12.25" (311mm)
Rear Track:		12.25" (311mm)
Weight:		59.6oz (1.69 kg)
Height (overall):		7" (178mm)
Wheelbase:		11.375" (289mm)
Front Shock Length:		Long
Rear Shock Length:		XXLong
Front Tires (pre-glued):		Alias Ribbed 2.8"
Rear Tires (pre-glued):		Alias Step-Pin 2.8"
Front Wheels:		2.8" Black-Chome (All-Stars)
Rear Wheels:		2.8" Black-Chome (All-Stars)
Electronic Speed Control:		VXL-3s Electronic Speed Control
Motor (electric):		Velineon 3500 Brushless
Gear Ratio (internal):		2.72 (final drive: 9.05)
Differential Type:		Planetary
Gear Pitch:		48-Pitch
Transmission:		Magnum 272
Steering:		Bellcrank
Chassis Type:		Modified Tub
Chassis Material:		Composite Nylon
Radio System:		TQi 2.4GHz Radio System
Top-Speed:		70+mph
Skill Level:		4
Battery Tray Dimensions:		139mm x 47.5mm x 28mm
Included Batteries:		Traxxas Power Cell LiPo Battery (3300MAH, 7.4V, 25C, 2S)
Included Charger:		Traxxas 2-Cell / 3-Cell LiPo Balance Charger
Required Batteries:		4 "AA" (transmitter)

RUSTLER VXL SPEED & SKILL LEVEL CHART

SPEED	35+mph	45+mph	65+mph	70mph & beyond
GEARING pinion/spur	25/83	28/83 (included)	31/76 (sold separately)	31/76 (sold separately)
BATTERY	6-Cell NiMH	7-Cell NiMH	3S 20C Lipo	3S 20C LiPo
NOMINAL VOLTAGE	7.2V	8.4V	11.1V	11.1V
mAh	3000+ mAh	4000+ mAh (#2951)	4000+ mAh (#2849)	8000+ mAh (#2857)
SKILL LEVEL	1	2	5	5

VXL-3s (WATERPROOF) ESC SPECIFICATIONS

Input Voltage:		NiCad/NiMH 4-9 Cells (4.8 to 10.8 Volts DC); LiPo 2-3 Cells (7.4 to 11.1 Volts DC)
Case Size:		39mmW x 55mmD x 33mmH
Weight:		90 grams
Motor Limit (Brushed/Brushless):		No motor limit
On Resistance Forward:		0.00075 Ohms
On Resistance Reverse:		0.00075 Ohms
Peak Current - Forward:		320A
Peak Current - Reverse:		320A
Braking Current:		320A
Continuous Current:		200A
BEC Voltage:		6.0 V
BEC Current:		2.5A (with 6-cell NiMH)
Power Wire:		12-Gauge Maxx Cable
Input Harness Wire:		26 Gauge / 100mm
Transistor Type:		MOSFET
Low Voltage Detection:		2-Stage indicators, switchable (on or off)
Thermal Protection:		2-Stage thermal shutdown
Profile selection:		Sport Mode:     100% FWD, 100% BRAKES, 100% REV Race Mode:     100% FWD, 100% BRAKES, NO REV Training Mode:     50% FWD, 100% BRAKES, 50% REV
Single-Button Setup:		Yes, Traxxas EZ-Set
Battery Input Connector:		Traxxas High-Current Connector
Motor Types (Autodetect):		Brushed, brushless, sensored brushless
Ports:		RX Input, motor sensor, auxiliary fan

MODEL 3707L: Fully assembled, Ready-To-Race, TQi 2.4GHz Radio System, Velineon Brushless Power System, Power Cell 3300mAh 2-cell LiPo battery, LiPo Balance Charger, and ProGraphix painted body.

Click here for more Information

Manual

• 2407/3607/3707 and 2407L/3607L/3707L Manual Spanish
• 2407/3607/3707 and 2407L/3607L/3707L Manual German
• 2407/3607/3707 and 2407L/3607L/3707L Manual French
• 2407/3607/3707 and 2407L/3607L/3707L Manual

Instructions

• 2662 Big Bore Shock Installation
• 5862 Big Bore Shock Installation
• Rustler-Bandit-Stampede-Slash Voltage Sensor Installation
• Rustler-Bandit-Stampede-Slash RPM Sensor Installation
• Traxxas Power Cell Battery Application Guide (Counter Mat) (LiPo and NiMH)
• 4091 On-Board Temperature Meter Instructions (for TRX engines)

Parts List

• 3707L Parts List
• 3707X Parts List

Exloded Views

• 3707L Front Exploded Views
• 3707L Chassis Exploded Views
• 3707L Transmission Exploded Views
• 3707L Rear Exploded Views

Watch A Video of This Model

Video - 1

Video - 2
