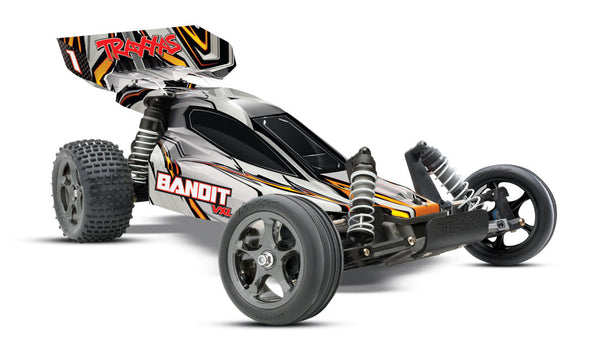

Traxxas 1/10 Scale Bandit VXL Brushless Electric Buggy - 2407L

About Traxxas 1/10 Scale Bandit VXL Brushless Electric Buggy - 2407L

The Fastest Ready-To-Race Electric Buggy! Now Includes Power Cell LiPo Battery and LiPo Balance Charger!

• Extreme Brushless Horsepower!
• TQi 2.4GHz Transmitter and Receiver
• Traxxas Power Cell LiPo Battery and LiPo Balance Charger Included!
• Waterproof Electronics for All-Weather Driving Excitement
• Top Speed: 70+mph!



The Bandit VXL expands the Extreme Sports Buggy Legacy with even more power than you ever thought possible. The new Velineon Brushless Power System accelerates Bandit VXL into the stratosphere with jet-like thrust and incredible 70+mph top speed! The Bandit VXL is a low-slung, lightweight speed machine that's rocket fast on pavement and rips incredible roost off-road. Get a pair of Bandits together and the race is on. Bandit VXL is a driver's machine that will put your skills to the test with its mind-blowing top speed and lightning quick handling response.

Out of the box, the Velineon Brushless Power System is optimized to put down the tire-melting horsepower, neck-snapping speed, and precision throttle response you expect from brushless. Most of all, it's brushless done the Traxxas way: wicked fast and easy to use. Just plug it in for an instant rush of power and adrenaline.

Designed from the start for high-voltage, high-capacity LiPo packs, Traxxas’ Bandit VXL now includes a genuine Traxxas Power Cell LiPo battey—the only LiPos certified to deliver the full performance potential of Traxxas’ VXL brushless models. The Bandit VXL includes a 3300mAh Power Cell pack. Bandit VXL arrives with Low Voltage Detection activated to assure maximum battery life and prevent over-discharging.





Charging care is just as important to LiPo life and performance, so a 2-Cell / 3-Cell LiPo Balance charger is also included. Just plug the battery’s balance plug into the charger and you’re on the way to another run—no programming or settings required. Every time the pack is charged, the cells are charged individually to precisely balance voltage for optimum performance, run time, and cycle life. Experience the ultimate in electric horsepower with the only models designed for LiPo power from the start, and genuine Power Cell LiPo technology on board.



The Velineon Brushless Power system takes the guesswork out of enjoying the benefits of world-class brushless power. The system components work together as an optimized package, engineered from the start to deliver the ultimate in efficiency, speed, and run time. With the Bandit VXL, your battery selection determines your speed and skill level. Velineon accepts the widest range of battery types, including 3-cell Lithium Polymer packs (3S LiPo packs). These packs pump out over 11 volts of power for intense, skill level 5 speeds beyond 70mph! Nothing else even comes close. Built-in low-voltage detection in the VXL-3s Electronic Speed Control conveniently helps you maintain your LiPo battery packs in top condition.

The World's Most Advanced Ready-To-Race Radio System

Bandit VXL is equipped with the world's most advanced Ready-To-Race radio system. The all-new Traxxas TQi arrives with a full complement of tuning features and offers the unbeatable convenience of "no channels, no crystals" 2.4GHz technology—but that's just the beginning. Automatic model recognition instantly recalls your settings for up to 30 Traxxas Link-enabled models. Just switch on and drive, no naming or "model memory" settings required. Power up the transmitter and the model you want to drive, and the settings for that model are dialed in immediately! The new TQi 2.4GHz transmitter is fully adjustable: steering and throttle end points can be set precisely, and the Multi-Function knob can be programmed to control Steering Sensitivity (Expo), Throttle Sensitivity (Expo), Steering Percentage (Dual Rate), Braking Percentage (Dual Rate), or Throttle Trim. TQi's ergonomic case design provides all-day driving comfort, and the unique internal antenna contributes to its sleek, modern look.

TQi Docking Base Compatible

The TQi's most important new feature may already be in your pocket. The TQi can be equipped with an optional Docking Base (#6510) that turns your iPhone or iPod touch (sold separately) into a powerful tuning tool for your Traxxas model. The full-color display combines with the free Traxxas Link App (on the App Store) to deliver an intuitive, high-definition, full-color graphical user interface that unlocks the mysteries of optimizing your radio system for ultimate vehicle control. Traxxas Link also opens the door to telemetry capability when you add optional sensors to your model. Click on one of the following links to learn more about the ground-breaking TQi radio system, TQi Docking Base, and the Traxxas Link Application.

Sealed Electronics Extend Your Driving Fun

Traxxas shocked enthusiasts with the release of our exclusive watertight, sealed electronics in the E-Maxx that provided the freedom to drive where you want to drive through water, mud, snow, and other wet-running conditions that wouldn't have been possible before. Now the Traxxas Bandit VXL is Ready-To-Race with this waterproof technology. The VXL-3s speed control, high torque servo, and mini receiver are sealed against the elements giving you the freedom go places you might not have thought possible. It opens up a whole new world of adventure and fun. Wet muddy tracks are no problem for the Bandit VXL.

The Velineon 3500 Brushless Motor is precision-matched for use in the 1/10th scale Bandit, delivering the perfect balance of brutal horsepower and efficiency. The sensorless design works with the sophisticated circuitry in the VXL-3s Electronic Speed Control for smooth starts and precise control, without the need for additional sensors and wiring. Since there are no brushes or commutator to cause friction and wear, Velineon brushless power is always fast, run after run.



The Velineon VXL-3s forward/reverse electronic speed control simplifies brushless technology with easy operation that gives you all the control you need for maximum fun. Quickly choose from 3 drive profiles in exactly the same manner as other Traxxas electronic speed controls (such as the XL-5). Profiles include: Sport, Race, and Training Mode (patent pending). Training Mode limits full-throttle power to 50% allowing young or new drivers to safely develop their control skills before unleashing the full-throttle capability of the Velineon system. Bandit VXL's performance can be tailored for drivers of any age and experience. High-frequency transistors and advanced circuit design deliver incredibly smooth and refined throttle control. With the VXL-3s you have the flexibility to use conventional brushed motors, brushless motors, and sensored brushless motors. The VXL-3s auto detects the motor type for you. High-current capacity (320 amps peak) and two-stage thermal protection frees you from motor limits.

The Bandit VXL is equipped to handle serious horsepower with features such as the advanced Revo-Spec Torque-Control slipper clutch. The patent-pending design delivers smooth operation, precise adjustment, and consistent traction control, even when tortured with massive amounts of horsepower. New upgrades to the Bandit VXL include high-grade hex hardware, precision metal turnbuckle links with heavy-duty rod ends, and larger 5x11mm rubber-sealed ball bearings at the wheels. The transmission is beefed-up as well with tough new steel gears. With so much speed available, the Bandit VXL is equipped with an all-new digital high-torque steering waterproof servo (#2075) for lightning-quick steering response and confidence-inspiring precision.

 QUICK FEATURES ON BANDIT VXL (#2407L)

• TQi 2.4GHz Transmitter and Receiver
• Traxxas Power Cell LiPo battery and balance charger included!
• Waterproof Electronics
• Traxxas High-Current Connector
• Maxx Cable 12-gauge wiring
• Digital high-torque steering waterproof servo
• Precision steel turnbuckles with heavy-duty rod ends
• Metric hex hardware
• Front suspension tie bar
• Steel transmission gears
• 5x11 rubber sealed ball bearings at the wheels

The Bandit is 100% Ready-To-Race right out of the box with the TQi 2.4GHz radio system, and the Velineon Brushless Power System. Just take the Bandit VXL out of the box, charge up a battery, and drive!

Anaconda 2.2" Tires (sold separately)

If your favorite place to race is an asphalt jungle, transform your Bandit VXL into an ultimate street machine with available Anaconda 2.2" street treads. These sticky, high-traction tires are made for aggressive handling on paved surfaces. The proven Anaconda design features large tread blocks that provide incredible grip and long-wearing performance. Buy them pre-glued and ready to install for instant on-road action.

Follow the details link above to go in depth on all the Bandit VXL performance benefits and also be sure to check out the videos page to see Bandit VXL in action for yourself.

MODEL 2407L: Fully assembled, Ready-To-Race, TQi 2.4GHz radio system, Velineon Brushless Power System, Power Cell 3300mAh 2-cell LiPo Batter, LiPo Balance Charger, and ProGraphix painted body.

Details

The World's Most Advanced Ready-To-Race Radio System

Total Control. Traxxas models deserve the world's most advanced Ready-To-Race radio system. The radio system after all is the sole connection between the driver and machine. It has to be precise, comfortable, powerful, and reliable. The all-new Traxxas TQi radio system arrives with a full compliment of tuning features; long-range, high-output, 2.4GHz signal, and proven Traxxas reliability for rock-solid performance. It's so advanced; it doesn't even need an external antenna. However, the most important new feature may already be in your pocket. The TQi can be equipped with an optional Docking Base (#6510) that turns your iPhone or iPod touch into a powerful tuning tool for your Traxxas model. The full-color display combines with the Traxxas Link App to deliver an intuitive, high-definition, full-color graphical user interface that unlocks the mysteries of optimizing your radio system for ultimate vehicle control.



5-channel Micro Receiver with Fail-Safe Security

The TQi 2.4GHz micro receiver fits easily into any vehicle, and features dual channel-1 outputs for easy installation in vehicles with dual steering servos—no Y-harness necessary! The integrated LINK button makes it fast and easy to bind the receiver, and the two-color LED indicates power-on and bind status for fool-proof control and convenience. Traxxas Link Model Memory allows the receiver to recognize up to thirty TQi 2.4Ghz Traxxas Link enabled transmitters—just switch on and drive. In the event of signal loss due to an accidental switch-off or depleted batteries, the receiver will automatically return the throttle to neutral and hold the last commanded steering position. The Fail Safe programming is built-in and does not need to be set or activated. Three telemetry ports are incorporated in the 5-channel receiver to allow real-time data to be transmitted from your Traxxas model to the TQi transmitter.

Sealed Watertight Receiver Box

Bandit VXL's receiver is fully enclosed for protection from the elements. The antenna and servo wires route neatly through a special watertight seal, and a custom blue O-ring seals the receiver box to protect the receiver from water. The receiver can be removed for service and aftermarket receivers can be installed without losing the sealing properties of the box. Patent pending.



Velineon VXL-3s ESC:

• Innovative waterproof design
• Three Programmable
• Drive Profiles:
  • Sport Mode - Forward / Brake / Reverse
  • Race Mode - Forward / Brake
  • Training Mode - 50% Forward / Brake / 50% Reverse
• Integrated on/off switch
• Traxxas EZ-Set one-button setup
• Large heat sink
• High-efficiency MOSFET transistors
• Auto-detects brushed, brushless, and sensored brushless motors
• Built-in two-stage low-voltage detection for LiPo batteries.
• NiCad and NiMH battery packs: 4-9 cells (4.8 to 10.8 volts)
• LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)

Designed from the start for high-voltage, high-capacity LiPo packs, Traxxas’ Bandit VXL now includes a genuine Traxxas Power Cell LiPo battey—the only LiPos certified to deliver the full performance potential of Traxxas’ VXL brushless models. The Bandit VXL includes a 3300mAh Power Cell pack. Bandit VXL arrives with Low Voltage Detection activated to assure maximum battery life and prevent over-discharging.

Charging care is just as important to LiPo life and performance, so a 2-Cell / 3-Cell LiPo Balance charger is also included. Just plug the battery’s balance plug into the charger and you’re on the way to another run—no programming or settings required. Every time the pack is charged, the cells are charged individually to precisely balance voltage for optimum performance, run time, and cycle life. Experience the ultimate in electric horsepower with the only models designed for LiPo power from the start, and genuine Power Cell LiPo technology on board.



Velineon 3500 Brushless Motor:

• Ultra high-temperature sintered Neodymium magnets
• Optimized for power and efficiency in 1/10th scale vehicles
• Consistent, high-power output, run after run
• Low-maintenance, unique Traxxas design
• Efficient, high-speed ball bearings
• Precision-balanced rotor
• Accessible solder tabs
• Protective end cap
• 10-Turn, 3500kV
• Rebuildable
• Hex hardware
• Brilliant blue-anodizing finish
• Silicon steel laminations
• Delivers more power than comparable brushed motors

Traxxas High-Current Connector

Bandit's Velineon Brushless Power System features the new Traxxas High-Current Connector. Designed to handle high-current applications, the Traxxas Connector effortlessly funnels your battery's total power to the electronics to keep things running cool and at full power.



Maxx Cable 12-Gauge Wire

This super-flexible, high-current, low-resistance 12-gauge, wire acts like a series of giant pipes, flowing energy in and out of the electronic speed control. The Traxxas Connector combined with Maxx cable is a better engineered solution for extracting all the power your battery has to give.


Hex Hardware

Pro-quality, high-grade, metric hex-drive hardware is used throughout for extra strength, and easy maintenance and repair. The black-oxide rust-resistant finish provides a high tech look and feel.

Rubber-Sealed Ball Bearings

Precision 5x11mm rubber-sealed bearings offer the ultimate in super low-friction performance and maximum protection in dirty environments. They are used in all exposed locations on the truck and are virtually maintenance free.


Heavy-Duty Hub Carriers & Steering Blocks

Bandit VXL features all new ball bearing front steering blocks and rear hub carriers. They utilize large 5x11mm ball bearings for long-term precision performance, smooth operation, and increased durability.

Adjustable Steel Turnbuckles

Factory fitted, heavy-duty steel turnbuckles allow camber and toe tuning. Bandit VXL is completely adjustable right out of the box to fine tune handling agility and high-speed performance. Captured rod ends provide unmatched durability and they simply won't pop off.



Tires and Wheels

Bandit VXL comes with stylish 2.2" Tracer black-chrome five-spoke wheels. Performance-designed Alias 2.2" rear tires feature a step-pin design and come pre-glued from the factory. Alias ribbed front tires offer superior directional control. The tire combination provides sure-footed traction on a variety of off-road terrains. The industry standard 2.2" Tracer wheels allow for a wide array of accessory tires to be installed, including the Traxxas Anaconda 2.2" street tires for Bandit and other buggies. The look is unmistakeable.

Anaconda 2.2" Tires (sold separately)

If your favorite place to race is an asphalt jungle, transform your Bandit into a menacing street machine with available Anaconda 2.2" street treads. These sticky, high-traction tires are made for aggressive handling on paved surfaces. The proven Anaconda design features large tread blocks that provide incredible grip and long-wearing performance. Buy them pre-glued and ready to install for instant on-road action. With Bandit VXL's amazing 70+mph performance, you'll have the on-road touring crowd headed back to the workbench to try and figure out how to catch you.

Revo-Spec Torque-Control Slipper Clutch

Revo technology is utilized to manage the increased power from the Velineon 3500 brushless motor. The Torque-Control slipper clutch uses special semi-metallic friction material and finned aluminum alloy pressure plates to dissipate heat and provide consistent yet adjustable traction control. The semi-metallic friction material remains stable across a wide temperature range to provide smooth, linear engagement you can count on, run after run. Spur gears can be removed and replaced without altering the slipper adjustment. (patent pending)

Included Optional Pinion Gear

The Bandit VXL reaches a scorching 70+mph top speed using an optional33-tooth pinion gear and a 3-cell 11.1V Lithium-polymer battery pack (sold separately). Out of the box, the installed 26-tooth pinion gear is just right for all-around, on or off-road action. Installing the included optional 28-tooth pinion gear opens the door to 60+mph speeds.

Magnum 272 Transmission

The Bandit VXL's Magnum 272 transmission is assembled with new all metal gear internals riding on ultra-smooth sealed ball bearings. Combined with the smooth 48-pitch gears, power is delivered quietly to the durable telescoping U-joint driveshafts. The sealed gearbox protects the transmission components from dirt and rocks.

Planetary Gear Differential

The composite Traxxas planetary gear differential now features a steel ring gear with a nylon housing for long life.­ It uses hardened steel internal gears for maximum strength during rigorous off-road bashing. This type of differential requires virtually no maintenance and its efficient design puts maximum tire-shredding torque to the wheels.

Drive Yokes with Telescopic Driveshafts

Bandit VXL features new drive yokes which are designed to provide maximum durability to withstand the extreme power of the Velineon Brushless Power System. The slider driveshafts are extremely durable, and they allow greater articulation for increased suspension travel.

Gray Nylon Composite Parts

The durable monocoque chassis tub is made from highest quality nylon composites. Many parts including the chassis, shock bodies, and transmission housing are molded in gray for a fresh high-tech look.



Powder Coated White Springs

White springs feature a race-tuned spring rate for more responsive handling and the long-lasting, white powder coated finish sets Bandit VXL apart from the pack.

Securely Mounted Electronics

The ESC and receiver are screwed to the chassis for ultimate mounting security. There's no servo tape to loosen over time with dirt, heat, and collisions.



ProGraphix Bodies

The new low-profile, aggressive Bandit VXL's body comes fully trimmed and painted. The Bandit VXL ProGraphix body is available in red, blue, black, and silver. Decals are also applied to save you time and get you driving just minutes out of the box. Traxxas' ProGraphix bodies are the hottest looking bodies around and are only available on Traxxas Ready-to-Race models.

Digital High-Torque Waterproof Steering Servo

A race buggy needs a powerful steering servo for responsive performance. A Traxxas digital high-torque, ball bearing steering servo (#2075) comes standard for precision control, quick response, and unmatched torque—all in a waterproof case. It has over 50% more torque than the Bandit's 2056 servo and is 25% faster! That's 125 oz-in torque, 0.16-second speed!


Oil-Filled Ultra Shocks

Bandit VXL's oil-filled Ultra Shocks utilize X-ring technology for a perfect seal and super-smooth performance. They are fully tunable with a wide range of oils, springs, and pistons. Features include pressure bladders for air/oil separation and spring clips to precisely change the ride height and spring pre-load. They can be renewed in minutes with our inexpensive rebuild kits.

Bellcrank Steering

High-performance bellcrank steering system minimizes bump steer to increase cornering stability.

Suspension Tie Bar

The composite tie bar strengthens the front bulkhead and suspension arms for increased durability.

Secure Wing Mount

For secure wing mounting a Z-bent wire mount keeps the wing held solidly in place. The wing's new design makes it easy to remove and re-install for fast battery changes.



Features

• Powered by the Velineon Brushless Power System
• Bandit VXL reaches speeds in excess of 70mph!*
• Traxxas High-Current Connector allows high-capacity battery packs to deliver maximum voltage to the Velineon Brushless Power System
• Exclusive waterproof electronics extend brushless power and performance to water, mud, and snow.
• Maxx Cable 12-gauge wire
• Velineon VXL-3s Electronic Speed Control

• LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
• Auto-detects brushed, sensorless and sensored brushless motors
• Sport Mode – Forward / Brake / Reverse
• Race Mode – Forward / Brake
• Training Mode - 50% Forward / Brake / 50% Reverse (patent pending)

• Velineon 3500 Brushless Motor

• Consistent, high-power output, run after run
• Low-maintenance, unique Traxxas design
• Efficient, high-speed ball bearings
• Precision-balanced rotor

• TQi 2.4GHz radio system

• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
• Multi-Function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• High 13ms frame rate and near-zero latency for responsive control
• TQi 2.4GHz 5-channel micro receiver (#6518) with fail-safe security and integrated telemetry ports
• Compatible with optional TQi Docking Base (#6510) for full Traxxas Link App

• Digital high-torque Traxxas 2075 waterproof steering servo
• Durable steel Jato-Style turnbuckles and captured rod ends
• Efficient Magnum 272 steel-gear transmission with ball bearings
• Sealed gearbox protects the transmission with beefed up motor guard for extra protection
• Revo-Spec Torque-Control slipper clutch system
• External gear cover with easy slipper access
• Reliable composite planetary gear differential
• Updated heavy-duty telescoping U-joint driveshafts and yokes
• Fiber-composite monocoque chassis
• Speed control and receiver are securely fastened to chassis
• Easy access battery compartment
• Fully adjustable Ultra Shocks with X-ring technology
• White powder coated shock springs feature a responsive spring rate
• Alias Step-Pin rear tires and front Alias ribbed front tires offer superior off-road traction
• Alias tires include performance-tuned foam inserts and they come pre-glued on black-chrome 2.2" Tracer wheels
• New ProGraphix multi-colored painted body is available in red, blue, black, and silver
• Bandit VXL is backed by unparalleled Traxxas support and parts availability

Specifiaction

BANDIT VXL (#2407L) SPECS

Length:   16.25" (413mm) Front Track:   9.84" (250mm) Rear Track:   9.84" (250mm) Weight:   48oz (1.36 kg) Height (overall):   7" (178mm) Wheelbase:   11.25" (286mm) Front Shock Length:   Long Rear Shock Length:   XXLong Front Tires (pre-glued):   Alias Ribbed 2.2" Rear Tires (pre-glued):   Alias Step-Pin 2.2" Front Wheels:   2.2" Black-Chome (Tracer) Rear Wheels:   2.2" Black-Chome (Tracer) Electronic Speed Control:   VXL-3s Electronic Speed Control Motor (electric):   Velineon 3500 Brushless Gear Ratio (internal):   2.72 (final drive: 7.97) Differential Type:   Planetary Steel Gear Gear Pitch:   48-Pitch Transmission:   Magnum 272 Steering:   Bellcrank Chassis Type:   Modified Tub Chassis Material:   Fiber-Composite Radio System:   TQi 2.4GHz (2-channel) Top-Speed:   70+mph** Skill Level:   1 *Battery Tray Dimensions:   139mm x 47.5mm x 28mm Included Batteries:   Traxxas Power Cell LiPo Battery (3300mAh, 7.4V, 2S, 25C) Included Charger:   Traxxas 2-Cell / 3-Cell LiPo Balance Charger Required Batteries:   4 "AA" (transmitter)

BANDIT VXL SPEED & SKILL LEVEL CHART

SPEED 35+mph 45+mph 65+mph 70mph & beyond GEARING pinion/spur 26/76 28/76 (included) 33/76 (sold separately) 33/76 (sold separately) BATTERY 6-Cell NiMH 7-Cell NiMH 3S 20C Lipo* 3S 20C LiPo* NOMINAL VOLTAGE 7.2V 8.4V 11.1V 11.1V mAh 3000+ mAh 4000+ mAh 4000+ mAh 8000+ mAh SKILL LEVEL 1 2 5 5

VXL-3s (WATERPROOF) ESC SPECIFICATIONS

Input Voltage:   NiCad/NiMH 4-9 Cells (4.8 to 10.8 Volts DC); LiPo 2-3 Cells (7.4 to 11.1 Volts DC) Case Size:   39mmW x 55mmD x 33mmH Weight:   90 grams Motor Limit (Brushed/Brushless):   No motor limit On Resistance Forward:   0.00075 Ohms On Resistance Reverse:   0.00075 Ohms Peak Current - Forward:   320A Peak Current - Reverse:   320A Braking Current:   320A Continuous Current:   200A BEC Voltage:   6.0 V BEC Current:   2.5A (with 6-cell NiMH) Power Wire:   12-Gauge Maxx Cable Input Harness Wire:   26 Gauge / 100mm Transistor Type:   MOSFET Low Voltage Detection:   2-Stage indicators, switchable (on or off) Thermal Protection:   2-Stage thermal shutdown Profile selection:   Sport Mode:     100% FWD, 100% BRAKES, 100% REV Race Mode:     100% FWD, 100% BRAKES, NO REV Training Mode:     50% FWD, 100% BRAKES, 50% REV Single-Button Setup:   Yes, Traxxas EZ-Set Battery Input Connector :   Traxxas High-Current Connector Motor Types (Autodetect):   Brushed, brushless, sensored brushless Ports:   RX Input, motor sensor, auxiliary fan



MODEL 2407L: Fully assembled, Ready-To-Race, TQi 2.4GHz radio system, Velineon Brushless Power System, Power Cell 3300mAh 2-cell LiPo Battery, LiPo Balance Charger, and ProGraphixpainted body.
