Traxxas 1/10 Scale Slash VXL 2WD Brushless Short Course Truck

The Number One Short-Course Truck

Now Includes Power Cell LiPo Battery and LiPo Balance Charger!

See which Slash 2WD is right for you!

5802 Slash - With AM radio system and ProGraphix paint
5805 Slash - With AM radio system, Power Cell battery, and charger
5803 Slash - With TQi 2.4GHz radio system, Power Cell battery, and charger
5807 Slash VXL - With TQi 2.4GHz radio system, Velineon Brushless Power, Power Cell battery, and charger

Introducing the latest member of the VXL family: the award-winning, best-selling Traxxas Slash, now with Velineon Brushless Power. Slash VXL crushes the competition with brute force acceleration and unmatched top speed. With the included Power Cell 2-cell LiPo battery, Slash VXL rockets to over 40mph. Install optional 3S LiPo power, and Slash VXL blasts past 60mph!

The Slash VXL combines extreme brushless horsepower with the proven fun and durability that have made Slash the number-1 selling short course truck. Hardcore acceleration completely blows everything else away. Out of the box, Velineon is optimized to deliver the tire-melting horsepower, benchmark speed, and precision throttle response you expect from brushless. Best of all, it's brushless done the Traxxas way: wicked fast and easy to use. There's no tricky programming to figure out or a glossary of new vocabulary to learn. Just plug it in and it works.

The Velineon Brushless Power system takes the guesswork out of enjoying the benefits of world-class brushless power. The system components work together as an optimized package, engineered from the start to deliver the ultimate in efficiency, speed, and run time. With the Slash VXL, Your battery selection determines your speed and skill level. Velineon accepts the widest range of battery types, including 3-cell Lithium Polymer packs (3S LiPo packs). These packs pump out over 11 volts of power for intense, skill level 5 speeds beyond 65mph! Nothing else even comes close. Built-in low-voltage detection in the VXL-3s Electronic Speed Control conveniently helps you maintain your LiPo battery packs in top condition.

Designed from the start for high-voltage, high-capacity LiPo packs, Traxxas� Slash VXL now includes a genuine Traxxas Power Cell LiPo battey�the only LiPos certified to deliver the full performance potential of Traxxas� VXL brushless models. The Slash VXL includes a 4200mAh Power Cell pack. Slash VXL arrives with Low Voltage Detection activated to assure maximum battery life and prevent over-discharging.

Charging care is just as important to LiPo life and performance, so a 2-Cell / 3-Cell LiPo Balance charger is also included. Just plug the battery�s balance plug into the charger and you�re on the way to another run�no programming or settings required. Every time the pack is charged, the cells are charged individually to precisely balance voltage for optimum performance, run time, and cycle life. Experience the ultimate in electric horsepower with the only models designed for LiPo power from the start, and genuine Power Cell LiPo technology on board.

Larger pinion gear/smaller spur gear combinations are for high-speed running on hard, smooth surfaces only.

Slash VXL is equipped with the world's most advanced Ready-To-Race radio system. The all-new Traxxas TQi arrives with a full complement of tuning features and offers the unbeatable convenience of "no channels, no crystals" 2.4GHz technology�but that's just the beginning. Automatic model recognition instantly recalls your settings for up to 30 Traxxas Link-enabled models. Just switch on and drive, no naming or "model memory" settings required. Power up the transmitter and the model you want to drive, and the settings for that model are dialed in immediately! The new TQi 2.4GHz transmitter is fully adjustable: steering and throttle end points can be set precisely, and the Multi-Function knob can be programmed to control Steering Sensitivity (Expo), Throttle Sensitivity (Expo), Steering Percentage (Dual Rate), Braking Percentage (Dual Rate), or Throttle Trim. TQi's ergonomic case design provides all-day driving comfort, and the unique internal antenna contributes to its sleek, modern look.

TQi Docking Base Compatible

The TQi's most important new feature may already be in your pocket. The TQi can be equipped with an optional Docking Base (#6510) that turns your iPhone or iPod touch (sold separately) into a powerful tuning tool for your Traxxas model. The full-color display combines with the free Traxxas Link App (on the App Store) to deliver an intuitive, high-definition, full-color graphical user interface that unlocks the mysteries of optimizing your radio system for ultimate vehicle control. Traxxas Link also opens the door to telemetry capability when you add optional sensors to your model.

Now a hallmark of Traxxas vehicles, Slash VXL is the latest model to be equipped with fully waterproof electronics to keep the fun rolling in water, mud and snow while lesser cars stay on the bench. The patent-pending sealed receiver box houses Traxxas' newest 5-channel micro receiver and can accept aftermarket receivers as well, without compromising the models' waterproof properties. The VXL-3s electronic speed control and high-torque, digital servo are sealed against the elements giving you the freedom go places other cars wouldn't dare to venture.

The Velineon 3500 Brushless Motor is precision-matched for use in the 1/10th scale Slash VXL, delivering the perfect balance of brutal horsepower and efficiency. The sensorless design works with the sophisticated circuitry in the VXL-3s Electronic Speed Control for smooth starts and precise control, without the need for additional sensors and wiring. Since there are no brushes or commutator to cause friction and wear, Velineon brushless power is always fast, run after run.

The Velineon VXL-3s forward/reverse electronic speed control simplifies brushless technology with easy operation that gives you all the control you need for maximum fun. Quickly choose from 3 drive profiles in exactly the same manner as other Traxxas electronic speed controls (such as the XL-5). Profiles include: Sport, Race, and Training Mode (patent pending). Training Mode limits full-throttle power to 50% allowing young or new drivers to safely develop their control skills before unleashing the full-throttle capability of the

Velineon system. Slash VXL's performance can be tailored for drivers of any age and experience. High-frequency transistors and advanced circuit design deliver incredibly smooth and refined throttle control. With the VXL-3s you have the flexibility to use conventional brushed motors, brushless motors, and sensored brushless motors. The VXL-3s auto detects the motor type for you. High-current capacity (320 amps peak) and two-stage thermal protection frees you from motor limits.

New Dual-Bellcrank Steering With Integrated Servo Saver

Originally developed for Slash 4X4, the Slash VXL's steering bellcranks feature optimized geometry and a cam-type servo-saver to protect the servo's gears from crash damage without compromising steering precision.

New Heavy-Duty Driveshafts

Brutal brushless horsepower would stress ordinary drivetrain components to their limits, so Slash VXL steps up with new, extra-strong telescoping universal-joint driveshafts. In combination with Slash's Brushless Ready steel-gear transmission, the result is a Traxxas-Tough driveline that makes certain every watt of Velineon power is transformed into rocket-like thrust.

Traxxas backs the Slash VXL and all of our products with top-notch support that is second to none. A staff of skilled representatives is on-hand to answer your questions via phone, website, or email. Unmatched parts support allows Slash VXL to be serviced with parts and support from thousands of hobby dealers worldwide. Your investment is also protected by the Traxxas Lifetime Electronics Warranty. Traxxas goes the extra mile to ensure that your R/C experience is easy and fun (and fast!). Follow the details link on the left to go in depth on all the Slash VXL performance benefits, and also be sure to check out the videos page to see Slash VXL in action for yourself.

MODEL 5807L: Fully assembled, Ready-To-Race, with TQi 2.4GHz radio system, VelineonBrushless Power System, Power Cell 4200mAh 2-Cell LiPo Battery, LiPo Balance Charger, and Race Replica painted body.

Velineon 3500 Brushless Motor

The Velineon 3500 Brushless Motor is precision-matched for use in the Slash VXL, delivering the perfect balance of brutal horsepower and efficiency. The sensorless design works with the sophisticated circuitry in the VXL-3s Electronic Speed Control for smooth starts and precise control, without the need for additional sensors and wiring. Since there are no brushes or commutator to cause friction and wear, Velineon brushless power is always full of muscle, run after run.

Velineon VXL-3s ESC

The Velineon VXL-3s forward/reverse electronic speed control simplifies brushless technology with easy operation that gives you all the control you need for maximum fun. Quickly choose from 3 drive profiles in exactly the same manner as other Traxxas electronic speed controls (such as the XL-5). Profiles include: Sport, Race, and Training Mode (patent pending). Training Mode limits full-throttle power to 50% allowing young or new drivers to safely develop their control skills before unleashing the full-throttle capability of the Velineon system. Slash VXL's performance can be tailored for drivers of any age and experience. High-frequency transistors and advanced circuit design deliver incredibly smooth and refined throttle control. With the VXL-3s you have the flexibility to use conventional brushed motors, brushless motors, and sensored brushless motors. The VXL-3s auto detects the motor type for you. High-current capacity (320 amps peak) and two-stage thermal protection frees you from motor limits.

Power Cell LiPo Battery

Designed from the start for high-voltage, high-capacity LiPo packs, Traxxas' Slash VXL now includes a genuine Traxxas Power Cell LiPo battey�the only LiPos certified to deliver the full performance potential of Traxxas' VXL brushless models. The Slash VXL includes a 4200mAh Power Cell pack. Slash VXL arrives with Low Voltage Detection activated to assure maximum battery life and prevent over-discharging.

LiPo Balance Charger

Charging care is just as important to LiPo life and performance, so a 2-Cell / 3-Cell LiPo Balance charger is also included. Just plug the battery's balance plug into the charger and you're on the way to another run�no programming or settings required. Every time the pack is charged, the cells are charged individually to precisely balance voltage for optimum performance, run time, and cycle life. Experience the ultimate in electric horsepower with the only models designed for LiPo power from the start, and genuine Power Cell LiPo technology on board.

The World's Most Advanced Ready-To-Race Radio System

Total Control. Traxxas models deserve the world's most advanced Ready-To-Race radio system. The radio system after all is the sole connection between the driver and machine. It has to be precise, comfortable, powerful, and reliable. The all-new Traxxas TQi radio system arrives with a full compliment of tuning features; long-range, high-output, 2.4GHz signal, and proven Traxxas reliability for rock-solid performance. It's so advanced; it doesn't even need an external antenna. However, the most important new feature may already be in your pocket. The TQi can be equipped with an optional Docking Base (#6510) that turns your iPhone or iPod touch into a powerful tuning tool for your Traxxas model. The full-color display combines with the Traxxas Link App to deliver an intuitive, high-definition, full-color graphical user interface that unlocks the mysteries of optimizing your radio system for ultimate vehicle control.

5-channel Micro Receiver with Fail-Safe Security

The TQi 2.4GHz micro receiver fits easily into any vehicle, and features dual channel-1 outputs for easy installation in vehicles with dual steering servos�no Y-harness necessary! The integrated LINK button makes it fast and easy to bind the receiver, and the two-color LED indicates power-on and bind status for fool-proof control and convenience. Traxxas Link Model Memory allows the receiver to recognize up to thirty TQi 2.4Ghz Traxxas Link enabled transmitters�just switch on and drive. In the event of signal loss due to an accidental switch-off or depleted batteries, the receiver will automatically return the throttle to neutral and hold the last commanded steering position. The Fail Safe programming is built-in and does not need to be set or activated. Three telemetry ports are incorporated in the 5-channel receiver to allow real-time data to be transmitted from your Traxxas model to the TQi transmitter.

Sealed Watertight Receiver Box

Slash VXL's receiver is fully enclosed for protection from the elements. The antenna and servo wires route neatly through a special watertight seal, and a custom blue O-ring seals the receiver box to protect the receiver from water. The receiver can be removed for service and aftermarket receivers can be installed without losing the sealing properties of the box. Patent pending.

Digital High-Torque Waterproof Steering Servo

A race truck needs a powerful steering servo for responsive performance. The waterproof steering servo (#) uses O-ring seals to keep the fun going when things get wet. The Traxxas digital high-torque servo provides precise steering authority and speed for wheel-to-wheel racing in the back yard or on the track.

New Heavy-Duty Driveshafts

Brutal brushless horsepower would stress ordinary drivetrain components to their limits, so Slash VXL steps up with new, extra-strong telescoping universal-joint driveshafts. In combination with Slash VXL's Brushless Ready steel-gear transmission, the result is a Traxxas-Tough driveline that makes certain every watt of Velineon power is transformed into rocket-like thrust.

Traxxas High-Current Connectors

The Velineon VXL-3s forward/reverse electronic speed comes equipped with the revolutionary Traxxas High-Current Connectors. Designed to handle high-current applications, Traxxas Connectors effortlessly funnel the battery's total power to the electronics keeping things running cool and at full capacity. For more info about the Traxxas High-Current Connector click here.

Securely Mounted Electronics

The ESC, receiver, and steering servo are screwed to the chassis for ultimate mounting security. There's no servo tape to loosen over time from dirt, heat, water, and collisions.

Long-Wheelbase Chassis

Designed from the ground up, the new chassis features a 13.2" wheelbase while offering over 3.5 inches inches of ground clearance. The new chassis includes drain holes and a battery tray channel for routing servo wires to the receiver.

Chassis Nerf Bars and New Body Mounts

Integrated chassis nerf bars offer side body support for door to door racing action. The body mounts incorporate reinforced washers to support the short course truck body during big-air jumps and high-speed runs.

Officially Licensed BFGoodrich and Kumho tires

Traxxas' attention to detail for Slash VXL includes authentic, fully-licensed tire designs that replicate the actual racing rubber used on the TORC circuit. Mike Jenkins-, Mark Jenkins-, Greg Adler-, and Jerry Whelchel-Edition trucks are equipped with BFGoodrich Mud-Terrain T/A tires. The Scott Douglas Edition model wears Kumho Road Venture MT tires. Each brands' unique tread pattern and sidewall design is captured in high-grip rubber, right down to the raised lettering of the Kumho tires and white lettering of the BFGoodrich treads.

Hex Hardware

Pro-quality, high-grade, metric hex-drive hardware is used throughout for extra strength, and easy maintenance and repair. The black-oxide rust-resistant finish provides a high tech look and feel.

Rubber-Sealed Ball Bearings

Precision rubber-sealed bearings offer the ultimate in super low-friction performance and maximum protection in dusty environments. They are used in all exposed locations on the truck and are virtually maintenance free.

Adjustable Steel Turnbuckles

Factory fitted, heavy-duty steel turnbuckles allow camber and toe tuning. The Slash VXL is completely adjustable right out of the box to fine tune handling agility and high-speed performance. Captured rod ends provide unmatched durability and they simply won't pop off.

Steel-Composite Planetary Gear Differential

The composite Traxxas planetary gear differential now features a steel ring gear with a nylon housing for long life. It uses hardened steel internal gears for maximum strength during rigorous off-road bashing. This type of differential requires virtually no maintenance and its efficient design puts maximum tire-shredding torque to the wheels.

Revo-spec Torque-Control Slipper Clutch

Advanced Revo technology is utilized to manage the massive power from the Velineon brushless motor. The Torque-Control slipper clutch uses special semi-metallic friction material and finned aluminum alloy pressure plates to dissipate heat and provide consistent traction control. The semi-metallic friction material remains stable across a wide temperature range to provide smooth, linear engagement you can count on, run after run. Spur gears can be removed and replaced without altering the slipper adjustment.

Heavy-Duty Hub Carriers & Steering Blocks

The Slash VXL features heavy-duty ball bearing front steering blocks and rear hub carriers. They utilize large 5x11mm ball bearings for long-term precision performance, smooth operation, and increased durability.

Progressive Rate Powder Coated White Springs

The race-tuned progressive rate springs soak up the small bumps as a softer spring would, but when the conditions get rough and the jumps get big, the progressive rate springs step up to the challenge by getting firmer as the suspension is compressed. The long-lasting, white powder coated finish sets the Slash VXL apart from the pack.

Metal Gear Magnum 272 Transmission

The Slash VXL's Magnum 272 transmission is assembled with all metal gear internals riding on ultra-smooth sealed ball bearings. Combined with the smooth 48-pitch gears, power is delivered to the rear wheels via durable telescoping U-joint driveshafts for maximum efficiency and articulation. The bulletproof Torque-Control slipper clutch and metal gear Magnum transmission are ready to handle any power system upgrade including the Extreme Power of the Velineon Brushless Power System.

Oil-Filled Ultra Shocks

The Slash VXL's oil-filled Ultra Shocks utilize X-ring technology for a perfect seal and super-smooth performance. They are fully tunable with a wide range of oils, springs, and pistons. Features include pressure bladders for air/oil separation and spring clips to precisely change the ride height and spring pre-load. They can be renewed in minutes with our inexpensive rebuild kits.

Officially Licensed Race Replicas

Slash VXL is available with Race Replica bodies, each fully decorated with licensed logos and graphics for total authenticity. In addition to the no. 47 and 25 Traxxas race trucks of Mike and Mark Jenkins, you can choose the Scott Douglas Edition (Amsoil), or Greg Adler Edition (4 Wheel Parts).

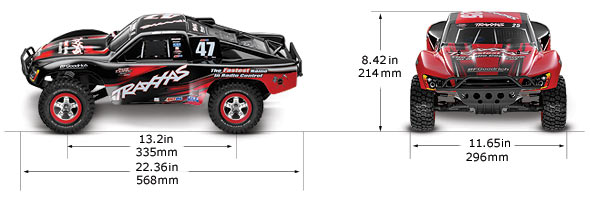

Length		22.36 inches (568mm)
Front Track		11.65 inches (296mm)
Rear Track		11.65 inches (296mm)
Weight		90.37oz (2.562kg)
Height (overall)		8.425 inches (214mm)
Wheelbase		13.2 inches (335mm)
Front Shock Length		Long
Rear Shock Length		XXLong
Front Tires		BFGoodrich or Kumho 2.2" (Pre-Glued with Inserts)
Rear Tires		BFGoodrich or Kumho 2.2" (Pre-Glued with Inserts)
Front Wheels		2.2" Satin or Chrome-Finish
Rear Wheels		2.2" Satin or Chrome-Finish
Speed Control Type		VXL-3s Electronic Speed Control
Motor (electric)		Velineon 3500 Brushless
Gear Ratio (internal)		2.72 (final drive: 10.2)
Differential Type		Steel Composite Planetary
Gear Pitch		48-Pitch
Transmission		Metal Gear Magnum 272
Steering		Bellcrank
Chassis Type		Modified Tub
Chassis Material		Composite Nylon
Center Ground Clearance		3.5 inches (89mm)
Top Speed		40+mph**
Skill Level		4
Radio System		TQi 2.4GHz (2-channel)
*Battery Tray Dimensions:		165mm x 49.5mm x 23mm, 25mm
Included Batteries		Traxxas Power Cell LiPo Battery (4200mAh, 7.4V, 25c, 2 cell)
Included Charger		Traxxas 2-Cell / 3-Cell LiPo Balance Charger
Required Batteries		4 "AA" (transmitter)
*Battery expansion kit available (#5827X).
**See speed chart below.

Input Voltage:		NiCad/NiMH 4-9 Cells (4.8 to 10.8 Volts DC); LiPo 2-3 Cells (7.4 to 11.1 Volts DC)
Case Size:		39mmW x 55mmD x 33mmH
Weight:		90 grams
Motor Limit (Brushed/Brushless):		No motor limit
On Resistance Forward:		0.00075 Ohms
On Resistance Reverse:		0.00075 Ohms
Peak Current - Forward:		320A
Peak Current - Reverse:		320A
Braking Current:		320A
Continuous Current:		200A
BEC Voltage:		6.0 V
BEC Current:		2.5A (with 6-cell NiMH)
Power Wire:		12-Gauge Maxx Cable
Input Harness Wire:		26 Gauge / 100mm
Transistor Type:		MOSFET
Low Voltage Detection:		2-Stage indicators, switchable (on or off)
Thermal Protection:		2-Stage thermal shutdown
Profile selection:		Sport Mode: 100% FWD, 100% BRAKES, 100% REV Race Mode: 100% FWD, 100% BRAKES, NO REV Training Mode: 50% FWD, 100% BRAKES, 50% REV
Single-Button Setup:		Yes, Traxxas EZ-Set
Battery Input Connector :		Traxxas High-Current Connector
Motor Types (Autodetect):		Brushed, brushless, sensored brushless
Ports:		RX Input, motor sensor, auxiliary fan
		*Properly geared
