TRA-5309$549.99Color: - Please Select One -BlueGreenRedSilver

The Revo 3.3 Stands Alone as the Ultimate Nitro Monster Truck

• NEW TQi 2.4GHz Radio System with Docking Base
  • Factory Installed Telemetry Sensors
• OptiDrive ­Reversing Transmission
• Rechargeable Receiver and EZ StartBatteries Included!
• Bigger, Tougher, More Versatile Than Ever!



Monster innovation, monster versatility, and supreme size come together in the one truck that could only come from Traxxas. Now more than ever, the new Revo 3.3 defines what it means to be the pinnacle of monster truck performance, the standard bearer for cutting edge innovation and boundless capability that all others are measured against. The new Revo 3.3 is pure monster to its core with its massive presence, meaner gaze, and feature-rich capability. More importantly, Revo's advanced engineering equips it for fun, and the new Revo 3.3 delivers even more of it!

The Most Important Feature: Fun

Revo's specifications are more than just an impressive list of features. They are each specifically engineered and integrated into the model to provide capability and convenience that equates to fun! Revo 3.3's heavy-duty reversing transmission lets you easily back out of tight spots with the flick of a switch, while the OptiDriveElectronic Transmission Control guarantees safe, smooth engagement every time. Revo engineering makes it the smoothest reversing system available on any nitro truck. The new Traxxas TQi 2.4GHz radio system features the exclusive Docking Base, a revolutionary concept that harnesses the power of your Apple iPhone or iPod touch to create the ultimate pro-caliber radio system. The TQi radio system keeps you in complete control with the latest 2.4GHz technology for no-crystals-required reliability and convenience. Just switch on and drive. ­New Geode chrome wheels with 17mm hex hubs wear massive 6.3" Maxx-sized tires for big ground clearance and total traction in all conditions. Revo 3.3's dual-digital servo steering system delivers 250 oz.-in of torque for powerful, responsive handling, plus they're waterproof for ultimate reliability. The new Revo 3.3 is 100% Ready-To-Drive—even a fuel dispensing bottle and rechargeable NiMH packs for the receiver and EZ-Start system are included, along with the chargers, extra oil filter, extra glow plug, precision tool set, and more! All the race-engineered advantages that make Revo a seven-time national champion on the track also make it the ultimate platform for all your monster truck fun. Revo durability is second to none, once the long travel rockers are installed, Revo has the most suspension travel of any monster truck.

The Next Generation of Traxxas 2.4GHz Control

Revo 3.3 is equipped with the world's most advanced Ready-To-Race radio system. The all-new Traxxas TQi radio system with Docking Base turns your iPhone or iPod touch into a powerful tuning tool. The device display combines with the Traxxas Link App to deliver an intuitive, high-definition, full-color graphical user interface that optimizes your radio system for ultimate vehicle control. Automatic model recognition instantly recalls your settings for up to 30 Traxxas Link-enabled models—just switch on and drive. This powerful App gives you complete control over the operation and tuning of Revo 3.3 with an intuitive, high definition graphical user interface. Once you have created the perfect control settings for your model, you can save them as a profile that you can restore later, use on another model, or share with friends. Traxxas Link factory installed telemetry sensors transmit real-time data including speed, RPM, temperature, and battery voltage with stunning visuals. TQi Docking Base is compatible with iPhone 3G/3gS/4/4S and iPod touch 2nd/3rd/4th generation.

Powerful Traxxas Link Application Available in the App Store.

Traxxas Link makes it easy to learn, understand, and access the powerful tuning options built into every Traxxas TQi radio system. Control your Drive Effects settings such as steering and throttle sensitivity; steering percentage; braking strength; and throttle trim by simply touching and dragging the sliders on the screen, or enabling the Multi-Function knob on the transmitter. Everything happens live, on-the-fly, giving you instant feedback on your changes.

With the factory installed telemetry sensors, Traxxas Link collects and records real-time telemetry data as you drive. The Traxxas Link dashboard comes to life showing you speed, battery voltage, RPM, and temperature. The application automatically detects and recognizes Traxxas Link sensors for easy set up and configuration. The dashboard is fully customizable with either dial or digital readout gauges. Up to nine gauges can be displayed at once. Set threshold warnings and log maximums, minimums, or averages. Use the recording function to document your dashboard view, with sound, so that you can keep your eyes on your driving and not miss a single apex. If you forget to record, simply touch Instant Replay anytime to capture the previous minute of fun and unexpected triumphs. The recordings can be named, saved, and shared with others.

Once you have created the perfect control settings for your model, you can save them as a profile that you can restore later, use on another model, or share with friends. If the track conditions change, simply re-tune your Drive Effects and save them as new profile. Only Traxxas Link makes pro-level transmitter tuning so fast, convenient, and easy.

Wider, Taller, Stance For Maximum Monster Fun

Revo 3.3 is extra wide with an aggressive, high-riding monster stance thanks to the Geode wheels and massive 6.3" Maxx-sized tires. The rugged all-terrain treads have wrap-around lugs to give Revo 3.3 trail-shredding traction, and the wheels' extra offset ensure a sure-footed feel no matter how tough the terrain. Blue-anodized 17mm hex hubs with Traxxas' exclusive splined design guarantee every powerful stroke of Revo's class-leading TRX 3.3 engine is channeled directly to the wheels. The Geode wheels' durable show-chrome finish helps you look your best when you're at the front of the pack.

4AA Batteries And Fuel

That's all you need to go from the box to the backyard with the Revo 3.3—4 AA batteries for the transmitter, and Traxxas Top Fuel Power Plus to pour into the tank. The Revo 3.3 is fully assembled, with pre-glued tires, a mounted and trimmed ProGraphix body and dialed-in electronics. But we didn't stop there; a high-quality 5-cell NiMH receiver pack AND 6-cell EZ-Start battery are included, each with its own charger. A 500cc fuel bottle is also included for fast fillups, and there's even a spare glow plug and air filter element to keep you running strong. A precision metric specialty tool set is also included for easy servicing. Everything you need to experience nitro monster fun the Traxxas way is in the box.

Heavy-Duty Reversing Transmission with OptiDrive

Only Traxxas offers a no-compromise reversing transmission with seamless power delivery, positive engagement, and smooth, responsive acceleration in forward and reverse. The secret is Traxxas' exclusive OptiDrive Electronic Shift Module, a microprocessor-based controller that senses vehicle speed and optimizes forward and reverse shifting. OptiDrive allows constant drive engagement, so shifts are fast and seamless. The electronic control also prevents accidental shifting at speed;
the shift module will only allow the transmission to shift when the Revo 3.3 has slowed to a safe speed. In addition to providing the absolute best performance, the OptiDrive system allows a lighter transmission with fewer moving parts for reduced inertial mass and greater torque handling. That means more monster fun with no penalty for the convenience of reverse.

Dual-Servo Steering With Digital Power and Waterproof Construction

Simply the finest servos in the Traxxas line, Revo 3.3's dual2075 steering servos deliver an incredible 250 oz.-in. of torque to keep you in complete control in all conditions, with the handling precision you expect from a seven-time National Champion. Digital circuitry and ball-bearing output shafts give these servos incredibly precise centering, lightning-fast response, and superior power. And they're waterproof! When not even water can get in, you can be sure dust and dirt don't stand a chance.

The TRX 3.3 Racing Engine: The Most Powerful Smallblock Engine Available In Any Ready-To-Run Truck!

When it comes to sheer power, high-rpm performance, and reliability run-after-run, no engine can even come close to the award winning TRX 3.3 Racing Engine. This precision-engineered powerplant is the solution that brings it all together with extreme horsepower that is second to no one; easy tuning; full Traxxas reliability and support, including the Lifetime Engine Replacement Plan; and the pure convenience of one-touch, push-button, EZ-Start electric starting
.

Push-Button Electric Starting

Only the Traxxas EZ-Start offers the pure convenience of true one-handed operation and complete on-board, push-button electric starting. EZ-Start is the safest and most reliable way to start your engine. The Traxxas EZ-Start lights your glow plug and starts your engine quickly and smoothly at the push of a button. Traxxas' exclusive Smart Start technology monitors critical starting functions, automatically sensing and diagnosing potential problems for trouble-free engine starting every time! Once you've used EZ-Start you'll wonder how you ever enjoyed a nitro engine without it—and with Revo 3.3's included EZ-Start battery and charger, everything you need to enjoy electric starting convenience is right in the box.

QUICK FEATURES ON REVO 3.3 (#5309)

• Ready-To-Drive with included NiMH receiver pack and EZ-Start battery, chargers, fuel-filler bottle, spare glow plug, precision tools, and more!
• NEW TQi 2.4GHz Transmitter with Docking Base and Receiver
• Factory installed telemetry sensors - RPM, speed, temperature, and battery voltage
• Wider, taller stance with new Geode wheels and 6.3" Maxx-sized tires
• Sinister new body with ferocious graphics
• Heavy-duty reversing transmission with exclusive OptiDrive Electronic Shift Module
• Dual digital waterproof ball-bearing servos with 250 oz.-in. combined torque

MODEL 5309: Fully assembled, Ready-To-Race, with TQi 2.4GHz radio system with Docking Base, telemetry sensors, TRX 3.3 Racing Engine and ProGraphix painted body

Details

Advanced TQi 2.4GHz Radio System with Docking Base

Traxxas models deserve the world's most advanced Ready-To-Race radio system. The radio system after all is the sole connection between the driver and machine. It has to be precise, comfortable, powerful, and reliable. The all-new Traxxas TQi radio system arrives with a full complement of tuning features; long-range, high-output, 2.4GHz signal, and proven Traxxas reliability for rock-solid performance. It's so advanced; it doesn't even need an external antenna. However, the most important new feature may already be in your pocket. The Revo 3.3's TQi transmitter is equipped with an accessory Docking Base that turns your iPhone or iPod touch into a powerful tuning tool for your Traxxas model. The device display combines with the Traxxas Link App to deliver an intuitive, high-definition, full-color graphical user interface that unlocks the mysteries of optimizing your radio system for ultimate vehicle control.

Only Traxxas gives you the power to unlock the full potential of the new Traxxas TQi Radio System with Traxxas Link, the custom application that integrates your iPhone or iPod touch with the TQi transmitter. Gone are the clunky controls and blocky monochrome graphics of yesterday's radio systems. This powerful App gives you complete control over the operation and tuning of your Traxxas radio controlled model with an intuitive, high-definition graphical user interface. Install Traxxas Link telemetry sensors on the model, and Traxxas Link displays real-time data such as speed, RPM, temperature, and battery voltage with stunning graphics. Traxxas builds the world's fastest Ready-To-Race radio-controlled models, capable of speeds that exceed 100mph. That level of performance demands precision control. Traxxas Link gives you the tools for exacting adjustment and superior control while always keeping you informed on your model's status and speed.

Factory Installed Telemetry Sensors

With factory installed telemetry sensors, Traxxas Link collects and records real-time telemetry data as you drive. The Traxxas Link dashboard comes to life showing you speed, battery voltage, RPM, and temperature. The application automatically detects and recognizes Traxxas Link sensors for easy set up and configuration. The dashboard is fully customizable with either dial or digital readout gauges. Up to nine gauges can be displayed at once. Set threshold warnings and log maximums, minimums, or averages. Use the recording function to document your dashboard view, with sound, so that you can keep your eyes on your driving and not miss a single apex. If you forget to record, simply touch Instant Replay anytime to capture the previous minute of fun and unexpected triumphs. The recordings can be named, saved, and shared with others.

Intuitive iPhone and iPod touch Interface

Traxxas Link makes it easy to learn, understand, and access the powerful tuning options built into every Traxxas TQi radio system. Control your Drive Effects settings such as steering and throttle sensitivity; steering percentage; braking strength; and throttle trim by simply touching and dragging the sliders on the screen, or enabling the Multi-Function knob on the transmitter. Everything happens live, on-the-fly, giving you instant feedback on your changes.

5-channel Micro Receiver with Fail-Safe Security

The TQi 2.4GHz micro receiver fits easily into any vehicle, and features dual channel-1 outputs for easy installation in vehicles with dual steering servos—no Y-harness necessary! The integrated LINK button makes it fast and easy to bind the receiver, and the two-color LED indicates power-on and bind status for fool-proof control and convenience. Traxxas Link Model Memory allows the receiver to recognize up to thirty TQi 2.4GHz Traxxas Link enabled transmitters—just switch on and drive. In the event of signal loss due to an accidental switch-off or depleted batteries, the receiver will automatically return the throttle to neutral and hold the last commanded steering position. The Fail Safe programming is built-in and does not need to be set or activated. Three telemetry ports are incorporated in the 5-channel receiver to allow real-time data to be transmitted from your Traxxas model to the TQi transmitter.

Wider, Taller, More Aggressive Monster Stance

The new Revo 3.3's class-leading monster performance is reflected in its muscular new body shell and high-riding stance. Now a full inch wider with the greater offset of its Geode wheels, the new Revo 3.3 is an even more menacing off-road machine. Massive 6.3" Maxx tires are the claws of this nitro-burning beast, and raise its already high ground clearance for total domination no other monster can match.

ProGraphix Painted Body

The new, wider Revo body comes fully trimmed and painted for sinister style with no finishing required. Decals are also applied to save time and get you driving just minutes out of the box. Traxxas' ProGraphix bodies are the hottest looking lids around, with custom style even pro painters can't duplicate.

Included NiMH Receiver and EZ-Start Battery Packs

Revo 3.3 is Ready-To-Drive, complete with rechargeable NiMH batteries for the on-board radio gear and EZ-Start electric engine starting system. In addition to the cost savings of replacing disposable alkaline cells with a rechargeable receiver battery, the 5-cell Traxxas NiMH 1200mAh receiver pack also provides superior performance with Revo 3.3's high-torque digital servos. For reliable engine-starting performance, the included EZ-Start pack features rugged construction and high-capacity cells for all-day power. When it's time to recharge, reach for the included wall chargers. Only Traxxas offers an RTR nitro monster truck package that is so complete.

Dual Digital, High-Torque,Waterproof, Ball-Bearing Steering Servos

Revo 3.3 uses dual 2075 steering servos, each producing 125 oz.-in. of torque for a combined 250 oz.-in. of tire-turning twist. The twin servos are lighter and more compact than a single large servo, and together they deliver unmatched monster steering response and quick .16-second transit time. Digital circuitry and ball-bearing output shafts gives these servos incredibly precise centering, lightning-fast response, and superior power. And they're waterproof! When not even water can get in, you can be sure dust and dirt don't stand a chance.

Geode Wheels

Traxxas Geode wheels offer an extra half-inch of offset to increase the Revo 3.3's width by a full inch for greater stability in rough terrain and superior cornering grip. The beefy six-spoke design is extra strong and uses Traxxas' exclusive 17mm splined hex to withstand off-road abuse. The show-chrome finish adds custom style. The Geode wheels also accept Traxxas' beadlock-style rings (sold separately) for an instant matching or contrasting dose of color with the benefit of extra protection for the rim/sidewall joint.

6.3" Maxx Tires

Designed for true multi-terrain versatility, the soft compound Maxx tires maximize performance for tenacious traction no matter where nitro-powered monster fun takes you. On dirt, the aggressive treads claw for traction providing superior bite and massive roosts, and on pavement the forgiving side grip allows the tire to power-slide while maintaining a sure-footed neutral feel. It's go-anywhere performance you can only experience with a Revo.

Heavy-Duty Reversing Transmission With OptiDrive

Only Traxxas offers a no-compromise reversing transmission with seamless power delivery, positive engagement, and smooth, responsive acceleration in forward and reverse. You get all the fun and convenience of reversing capability, without the penalty of weight and complexity inherent in an all-mechanical system. The secret is Traxxas' exclusive OptiDrive Electronic Shift Module, a microprocessor-based controller that senses vehicle speed and optimizes forward and reverse shifting. OptiDrive allows constant drive engagement, so shifts are fast and seamless. The electronic control also prevents accidental shifting at speed; the shift module will only allow the transmission to shift when the Revo 3.3 has slowed to a safe speed. In addition to providing the absolute best performance, the OptiDrive system allows a lighter transmission with fewer moving parts for reduced inertial mass and greater torque handling.

Traxxas Top Fueler Fuel Bottle

A fuel-filler bottle is a must-have for any nitro machine, and the premium-quality Top Fueler is included with the Revo 3.3. The bottle holds a full 500cc of fuel and features a long, angled, blue-anodized spout for easy filling.

Included Spare Glow Plug and Air Filter Elements

Glow plugs and air filter elements are consumables in any nitro vehicle, so Revo 3.3 includes spares to keep you rolling! The premium-quality Traxxas glow plug is designed specifically for reliable, consistent operation in the TRX 3.3 engine, and the long-lasting foam filter elements are pre-oiled for convenient installation and maximum filtering performance.

TRX 3.3 Racing Engine

The powerful TRX 3.3 Racing Engine is the heart of the new Revo 3.3, delivering thoroughbred race engine performance that's unbeatable on or off the track. The TRX 3.3 Racing Engine features a precision composite slide carburetor, PowerTune cooling head, dyno-proven IPS crankshaft, multi-port rear exhaust, and the starting convenience of the exclusive Traxxas EZ-Start system. Years of testing and proven performance deliver the easiest-to-tune, most dependable, most powerful Ready-To-Race engine available. It's competition-proven power with convenience and reliability for all-day driving fun.

Mirror-Polish Resonator Dual-Chamber Aluminum Pipe

The dual chamber Resonator aluminum pipe delivers the most broad and linear power band from the TRX 3.3 Racing Engine. It's dyno-tuned to deliver torque down low for hard launches off the line and big horsepower on the top end to out-rev all comers in the neighborhood drag race. The mirror-polish finish adds show-car style and stays clean longer.

Large High-Volume Dual-Stage Air Filter

Engineered to work with all Traxxas air filter bases, the new extra large dual-stage air filter increases air flow to the TRX 3.3 Racing Engine. With more air intake, the TRX 3.3 holds an incredibly consistent tune, even during long afternoons of nonstop offroad action. The dual-stage design traps large particles in the outer element, while the inner element flows clean air to the engine. The large free flowing cylindrical design allows more air to get to the carburetor, which equals more horsepower! Revo 3.3 even includes an extra set of air filter elements to extend your driving fun.

EZ-Start Electric Starting

Only the Traxxas EZ-Start offers the pure convenience of true one-handed operation and complete on-board, push-button electric starting. The Traxxas EZ-Start lights your glow plug and starts your engine quickly and smoothly at the push of a button. Traxxas' exclusive Smart Start technology monitors critical starting functions, automatically sensing and diagnosing potential problems for troublefree engine starting every time! LEDs provide realtime status, even alerting you when a glow plug has failed. Revo 3.3 includes the required 6-cell battery and charger to power the EZ-Start system for total convenience.

150cc Fuel Tank

Revo 3.3's extra-large fuel capacity lets you run longer between pit stops for more driving fun from every tankful. In addition to adding capacity and run time, the new 150cc tank has been carefully engineered to seal properly every time for consistent tuning. Inside, specially developed baffles and a sump design make sure fuel continues flowing even during the most extreme maneuvers.

Hard-anodized, PTFE-Coated GTR Shocks

The ultimate shocks for Revo, standard equipment on the new Revo 3.3. Ultra-long lasting hard-anodized, PTFE-coated aluminum GTR shocks represent the pinnacle of off-road performance, offering silky smooth damping and a serious factory-works look. Thanks to the extra tough hard-anodized finish, shock performance stays true and consistent for less maintenance and better handling, run after run.

Smooth and Durable TiN Shock shafts

Titanium Nitride coated shock shafts deliver ultra-smooth damping with nearly friction-free operation for incredibly responsive suspension action and extra long seal life. The durable titanium nitride finish offers durable, smooth, long-lasting performance.

Aluminum 17mm Splined Wheel Hub and Hex Nut

Traxxas 17mm hubs and wheel nuts provide precision alignment and unsurpassed torque handling. The splined design interlocks with the Geode wheels for a solid fit that holds tight. The ground-breaking new design also accepts traditional aftermarket 17mm hex wheels, and an easy-to-use molded wheel wrench is included for easy wheel removal and installation.

Large 6x13mm Outer Axle Bearings

The Revo 3.3's axle carriers utilize larger 6x13mm outer ball bearings that can handle 56% more static load and stress when compared to the stock 6x12mm ball bearings found on the original Revo. The large, durable, rubber-sealed ball bearings are designed to handle hours of nitro off-road action with minimal maintenance.

Steel Pivot Ball Retainers

Strong steel retainers keep the pivot balls in place even after the most brutal crash. The new axle carrier design provides all the benefits of aftermarket aluminum carriers without the penalty in weight and cost.

3D Semi-Monocoque Chassis

Revo 3.3's extended chassis design merges engineering artwork with functionality for incredible stability on rough terrain. The unique monocoque chassis is cut and formed from 3mm, 6061-T6 aluminum for a combination of rigidity and light weight that flat-plate designs can't match. The engine cradle and deep channel design provide superior strength without adding unnecessary weight, and an integrated chassis brace prevents flexing caused by engine torque.

Large Diameter Disc Brake

A large 42mm steel rotor spins between two unique semi-metallic brake pads which, when engaged, bind the drilled steel disc for powerful 4-wheel braking action. The proven design provides fast fade-free braking to bring Revo 3.3 to a stop almost as quickly as it accelerates.

Sealed Limited Slip Differentials

The Revo 3.3 features sealed, bevel-gear differentials that are filled with silicone fluid to offer a broad range of tuning options. Precision-sealed with Traxxas X-ring silicone seals, the Revo 3.3 differentials are designed for long-lasting performance and the ability to tune for specific running conditions by varying the viscosity of the fluid inside them. Built to handle extreme torque and power, these differentials offer unmatched versatility and toughness.

Super-Duty Sealed Driveshafts

The reliable and incredibly tough Revo Drivetrain utilizes sealed super-duty driveshafts throughout the driveline. Expandable rubber seals prevent friction-causing dirt from entering the half shafts. True curvilinear splines provide smooth performance and large rubber-sealed stub axle bearings are used for long-lasting, smooth running performance. Revo's sliding half shaft design is clearly superior, eliminating the metal-to-metal drive pin plunge friction that speads wear in typical metal driveshafts and the possibility of bent shafts. Plus, there's no need to limit suspension travel just to keep the drive pins from popping out of the cups. Revo's driveshafts are engineered for durable, smooth, maintenance-free operation.

Sealed Pivot Ball Suspension

Traxxas' exclusive rubber-sealed pivot balls maintain factory smooth performance even in the harshest environments. The unique design allows easy adjustment and unmatched reliability. The heavy-duty axle carriers use large diameter rubber-sealed bearings for ultra-smooth running that's practically maintenance-free.

Progressive-2 Rockers for Balanced Handling in All Conditions

Chosen specifically to optimize Revo's advanced suspension geometry, Progressive-2 rockers provide balanced bump absorption and chassis response for the best all-around performance on a wide variety of surfaces. For extreme off-roading, Long Travel rockers and springs are provided to boost Revo 3.3's suspension travel from a plush 90mm to a full 120mm for seemingly bottomless suspension travel.

The Most Suspension Travel

Revo architecture delivers the most suspension travel possible, tunable progressive damping rates, independent ride height adjustment, and the absolute highest level of control for any situation. The precision hard-anodized aluminum shocks are rigidly mounted to the chassis, protected from dirt, rocks, and crash damage.

4.25" Ground-Clearance

With its massive new Maxx tires, Revo 3.3 delivers over 4" of center ground-clearance for go-anywhere performance. Integrated skid plates protect the driveline from rocks and hard impacts.

Rubber-Sealed Ball Bearings

Precision rubber-sealed bearings offer the ultimate in super low-friction performance and maximum protection in dirt and nitro environments. They are used in all exposed locations on the truck and are virtually maintenance free.

Hex Hardware

Pro-quality, high-grade, metric hex-drive hardware is used throughout for extra strength and easy maintenance and repair. The black-oxide rust-resistant finish provides a high tech look and feel.

Pro-Quality Tools

Far superior to the throwaway tools typically included with other brands' vehicles, Revo 3.3 includes hardened steel hex keys, precision open-end wrenches, and purpose-designed specialty tools engineered for tight, lasting fits and comfortable use when tuning, customizing and enjoying your Traxxas model.

Revo 3.3 Included Items

Traxxas Link Application

Traxxas Link App Now Available on the App Store with DTS-1 Support! Requires iPhone
(3G/3GS or newer) or iPod touch (2nd, 3rd, and 4th generations)

Only Traxxas gives you the power to unlock the full potential of the new Traxxas TQi Radio System with Traxxas Link, the custom application that integrates your iPhone or iPod touch with the TQi transmitter. Gone are the clunky controls and blocky monochrome graphics of yesterday's radio systems. This powerful App gives you complete control over the operation and tuning of your Traxxas radio controlled model with an intuitive, high-definition graphical user interface. Install Traxxas Link telemetry sensors on the model, and Traxxas Link displays real-time data such as speed, RPM, temperature, and battery voltage with stunning graphics. Traxxas builds the world's fastest Ready-To-Race radio-controlled models, capable of speeds that exceed 100mph. That level of performance demands precision control. Traxxas Link gives you the tools for exacting adjustment and superior control while always keeping you informed on your model's status and speed.

Available now in the Apple App Store, Traxxas Link offers exciting new features to exploit the full capabilities of the DTS-1 Drag Timing System. When combined with the DTS-1, Traxxas Link allows you to capture all the nuances of Pro drag racing competition. Traxxas Link will fill in your time slip with reaction time, elapsed time, and trap speed in actual miles per hour. Keep a run history on each of your models. Share time slips and setup race events with your friends. Dial in your ETs and any two cars can compete fairly, regardless of their top speeds! Race like the pros, using staging strategy to pressure your opponent. Only Traxxas makes drag racing so easy, accurate, fast, and fun!

• Available with DTS-1 Support
• Intuitive iPhone and iPod touch interface
• Customizable Dashboard
  • Dial or digital readout gauges
  • Set threshold warnings and log maximums, minimums, or averages
  • Review telemetry feedback via the dashboard recording function that includes sound
  • Instant replay feature captures the previous 60-seconds of dashboard activity
  • Recordings can be named and saved
  • See telemetry feedback from electric and nitro models for speed, temperature, and voltage
• Edit, save, and share drive profiles
• Visually manage an unlimited number of models with the Traxxas Link App and see:
  • Transmitter model history
  • Model names
  • Customizable settings
  • Profiles

Traxxas Link makes it easy to learn, understand, and access the powerful tuning options built into every Traxxas TQi radio system. Control your Drive Effect settings such as steering and throttle sensitivity; steering percentage; braking strength; and throttle trim by simply touching and dragging the sliders on the screen, or enabling the Multi-Function knob on the transmitter. With Traxxas Link, everything happens live, on-the-fly, giving you instant feedback on the changes you are making. Once you have created the perfect control settings for your model, save them as a profile that you can restore later, use on another model, or share with friends. If the track conditions change, simply re-tune your Drive Effects and save them as new profile.

Traxxas Link collects and records real-time telemetry data as you drive. When you equip your model with sensors, the Traxxas Link dashboard comes to life showing you speed, battery voltage, RPM, and temperature. The application automatically detects and recognizes Traxxas Link sensors for easy set up and configuration. The dashboard is fully customizable with either dial or digital readout gauges. Set threshold warnings and log maximums, minimums, or averages. Use the recording function to document your dashboard view, with sound, so that you can keep your eyes on your driving and not miss a single apex. If you forget to record, simply touch Instant Replay anytime to capture the previous minute of fun and unexpected triumphs. The recordings can be named and saved to compare, review, and share with friends.

The Model configuration settings provide a beautifully simple, visual interface to fine tune servo adjustments such as sub-trims, endpoints, and servo reversing. Choose your servo by touching the channel icon. Model Setups can be customized to adjust for vehicle modifications such as changing the pinion gear or installing different tires. Just select the modifications from the list. Traxxas Link also gives you instant access to Training Mode, and even includes an adjustment to set how fast the model can drive in Training Mode. It's perfect when you want to quickly and easily share your vehicle with a driver that is not yet ready to experience the full top speed your vehicle is capable of.

Traxxas Link simplifies organizing your collection of vehicles. The TQi radio system automatically keeps track of what vehicles it has bound to and what settings were used for each. Traxxas Link provides a visual interface to see the transmitter's model history, name the models, customize their settings, attach profiles, and lock them into memory. With Traxxas Link and the TQi radio system, there's never a need to try and remember which model in memory needs to be selected to drive. Simply choose a model and any previously bound transmitter, power them up, and start having fun. Traxxas Link recognizes the model and picks everything up right where you left off. An unlimited number of vehicles can be permanently stored. The factory settings for all Traxxas models are pre programmed so adding a new Traxxas model to your transmitter is a snap. Traxxas models factory equipped with TQi Traxxas Link receivers are detected and configured automatically.

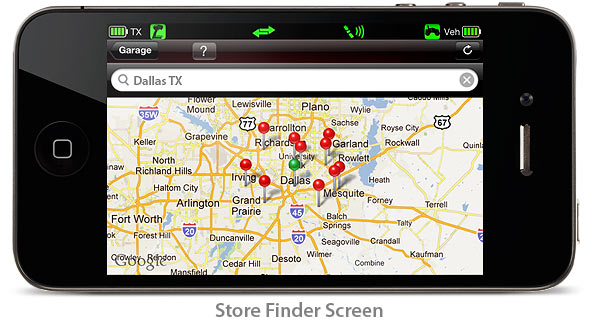

Traxxas Link is also a handy tool for finding the hobby shop or Traxxas retailer closest to you and pinpointing them on a map. Access support tools, vehicle information, updates, built in contextual help and more.

Authentic NHRA-style Drag Racing CompetitionnWith Traxxas Link and the DTS-1 Drag Timing Systemm

Traxxas Link makes it simple to select the DTS-1's Staging and Tree modes and select one or both lanes. Tap the name fields to input each driver and Dial-In times for bracket racing. Touch Start Raceand DTS-1 signals the drivers to enter the staging beams. It all happens right from your TQi transmitter with the easy-to-use Traxxas Link interface.

The DTS-1 captures the data from each race with millisecond accuracy for display in the Traxxas Link App. Race winner, Elapsed Time, and MPH are shown with digital precision. Share and Commentbuttons make it easy to send results to friends, or attach comments to the results. Touch Show Timeslip and Traxxas Link reveals even more race data.

The Traxxas Link timeslip display replicates the paper timeslip you would collect at the "ET shack" after a run on a full-size drag strip. Elapsed time (ET), trap speed (MPH), Reaction Time (RT) and dial-in time (if used) are displayed along with the margin of victory. Driver name, lane choice, and race date are shown beneath the customizable track name. Traxxas Link and DTS-1 make it easy to organize and run exciting, competitive drag races quickly and easily in your driveway with friends or at the hobby store with a full field of competitors.  The Traxxas Link App with DTS-1 Support is now available on the App Store.

DTS-1 Setup and Diagnostics

Select Tree Mode (Spotsman or Pro) and Staging Mode (Pro, EZ. Hand), and activate Practice or Bracket racing mode with a touch. Pre-programmed distances for scale quarter-mile racing can be selected, or you can input your own custom distance.

Customize your DTS-1 with advanced settings that allow you to alter the amount of time DTS-1 allows for each staging mode, race timeout, even how long the screen displays results after each race. Traxxas Link makes it easy to set up the DTS-1 to race your way.

>

Traxxas Link's diagnostic screen confirms beam alignment, shows battery life in each console, displays laser temperature and even lets you know if the optional cooling fans are running. Troubleshooting is done for you, no guesswork involved.

Device Requirements

Traxxas Link is designed for iPhone 3G, iPhone 3GS, iPhone 4, iPhone 4S, and iPod touch 2nd, 3rd, and 4th generations. For full functionality, Traxxas Link requires a Traxxas TQi transmitter with Docking Base and a TQi receiver installed in the model. Telemetry functions require Traxxas telemetry sensors to be installed on your model.

Features

• Included Accessories:
  • 1200mAh 5-cell receiver battery
  • 1500mAh 6-cell EZ-Start pack
  • Fuel filler bottle
  • Extra glow plug
  • Extra oiled air filter
  • Long travel rockers & springs
• Wide-track body with custom graphics
• TQi 2.4GHz High Output radio system with Docking Base
  • TQi 2.4GHz High Output transmitter
  • TQi Docking Base
  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, "model selection" is not required
  • Multi-Function knob
  • Adjustable steering and throttle percentage (dual rates)
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle end points
  • High 13ms frame rate and near-zero latency for responsive control
  • Telemetry-ready 5-channel micro receiver with dual channel-1 input
  • Docking Base accepts iPhone and iPod touch (sold separately) for full Traxxas Link application functionality
  • Factory installed speed, RPM, and temperature telemetry sensors
  • TQi 2.4GHz 5-channel micro receiver (#6518) with fail-safe security and integrated telemetry ports

• 17mm hex Geode mirror-chrome­
  wheels with pre-glued on 6.3" Maxx-Sized Tires
• 17mm aluminum splined wheel hubs and nuts
• Large capacity 150cc fuel tank
• Hard-anodized PTFE-coated GTR shocks
  with TiN shock shafts
• High flow dual-stage air filter­
• Installed progressive 2 long travel rockers
• Dual 2075 digital high-torque, ball bearing steering servos deliver 250 oz-in & 0.16-sec transit time
• Blue-anodized chassis and chassis brace­
• RX box includes 5-cell flat rechargeable RX pack
• Heavy-duty reversing OptiDrive transmission
  • Two-speed forward/reverse transmission
  • Low rotating mass for quick, high-revving acceleration
  • Constant drive engagement is smooth and instantly responsive
  • Sealed case protects gears & two-speed from damaging debris­
• Large diameter front disc brake­
• Polished Resonator dual chamber tuned pipe
• High-revving TRX 3.3 Racing Engine for proven championship-winning horsepower and speed
  • Bigger piston and sleeve delivers extreme power
  • Consistent and smooth throughout the entire power band
  • Straight-through exhaust flow
  • Slide carburetor
  • Knife-edged connecting rod
  • Large aluminum blue-anodized cooling head
  • Super-light piston and rod
  • High-performance ball bearings
  • Backed by Traxxas Lifetime Engine Replacement Plan.
• 45+mph top speed
• EZ-Start push-button electric starting.
• Torque-Control slipper clutch
• Sealed limited slip front and rear differentials
• Super-duty sealed driveshafts
• Sealed pivot ball suspension
• Rubber-sealed ball bearings
• Hex hardware
• ProGraphix body graphics


Specification

REVO 3.3 (#5309) SPECS

MODEL 5309: Fully assembled, Ready-To-Race, with TQi 2.4GHz radio system with Docking Base, TRX 3.3 Racing Engine and ProGraphix painted body.

Click here for more Information

Manual

Instructions

• 5498 Revo Swaybar installation instructions
• 5333R Adjustable Wheelbase Suspension Arms Instructions
• 5451R CV Driveshaft Installation & Parts Instructions
• Differential Rebuild Instructions (Covers #5379X, 5380, 5381, 5382X, 3978)
• GTR Aluminum Shock Rebuild Instructions (Covers #5460, #5462, #5466R)
• 5414, 5414X Revo Center Differential Instructions
• 5395X Forward/Reverse Kit Instructions
• 5394X Forward Only Conversion
• 5383-5384 Close Ratio Gear Set Instructions
• 5360X Big Block Installation Kit Instructions
• 5211R Roller Clutch Bearing Instructions (OWB)
• Nitro Temp Sensor Installation
• Tuning Card for TRX 2.5 and TRX 3.3 Engines
• 5464 Shock Dust Boot Instructions
• 5459 Center Driveshaft Instructions
• 5396x Primary Gear Instructions
• 5384 Close Ratio Gear Set Instructions
• 5383 Close Ratio Gear Set Instructions
• 5381X Spool Installation Instructions
• 5364X Vented Brake Disc Instructions
• 5360 Engine Mount Replacement Instructions
• Rocker Arm Instructions, Long Travel (Covers #5356, #5357, #5358, #5359)
• 5355 Bump Steer Elimination Instructions
• 5352 Slipper Clutch Instructions
• 5345X Servo Horns Instructions
• 5339 Tube Insert Instructions
• 5338R Aluminum Toe Link Tubes Instructions
• 5338 Toe Link Instructions
• 5221 Multi Shaft Crankshaft Instructions
• 5417 Dual Rear Brake Kit Installation Instructions
• 5397-5398 Revo Opti Drive Wiring
• 3030X TRX Power Charger System Instructions
• 5398 Optidrive System Wiring Instructions
• Servo (#2018, #2055, #2070) Gear Set (#2010, #2053, #2072) Installation/Assembly
• 4091 On-Board Temperature Meter Instructions (for TRX engines)
• 5280 EZ-Start Instructions Addendum
• 3036 and 3037 TRX Power Pack Battery Care
• 5398 Opti-Drive Setup and Programming Instructions
• 5398 Opti-Drive Setup for After-Market Radio Systems
• OptiDrive Setup for After-Market Radio Systems

Parts List

Exploded Views

• 5309 Chassis Exploded View (Revo 3.3, w/ TQi 2.4GHz/Docking Base)
• 5309 Driveshafts Exploded View (Revo 3.3, w/ TQi 2.4GHz/Docking Base)
• 5309 Rear Exploded View (Revo 3.3, w/ TQi 2.4GHz/Docking Base)
• 5309 Transmission Exploded View (Revo 3.3, w/ TQi 2.4GHz/Docking Base)
• 5309 Front Exploded View (Revo 3.3, w/ TQi 2.4GHz/Docking Base)
• 2065 Sevo Assembly
• 2060 Micro servo

SetUp Sheet

• Revo Setup Sheet (#5308) (Steve Slayden, Base Race Setup)
• Revo Platinum Setup Sheet (#5304) (Slayden, Base Setup)
• Revo Setup Sheet (Roberts, 2007 ROAR Truck Nationals)
• Revo Setup Sheet (Battaile, 2007 USMT Champs)
• Revo Setup Sheet (Roberts, 2007 USMT Champs)
• Revo Setup Sheet (Slayden, 2007 USMT Champs)
• Revo Setup Sheet (Battaile, 2007 Rodslinger MT Extreme)
• Revo Setup Sheet (Roberts, 2006 R/C Pro Series National Finals)
• Revo Setup Sheet (Slayden, 2006 R/C Pro Series National Finals)
• Revo Setup Sheet (Slayden, 2006 ROAR Fuel Truck Nationals)
• Revo Setup Sheet (Tillman, 2006 ROAR Fuel Truck Nationals)
• Revo Setup Sheet (Slayden, 2006 RCCA Monster Madness IV)

Miscellaneous

Traxxas 1/10 Scale Revo 3.3 4WD Monster Truck - 5309 TRA-5309$549.99Color: - Please Select One -BlueGreenRedSilver

Fast Gas Scooters are in stock at cheap gas scooter prices. Electric scooters are now being featured. More scooters can be found here: Gas Scooters Site Map & © Copyright Gas Scooters.netThis site contains some affiliate links for which we may be compensated..
