The Fastest Ready-To-Race
Electric
Stadium Truck You Can Buy!
Now Includes Power Cell LiPo Battery and LiPo Balance Charger!
- Extreme Brushless Horsepower!
- TQi 2.4GHz Radio System
- Traxxas Power Cell LiPo Battery and LiPo Balance Charger Included!
- Waterproof Electronics for All-Weather Driving Excitement
- Top Speed: 70+mph!
Rustler VXL
combines Velineon extreme brushless horsepower
with the proven fun and durability that have made Rustler the number-1 selling
electric stadium racer. The new Velineon Brushless Power System launches Rustler
VXL to new heights with speed potential that reaches beyond 70mph! Hardcore,
wheel-standing acceleration completely blows everything else away. Out of the
box, Velineon is optimized to actually deliver the tire-melting horsepower,
benchmark speed, and precision throttle response you expect from brushless. Best
of all, it's brushless done the Traxxas way: wicked fast and easy
to use. There's no tricky programming to figure out or a glossary
of new vocabulary to learn. Just plug it in and it works.
The Velineon Brushless Power system takes the
guesswork out of enjoying the benefits of world-class brushless power. The
system components work together as an optimized package, engineered from the
start to deliver the ultimate in efficiency, speed, and run time. With the

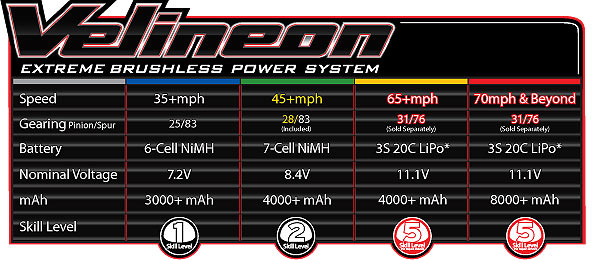

Rustler VXL, Your battery selection determines your speed and skill level.
Velineon accepts the widest range of battery types, including 3-cell Lithium
Polymer packs (3S LiPo packs). These packs pump out over 11 volts of power for
intense, skill level 5 speeds beyond 70mph! Nothing else even comes
close. Built-in low-voltage detection in the VXL-3s Electronic Speed
Control conveniently helps you maintain your LiPo battery packs in top
condition.
Designed
from the start for high-voltage, high-capacity LiPo packs, Traxxas’ Rustler VXL
now includes a genuine Traxxas Power Cell LiPo battey—the only LiPos certified
to deliver the full performance potential of Traxxas’ VXL brushless models. The
Rustler VXL includes a 3300mAh Power Cell pack. Rustler VXL arrives with Low
Voltage Detection activated to assure maximum battery life and prevent
over-discharging.
Charging
care is just as important to LiPo life and performance, so a 2-Cell / 3-Cell
LiPo Balance charger is also included. Just plug the battery’s balance plug into
the charger and you’re on the way to another run—no programming or settings
required. Every time the pack is charged, the cells are charged individually to
precisely balance voltage for optimum performance, run time, and cycle life.
Experience the ultimate in electric horsepower with the only models designed for
LiPo power from the start, and genuine Power Cell LiPo technology on board.
The World's Most Advanced Ready-To-Race Radio System
Rustler VXL is equipped with the world's most advanced Ready-To-Race radio
system. The all-new Traxxas TQi arrives with a full complement of
tuning features and offers the unbeatable convenience of "no channels, no
crystals" 2.4GHz technology—but that's just the beginning. Automatic model
recognition instantly recalls your settings for up to 30 Traxxas Link-enabled
models. Just switch on and drive, no naming or "model memory" settings required.
Power up the transmitter and the model you want to drive, and the settings for
that model are dialed in immediately! The new TQi 2.4GHz transmitter is fully
adjustable: steering and throttle end points can be set precisely, and the
Multi-Function knob can be programmed to control Steering Sensitivity (Expo),
Throttle Sensitivity (Expo), Steering Percentage (Dual Rate), Braking Percentage
(Dual Rate), or Throttle Trim. TQi's ergonomic case design provides all-day
driving comfort, and the unique internal antenna contributes to its sleek,
modern look.
TQi
Docking Base Compatible
The TQi's most important new feature may
already be in your pocket. The TQi can be equipped with an optional
Docking Base (#6510) that turns your iPhone or iPod
touch (sold separately) into a powerful tuning tool for your Traxxas model. The
full-color display combines with the free Traxxas Link App (on the
App Store) to deliver an intuitive, high-definition, full-color
graphical user interface that unlocks the mysteries of optimizing your radio
system for ultimate vehicle control. Traxxas Link also opens the door to
telemetry capability when you add optional sensors to your model. Click on one
of the following links to learn more about the ground-breaking TQi
radio system, TQi Docking Base, and the Traxxas
Link Application.
Sealed Electronics Extend Your Driving Fun
Traxxas
shocked enthusiasts with the release of our exclusive watertight,
sealed electronics in the E-Maxx that provided the freedom to drive
where you want to drive through water, mud, snow, and other wet-running
conditions that wouldn't have been possible before. Now the Traxxas Rustler VXL
is Ready-To-Race with this waterproof technology. The VXL-3s speed control, high
torque servo, and mini receiver are sealed against the elements giving you the
freedom go places you might not have thought possible. It opens up a whole new
world of adventure and fun. Wet muddy tracks are no problem for the Rustler VXL.
The
Velineon 3500 Brushless Motor is precision-matched for use in the 1/10th scale
Rustler, delivering the perfect balance of brutal horsepower and efficiency. The
sensorless design works with the sophisticated circuitry in the VXL-3s
Electronic Speed Control for smooth starts and precise control, without the need
for additional sensors and wiring. Since there are no brushes or commutator to
cause friction and wear, Velineon brushless power is always fast, run after run.
The
Velineon VXL-3s forward/reverse electronic speed control simplifies brushless
technology with easy operation that gives you all the control you need for
maximum fun. Quickly choose from 3 drive profiles in exactly the same manner as
other Traxxas electronic speed controls (such as the XL-5). Profiles include:
Sport, Race, and Training Mode (patent pending). Training Mode limits
full-throttle power to 50% allowing young or new drivers to safely develop their
control skills before unleashing the full-throttle capability of the Velineon
system. Rustler VXL's performance can be tailored for drivers of any age and
experience. High-frequency transistors and advanced circuit design deliver
incredibly smooth and refined throttle control. With the VXL-3s you have the
flexibility to use conventional brushed motors, brushless motors, and sensored
brushless motors. The VXL-3s auto detects the motor type for you. High-current
capacity (320 amps peak) and two-stage thermal protection frees you from motor
limits.
The Rustler VXL is equipped to handle serious horsepower with features such as
the advanced Revo-spec Torque-Control slipper clutch. The patent-pending
design delivers smooth operation, precise adjustment, and consistent traction
control, even when tortured with massive amounts of horsepower. New upgrades to
the Rustler VXL include high-grade hex hardware, precision metal turnbuckle
links with heavy-duty rod ends, and larger 5x11mm rubber-sealed ball bearings at
the wheels. The transmission is beefed-up as well with tough new steel gears.
With so much speed available, the Rustler VXL is equipped with a digital
high-torque steering waterproof servo (#2075) for
lightning-quick steering response and confidence-inspiring precision.
QUICK FEATURES ON RUSTLER VXL (#3707L)
- TQi 2.4GHz Radio System
- Waterproof Electronics
- Power Cell 3300mAh 2-Cell LiPo Battery
- 2-Cell/3-Cell LiPo Balance Charger
- Traxxas High-Current Connector
- Maxx Cable 12-gauge wiring
- Digital high-torque steering waterproof servo
- Precision steel turnbuckles with heavy-duty rod ends
- Metric hex hardware
- Front suspension tie bar
- Steel transmission gears
- 5x11 rubber sealed ball bearings at the wheels
Traxxas backs the Rustler VXL and all of their products with top-notch
support that is second to none. A staff of skilled representatives is on-hand to
answer your questions via phone, website, or email. Unmatched parts support
allows Rustler VXL to be serviced with parts and support from thousands of hobby
dealers worldwide. Your investment is also protected by the Traxxas
Lifetime Electronics Warranty. Traxxas goes the extra mile to ensure that your
R/C experience is easy and fun (and fast!). Follow the details link
above to go in depth on all the Rustler VXL performance benefits and also be
sure to check out the videos page to see Rustler VXL
in action for yourself.
Anaconda
2.8" Tires (sold separately)
If your favorite place to race is
an asphalt jungle, transform your Rustler VXL into an ultimate street machine
with availableAnaconda 2.8" street treads. These sticky, high-traction tires are
made for aggressive handling on paved surfaces. The proven Anaconda design
features large tread blocks that provide incredible grip and long-wearing
performance. Buy them pre-glued and ready to install for instant on-road action.
MODEL 3707L: Fully assembled, Ready-To-Race, TQi
2.4GHz Radio System, Velineon Brushless Power System, Power Cell
3300mAh 2-cell LiPo battery, LiPo Balance Charger, and ProGraphix painted
body.
Details
The World's Most Advanced Ready-To-Race Radio System
Total Control. Traxxas models deserve the world's most
advanced Ready-To-Race radio system. The radio system after all is
the sole connection between the driver and machine. It has to be precise,
comfortable, powerful, and reliable. The all-new Traxxas TQiiradio system arrives with a full compliment of tuning features; long-range,
high-output, 2.4GHz signal, and proven Traxxas reliability for rock-solid
performance. It's so advanced; it doesn't even need an external antenna.
However, the most important new feature may already be in your pocket. The TQi
can be equipped with an optional Docking Base ((#6510#6510) that turns
your iPhone or iPod touch into a powerful tuning
tool for your Traxxas model. The full-color display combines with the Traxxas
Link App to deliver an intuitive, high-definition, full-color graphical
user interface that unlocks the mysteries of optimizing your radio system for
ultimate vehicle control.
5-channel
Micro Receiver with Fail-Safe Security
The TQi 2.4GHz micro
receiver fits easily into any vehicle, and features dual channel-1 outputs for
easy installation in vehicles with dual steering servos—no Y-harness necessary!
The integrated LINK button makes it fast and easy to bind the receiver, and the
two-color LED indicates power-on and bind status for fool-proof control and
convenience. Traxxas Link Model Memory allows the receiver to recognize up to
thirty TQi 2.4Ghz Traxxas Link enabled transmitters—just switch on and drive. In
the event of signal loss due to an accidental switch-off or depleted batteries,
the receiver will automatically return the throttle to neutral and hold the last
commanded steering position. The Fail Safe programming is built-in and does not
need to be set or activated. Three telemetry ports are incorporated in the
5-channel receiver to allow real-time data to be transmitted from your Traxxas
model to the TQi transmitter.
Sealed
Watertight Receiver Box
Rustler VXL's receiver is fully enclosed
for protection from the elements. The antenna and servo wires route neatly
through a special watertight seal, and a custom blue O-ring seals the receiver
box to protect the receiver from water. The receiver can be removed for service
and aftermarket receivers can be installed without losing the sealing properties
of the box. Patent pending.
Velineon VXL-3s
ESC:
Designed from the start for high-voltage, high-capacity LiPo packs, Traxxas’
Rustler VXL now includes a genuine Traxxas Power Cell LiPo battey—the only LiPos
certified to deliver the full performance potential of Traxxas’ VXL brushless
models. The Rustler VXL includes a 3300mAh Power Cell pack. Rustler VXL arrives
with Low Voltage Detection activated to assure maximum battery life and prevent
over-discharging.
Charging
care is just as important to LiPo life and performance, so a 2-Cell / 3-Cell
LiPo Balance charger is also included. Just plug the battery’s balance plug into
the charger and you’re on the way to another run—no programming or settings
required. Every time the pack is charged, the cells are charged individually to
precisely balance voltage for optimum performance, run time, and cycle life.
Experience the ultimate in electric horsepower with the only models designed for
LiPo power from the start, and genuine Power Cell LiPo technology on board.
Velineon 3500
Brushless Motor:
- Ultra high-temperature sintered Neodymium magnets
- Optimized for power and efficiency in 1/10th scale vehicles
- Consistent, high-power output, run after run
- Low-maintenance, unique Traxxas design
- Efficient, high-speed ball bearings
- Precision-balanced rotor
- Accessible solder tabs
- Protective end cap
- 10-Turn, 3500kV
- Rebuildable
- Hex hardware
- Brilliant blue-anodizing finish
- Silicon steel laminations
- Delivers more power than comparable brushed motors
Traxxas
High-Current Connector
Rustler's Velineon Brushless Power System features the
new Traxxas High-Current Connector. Designed to handle high-current
applications, the Traxxas Connector effortlessly funnels your battery's total
power to the electronics to keep things running cool and at full capacity.
Maxx
Cable 12-Gauge Wire
This super-flexible, high-current, low-resistance
12-gauge, wire acts like a series of giant pipes, flowing energy in and out of
the electronic speed control. The Traxxas Connector combined with Maxx cable is
a better engineered solution for extracting all the power your battery has to
give.
Hex Hardware
Pro-quality, high-grade, metric hex-drive hardware is used
throughout for extra strength, and easy maintenance and repair. The black-oxide
rust-resistant finish provides a high tech look and feel.
Rubber-Sealed
Ball Bearings
Precision 5x11mm rubber-sealed bearings offer the ultimate in
super low-friction performance and maximum protection in dirty environments.
They are used in all exposed locations on the truck and are virtually
maintenance free.
Heavy-Duty
Hub Carriers & Steering Blocks
Rustler VXL features all new ball bearing
front steering blocks and rear hub carriers. They utilize large 5x11mm ball
bearings for long-term precision performance, smooth operation, and increased
durability.
Adjustable
Steel Turnbuckles
Factory fitted, heavy-duty steel turnbuckles allow camber
and toe tuning. Rustler VXL is completely adjustable right out of the box to
fine tune handling agility and high-speed performance. Captured rod ends provide
unmatched durability and they simply won't pop off.
Tires
and Wheels
The Rustler VXL features new 2.8" All-Star
black-chrome wheels. Alias rear tires feature a step-pin design, front Alias
ribbed tires provide superior control, and performance-engineered foam inserts
keep the truck firmly planted on extreme off-road terrain.
The
black-chrome All-Star wheels feature a lightweight horizontal bead that holds
the tire to the rim even under extreme rpm. Performance-designed foam inserts
are standard and all tires come pre-glued from the factory to get you rolling
right out of the box.
Anaconda
2.8" Tires (sold separately)
If your favorite place to race is an asphalt
jungle, transform your Rustler VXL into a menacing street machine with available
Anaconda 2.8" street treads. These sticky, high-traction tires are made for
aggressive handling on paved surfaces. The proven Anaconda design features large
tread blocks that provide incredible grip and long-wearing performance. Buy them
pre-glued and ready to install for instant on-road action. With Rustler VXL's
amazing 70+mph performance, you'll have the on-road touring crowd headed back to
the workbench to try and figure out how to catch you.
Revo-spec
Torque-Control Slipper Clutch
Revo technology is utilized to manage the
increased power from the Velineon 3500 brushless motor. The Torque-Control
slipper clutch uses special semi-metallic friction material and finned aluminum
alloy pressure plates to dissipate heat and provide consistent yet adjustable
traction control. The semi-metallic friction material remains stable across a
wide temperature range to provide smooth, linear engagement you can count on,
run after run. Spur gears can be removed and replaced without altering the
slipper adjustment.
Included
Optional Pinion Gear
The Rustler VXL reaches a scorching 70+mph top speed
using an optional 31-tooth pinion gear, 76-tooth spur gear, and a 3-cell 11.1V
Lithium-polymer battery pack (sold separately). Out of the box, the installed
25-tooth pinion gear is just right for all-around, on or off-road action.
Installing the included optional 28-tooth pinion gear opens the door to
breakneck 60+mph speeds!
Magnum
272 Transmission
The Rustler VXL's Magnum 272 transmission is assembled with
new all metal gear internals riding on ultra-smooth sealed ball bearings.
Combined with the smooth 48-pitch gears, power is delivered quietly to the
durable telescoping U-joint driveshafts. The sealed gearbox protects the
transmission components from dirt and rocks.
Planetary
Gear Differential
The composite Traxxas planetary gear differential now
features a steel ring gear with a nylon housing for long life. It uses hardened
steel internal gears for maximum strength during rigorous off-road bashing. This
type of differential requires virtually no maintenance and its efficient design
puts maximum tire-shredding torque to the wheels.
New
Yokes with Telescopic Driveshafts
Rustler VXL features new drive yokes
which are designed to provide maximum durability to withstand the extreme power
of the Velineon Brushless Power System. The slider driveshafts are extremely
durable, and they allow greater articulation for increased suspension travel.
Gray
Nylon Composite Parts
The durable monocoque chassis tub is made from highest
quality nylon composites. Many parts including the chassis, shock bodies, and
transmission housing are molded in gray for a fresh high-tech look.
Powder
Coated White Springs
New white springs feature a race-tuned spring rate for
more responsive handling and the long-lasting, white powder coated finish sets
Rustler apart from the pack.
Securely
Mounted Electronics
The ESC and receiver are screwed to the chassis for
ultimate mounting security. There's no servo tape to loosen over time with dirt,
heat, and collisions.
ProGraphix Bodies
The new low-profile, aggressive Rustler VXL's body comes fully trimmed and
painted. The rear wing mounts to the body using countersunk aluminum hardware
for unmatched strength. The Rustler VXL ProGraphix body is available in red,
blue, black, and silver. Decals are also applied to save you time and get you
driving just minutes out of the box. Traxxas' ProGraphix bodies are the hottest
looking bodies around and are only available on Traxxas Ready-To-Race models.
Digital
High-Torque Waterproof Steering Servo
A race truck needs a powerful steering
servo for responsive performance. A Traxxas digital high-torque, ball bearing
steering servo comes standard for precision control, quick response, and
unmatched torque—all in a waterproof case. It has over 50% more torque than the
Rustler's 2056 servo and is 25% faster! That's 125 oz-in torque, 0.16-second
speed!
Oil-Filled
Ultra Shocks
Rustler's oil-filled Ultra Shocks utilize X-ring technology for
a perfect seal and super-smooth performance. They are fully tunable with a wide
range of oils, springs, and pistons. Features include pressure bladders for
air/oil separation and spring clips to precisely change the ride height and
spring pre-load. They can be renewed in minutes with our inexpensive rebuild
kits.
Bellcrank
Steering
High-performance bellcrank steering system minimizes bump steer to
increase cornering stability.
Suspension
Tie Bar
The composite tie bar strengthens the front bulkhead and
suspension arms for increased durability.
Features
MODEL 3707L: Fully assembled, Ready-To-Race,
TQi 2.4GHz Radio System, Velineon Brushless Power System,
Power Cell 3300mAh 2-cell LiPo battery, LiPo Balance Charger, and ProGraphix painted
body.
Specification
RUSTLER VXL (#3707L) SPECS
| Length: |
|
17.5" (445mm) |
| Front Track: |
|
12.25" (311mm) |
| Rear Track: |
|
12.25" (311mm) |
| Weight: |
|
59.6oz (1.69 kg) |
| Height (overall): |
|
7" (178mm) |
| Wheelbase: |
|
11.375" (289mm) |
| Front Shock Length: |
|
Long |
| Rear Shock Length: |
|
XXLong |
| Front Tires (pre-glued): |
|
Alias Ribbed 2.8" |
| Rear Tires (pre-glued): |
|
Alias Step-Pin 2.8" |
| Front Wheels: |
|
2.8" Black-Chome (All-Stars) |
| Rear Wheels: |
|
2.8" Black-Chome (All-Stars) |
| Electronic Speed Control: |
|
VXL-3s Electronic Speed Control |
| Motor (electric): |
|
Velineon 3500 Brushless |
| Gear Ratio (internal): |
|
2.72 (final drive: 9.05) |
| Differential Type: |
|
Planetary |
| Gear Pitch: |
|
48-Pitch |
| Transmission: |
|
Magnum 272 |
| Steering: |
|
Bellcrank |
| Chassis Type: |
|
Modified Tub |
| Chassis Material: |
|
Composite Nylon |
| Radio System: |
|
TQi 2.4GHz Radio System |
| Top-Speed: |
|
70+mph |
| Skill Level: |
|
4 |
| Battery Tray Dimensions: |
|
139mm x 47.5mm x 28mm |
| Included Batteries: |
|
Traxxas Power Cell
LiPo Battery (3300MAH, 7.4V, 25C, 2S) |
| Included Charger: |
|
Traxxas 2-Cell / 3-Cell LiPo Balance Charger |
| Required Batteries: |
|
4 "AA" (transmitter) |
RUSTLER VXL SPEED & SKILL LEVEL CHART
| SPEED |
35+mph
|
45+mph
|
65+mph
|
|
GEARING
pinion/spur |
25/83
|
28/83
(included)
|
|
|
| BATTERY |
6-Cell NiMH
|
7-Cell NiMH
|
|
|
NOMINAL
VOLTAGE |
7.2V
|
8.4V
|
|
|
| mAh |
3000+ mAh
|
4000+ mAh
(#2951)
|
|
|
| SKILL LEVEL |
1
|
2
|
|
|
VXL-3s (WATERPROOF) ESC SPECIFICATIONS
| Input Voltage: |
|
NiCad/NiMH 4-9 Cells (4.8 to 10.8 Volts DC);
LiPo 2-3 Cells (7.4
to 11.1 Volts DC) |
| Case Size: |
|
39mmW x 55mmD x 33mmH |
| Weight: |
|
90 grams |
| Motor Limit (Brushed/Brushless): |
|
No motor limit |
| On Resistance Forward: |
|
0.00075 Ohms |
| On Resistance Reverse: |
|
0.00075 Ohms |
| Peak Current - Forward: |
|
320A |
| Peak Current - Reverse: |
|
320A |
| Braking Current: |
|
320A |
| Continuous Current: |
|
200A |
| BEC Voltage: |
|
6.0 V |
| BEC Current: |
|
2.5A (with 6-cell NiMH) |
| Power Wire: |
|
12-Gauge Maxx Cable |
| Input Harness Wire: |
|
26 Gauge / 100mm |
| Transistor Type: |
|
MOSFET |
| Low Voltage Detection: |
|
2-Stage indicators, switchable (on or off) |
| Thermal Protection: |
|
2-Stage thermal shutdown |
| Profile selection: |
|
Sport Mode:
100% FWD, 100% BRAKES, 100% REV
Race Mode:
100% FWD, 100% BRAKES, NO REV
Training Mode:
50% FWD, 100%
BRAKES, 50% REV |
| Single-Button Setup: |
|
Yes, Traxxas EZ-Set |
| Battery Input Connector: |
|
Traxxas High-Current Connector |
| Motor Types (Autodetect): |
|
Brushed, brushless, sensored brushless |
| Ports: |
|
RX Input, motor sensor, auxiliary fan |
MODEL 3707L: Fully assembled, Ready-To-Race,
TQi 2.4GHz Radio System, Velineon Brushless Power System,
Power Cell 3300mAh 2-cell LiPo battery, LiPo Balance Charger, and ProGraphix painted
body.
Click here for more Information
Manual
Instructions
Parts List
Exloded Views
Watch A Video of This Model
Video - 1
Video - 2
