Traxxas is the Official Hobby-Class Radio Control Truck of
- Officially Licensed Grave Digger body and
- New Monster Jam tires with detailed tread
- Authentic beadlock-style wheels
- Waterproof electronics for all-weather driving
water, mud and snow!
- Titan 12-Turn 550 Motor
- Powerful XL-5 Waterproof Electronic Speed Control
Traxxas, the Official Hobby Class Radio Control Truck of Monster Jam, now offers
five officially licensed Monster Jam models, each fully assembled and
Choose from 30th Anniversary
Auto Parts Grinder;
all feature pre-applied decals with officially licensed graphics to precisely
duplicate the full-size monster machines. Grave Digger even includes custom
molded green ladder bars and bumpers to capture the menacing look of Monster
Jam's fiercest competitor. New tires developed specifically for the Monster Jam
models emulate the "hand carved" look of the full-size treads, and new deep-dish
wheels with bead-lock detailing complete the aggressive, authentic look.
cars, catching big air, and popping wheelies has never been this much fun, and Traxxas' new Monster Jam models make the action more realistic than ever. When it comes to speed, the Titan 12-turn 550 modified motor and racing-style Magnum 272 transmission propel the Grave Digger to speeds over 30mph. The integrated cooling fan in the Titan 12T pulls air through the motor keeping it cool. Airflow is routed through cooling channels molded into the motor plate. A cooler running motor delivers faster speeds, longer runtime, and extended motor life.
Electronics Extend Your Driving Fun
shocked enthusiasts with the release off our
exclusive watertight, sealed electronicss that provide the freedom to drive where you want to drive through water, mud, snow, and other wet-running conditions that wouldn't have been possible before. The Monster Jam models'
XL-5 electronic speed control and the mini receiver are sealed against the elements giving you the freedom go places you might not have thought possible. It opens up a whole new world of adventure and fun.
To harnes the power of the 12-turn motor, Traxxas bolted in the
high-performance, waterproof XL-5 electronic speed control. Ultra-smooth, high-frequency operation and high-power handing capability, are standard features. EZ-Sett
one-button setup makes it easy to adjust or change profiles. Traxxas' exclusive Training Mode profile cuts total power output in half and leaves the brakes at full strength. It's the first controller of its kind that has a 50% power profile. Training Mode is designed for young or first time drivers that want to learn the ropes before unleashing the full power of the mighty Titan 12T motor. This makes the Grave Digger perfect for almost any age driver or skill level.
The quest for ultimate speed began with the battery connector. As today's batteries store more and more energy inside their cells, traditional battery connectors became a roadblock, unable to deliver all the energy the battery is capable of outputting. The new Traxxas High-Current Connector opens the door for unrestricted current flow.
The new Monster Jam models come fully loaded with innovative performance options like a fiber-composite chassis designed for exceptional rigidity and enormous ground clearance. Battery removal is made easy by the quick-release battery hold down latch. In addition, the factory-installed planetary differential never needs adjusting! Just take the truck out of the box, charge up a battery, and go have fun! If you're looking for an all-terrain truck that is perfect for monster bashing or wheelie-popping thrills, look no further.
QUICK FEATURES ON GRAVE DIGGER REPLICA
AM 27mHz radio system, Power Cell 3000 mAh NiMH 8.4V battery pack, and
- Officially Licensed Grave Digger graphics
- Realistic rubber tires on detailed beadlock-style
- Powerful Titan 12T 550 modified motor with internal
- XL-5 Waterproof Electronic Speed Control with Low
- Traxxas High-Current Connector
- High-torque waterproof steering servo
- 4 inches of ground clearance
- Brushless Ready Magnum 272 metal-gear transmission
with efficient rubber-sealed ball bearings
- Revo-Spec Torque-Control slipper clutch system
- Traxxas Tough durability
- Telescoping universal-joint driveshafts
- Top speed, 30+mph
MODEL 3602A: Fully assembled, waterproof,
Ready-To-Racee Grave Diggerr, with TQ radio, XL-5
Electronic Speed Control and Officially Licensed Monster Jamm replica
body and graphics.
Licensed Grave Digger Body and Graphics
Traxxas' Monster Jam models fully capture the
aggressive styling of their full-size counterparts, right down to Grave
Digger's misty graveyard mural graphics. And since it's Ready-To-Race, the
body is trimmed, mounted, and decaled for you.
Monster Jam Tires and Beadlock-Style Wheels
New tires developed specifically for the Monster Jam models emulate the "hand carved" look of the full-size treads, and are molded in a unique compound that hooks up for maximum acceleration and great grip on a wide variety of surfaces including dirt, grass, pavement, and rocks. New deep-dish wheels with bead-lock detailing complete the aggressive, authentic look.New tires developed specifically for the Monster Jam models emulate the "hand carved" look of the full-size treads, and are molded in a unique compound that hooks up for maximum acceleration and great grip on a wide variety of surfaces including dirt, grass, pavement, and rocks. New deep-dish wheels with bead-lock detailing complete the aggressive, authentic look.
Grave Digger's detailing one step further, with a blacked-out chassis,
custom-molded green ladder bars and bumpers, and green powder-coated springs
that complete the signature look of Monster Jam's fiercest competitor.
Titan 12-Turn 550 Modified Motor
Jam models come with a powerful Titan 12T 550 modified motor with internal
cooling fan. The Titan's over-sized armature (30% larger compared to 540-sized
armatures) is equipped with 12-turns of pure copper wire for big torque and
increased power-handling capabilities. Lower running temperatures are achieved
with the integrated cooling fan. The Titan 12T requires very little maintenance
and is designed for consistent torque and high speeds from run to run, without
Beyond the specs, the Titan 12T is made for rock crushing torque, hardcore
wheelie launches,explosive jumping, and just about any other 4-wheel fun that
demands real horsepower.
Power Cell Battery Included!
Grave Digger includes a Power Cell Battery Pack to make sure you experience all the performance that's been engineered into your Traxxas model. Power Cell packs are optimized for free-flowing power and maximum punch with premium quality, low-resistance cells; flexible, silicone-jacketed 12-gauge wire; heavy-duty welded tabs; and Traxxas' high-output, gold plated, high-current connectors. Seven cells deliver 8.4 volts of motivation for maximum speed, and precision assembly with attractive, individually wrapped cells and clear overwrap complete the Traxxas Power Cell package.
Waterproof Electronic Speed Control
Designed and engineered
by Traxxas, the XL-5 Electronic Speed Control handles the elements while
smoothly supplying power to the motor. This high-performance speed control
is packed with impressive specifications that are normally only found on
more expensive high-end replacement units. The XL-5 features a completely
waterproof design, LiPo-Readyy Low-Voltage Detection,
three throttle profiles, Thermal Shutdown Protection, 4-8 cell compatibility,
and built-in BEC. High frequency operation combined with ultra-low resistance
make the XL-5 an efficient and ultra-smooth fully proportional speed control. An
exclusive feature on the XL-5 is the patent pending Training Mode. This profile
reduces the overall power output of the XL-5 by 50% making it easier for young
or new drivers to develop their control skills before unleashing full-power
operation. The XL-5 is manufactured by Traxxas to ensure the highest level of
quality and support. Low Voltage Detection is a new feature for the Grave Digger
- Built-in two-stage low voltage detection (LVD) for Lithium
Polymer (LiPo) battery use
- Innovative watersealed design
Three Drive Profiles
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode - 50% Forward / Brake / 50%
Reverse (patent pending)
- 12-Turn motor limit for 550 size motors
- 15-Turn motor limit for 540 size motors
- Low-Voltage Detection
- Integrated on/off switch
- Traxxas EZ-Set one-button setup
- Large heat sink
- High-efficiency MOSFET transistors
Waterproof Digital Steering Servo
A monster truck needs a
powerful steering servo for responsive performance, and Traxxas delivers
with thee 2056 high-torque servo. This waterproof steering
servo uses O-ring seals to keep the fun going when things get wet. Waterproof
for all-weather action, the 2056 provides 80 oz-in of steering muscle. That's
twice the power of typical "standard" servos.
Traxxas' innovative receiver box is fully
waterproof, yet it's easy to access the receiver maintenance. The exclusive
patent-pending design holds a 4-channel micro receiver that saves weight and
provides reliable, long-range R/C performance.
Channel Micro Receiver
A four channel Traxxas micro
receiver gives you additional room to grow! The 4-channel micro receiver
features two steering servo ports, eliminating the need for a Y-harness.
The ESC and watertight receiver box are
screwed to the chassis for ultimate mounting security. There's no servo tape to
loosen over time with dirt, heat, and collisions.
Torque-Control Slipper Clutch
Revo technology is utilized
to manage the increased power from the Titan 12T motor. The Torque-Control
slipper clutch uses special semi-metallic friction material and finned aluminum
alloy pressure plates to dissipate heat and provide consistent traction control.
The semi-metallic friction material remains stable across a wide temperature
range to provide smooth, linear engagement you can count on, run after run. Spur
gears can be removed and replaced without altering the slipper adjustment.
Grave Digger features green springs for realistic
looks. Tough powder-coated finishes make sure the good looks last, while
carefully selected spring rates deliver peak multi-terrain performance.
Optional Pinion Gear
Grave Digger reaches their blistering
30+mph top speed on-road using the optional 23-tooth pinion gear (included) and
supplied Power Cell 7-cell battery. Out of the box, the installed 19-tooth
pinion gear is just right for all-around, wheelie-popping, off-road action.
Traxxas' proven oil-filled Ultra Shocks utilize
X-ring technology for a perfect seal and super-smooth performance. They are
fully tunable with a wide range of oils, springs, and pistons. Features include
pressure bladders for air/oil separation and spring clips to precisely change
the ride height and spring pre-load. They can be renewed in minutes with our
inexpensive rebuild kits.
Mount with Cooling Channels
The sealed gearbox protects the
transmission components from dirt and rocks. The molded motor plate now includes
finned cooling channels where the motor mounts to the motor plate. The cooling
channels work in conjunction with the internal Titan 12T motor fan to pull air
through the motor for superior cooling.
Ready Magnum 272 Transmission
Ready Planetary Gear Differential
Monster Jam fun requires a
monster-tough drivetrain. The Magnum 272 transmission is assembled with all
metal gear internals riding on ultra-smooth sealed ball bearings. Combined with
the smooth 48-pitch gears, power is delivered quietly to the durable telescoping
U-joint driveshafts. The sealed gearbox protects the transmission components
from dirt and rocks.
The composite Traxxas
planetary gear differential features a steel ring gear with a nylon gear housing
for long life. It uses hardened steel internal gears for maximum strength during
rigorous off-road bashing. This type of differential requires virtually no
maintenance and its efficient design puts maximum tire-shredding torque to the
Solid, durable camber links take the guess
work out of set-up and are captured to keep you on the trail even when the going
gets rough. Captured rod ends and one-piece camber links provide unmatched
durability and they simply won't pop off.

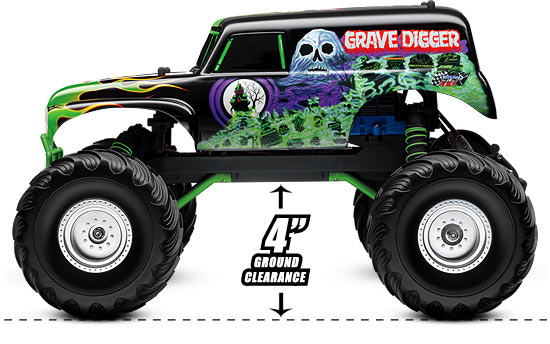

4" Ground Clearance
With 4-inches of center ground
clearance, Grave Digger goes places other trucks can't! Traxxas Monster Jam
models easily tackle real world obstacles such as tall grass, curbs, and rocks.
Slider driveshafts are
extremely durable, and they allow greater articulation for increased suspension
travel. Universal joints on both ends of the shafts deliver smooth, chatter-free
The included TQ radio system includes a
high-power transmitter with a specially designed comfort grip, a precise
high-torque steering servo, and a compact receiver. The perfectly balanced TQ
transmitter features servo reversing, a low battery indicator, electronic trim
control, and it is digitally proportional for precise steering and throttle
- Officially Licensed Grave Digger replica
- Monster Jam replica tires and wheels
- Waterproof electronics permit driving in water, mud
- Waterproof receiver box
- High-torque Waterproof Traxxas 2056 steering servo
- Monstrous 4-inches of ground clearance
- Included optional 23-tooth pinion gear pushes Grave Digger
speeds over 30mph.
- Powerful Titan 12T 550 modified motor with
internal cooling fan
- XL-5 Waterproof Electronic Speed Control
- Innovative watersealed design
- LiPo, NiCad, and NiMH compatible with two-stage
- High current handling
- Smooth high-frequency control
- EZ-Set push-button setup
- Thermal shutdown protection
- Integrated on-off button
- Three easy-to-program drive profiles
- Sport Mode – Forward / Brake / Reverse
- Race Mode – Forward / Brake
- Training Mode - 50% Forward / Brake / 50% Reversee (patent
- High efficiency MOSFET transistors
- Equipped with Traxxas High-Current Connectors
- Backed by the Traxxas Lifetime Electronics
- Speed control and receiver are securely screwed to
- Efficient Magnum 272steel-gear transmission with
- Sealed gearbox protects the transmission with
beefed up motor
guard for extra protection..
- Revo-spec Torque-Control slipper clutch system
- External gear cover with easy slipper access
- Reliable planetary gear differential
- Efficient telescoping U-joint driveshafts
- Fiber-composite chassis
- Easy access battery compartment
- Fully adjustable Ultra Shocks with X-ring
- Color-matched powder-coated shock springs with
responsive spring rate
- Durable solid camber links eliminate the need for
- Captured rod ends won't pop off for superior
- Unparalleled Traxxas support parts availability
MODEL 3602A: Fully assembled, waterproof, Ready-To-Race Grave
Digger, with TQ radio, XL-5 Electronic Speed Control and Officially
Licensed Monster Jam replica body and graphics.
GRAVE DIGGER MONSTER JAM REPLICA (#3602A)
||65.3oz (1.85 kg)
|Max Height (Grave Digger):
|Front Shock Length:
|Rear Shock Length:
||5.2" Monster Jam Tires
|Rear Tires (pre-glued):
||5.2" Monster Jam Tires
||2.0" Monster Jam Wheels
||2.0" Monster Jam Wheels
|Electronic Speed Control:
||XL-5 Electronic Speed Control
||Titan 12T 550 (12-Turn)
||#2056 High Torque Waterproof
||#2216 4-Channel Micro
|Gear Ratio (internal):
||2.72 (final drive: 12.34)
|Battery Tray Dimensions:
||138mm x 46mm x 26mm
||Traxxas Power Cell
Battery (NiMH, 7-C Hump)
||8 "AA" (transmitter)
XL-5 (WATERPROOF) ESC SPECIFICATIONS
4-8 Cells NiMH (4.8 to 9.6 volts)
2-cells (2S) LiPo (7.4 volts)
1.23"W x 2.18"D x 0.61" H
15-turns (540 Size)
12-turns (550 Size)
On Resistance Forward:
On Resistance Reverse:
Peak Current - Forward:
Peak Current - Reverse:
14 Gauge / 5"
Input Harness Wire:
26 Gauge / 9"
Low Voltage Detection (LVD):
2-Stage indicators, switchable (on or off)
FWD, 100% brakes, 100% REV
FWD, 100% brakes, no REV
50% FWD, 100% brakes, 50% REV
Yes, Traxxas EZ-Set
Fully assembled, waterproof, Ready-To-Race Grave
with TQ radio, XL-5 Electronic Speed Control and Officially Licensed Monster
body and graphics.
Click here for more information
Watch A Video of This Model
