Slash 4X4 Platinum Edition: Engineered the Traxxas Way, to Race Your
Way.
NEW Low-CG Chassis
NEW High-Volume GTR Shocks
The
next-generation Slash 4X4 Platinum Edition features an all-new Low-CG chassis
and high-volume shocks to deliver the ultimate in short-course racing
performance. The Platinum Edition arrives fully assembled and ready to complete
with your transmitter, receiver, and battery (not included). In place of the
radio system, the Platinum Edition is loaded with Traxxas' premium option parts
and accessories. Standard equipment includes machined aluminum suspension
components, front and rear swaybars (including a set of extra stiff 'bars), and
a clear body ready for your own signature paint style. The Platinum Edition also
includes a sealed, silicone-filled differential to replace the installed
Torque-Control slipper clutch when track conditions favor a center diff. The
Platinum's standout features are its Low-CG chassis and massive GTR shocks, both
all-new for the Slash 4X4 Platinum.
New Performance-Optimized Low-CG Chassis
Slash 4X4
Platinum's performance refinements begin with an all-new low center of gravity
(CG) chassis that's unlike anything you've seen before. The battery (not
included) and electronics are held as low as possible to position weight low in
the chassis. Extreme Brushless Power and 4WD require a chassis that won't flex
under load for arrow-straight, hard-charging acceleration. To offer the required
rigidity, smoothly integrated ribs form a triangulated structure that's
optimized for the loads imparted by the suspension and powertrain. Underneath,
the chassis is ultra-smooth to reduce drag and prevent snags whether you're
blasting through the whoops on the track or blazing trails in your backyard. The
low-CG design dramatically increases corner speed and stability no matter where
you drive. On the track, the low center of gravity allows the Slash 4X4 Platinum
to put Velineon power down with superior traction, resulting in harder launches
and faster lap times.
High-Volume
GTR Shocks
Traxxas GTR shocks represent the peak of suspension
technology and now set the standard for short-course damping and control. Shock
length has been customized for Slash 4X4 Platinum to deliver track-ready
suspension travel, and the hard-anodized shock bodies have 13mm bores to hold
over 70% more oil than the standard Slash 4X4's Ultra Shocks. The GTR shocks
feature PTFE-coated bores for nearly frictionless piston travel, and their slick
titanium-nitride coated shafts resist scuffing, increase durability, and
eliminate "stiction." The shocks are sealed by unique X-rings to keep oil in and
dirt out for smooth, consistent damping and plush suspension action, lap after
lap.
High-Strength, High-Precision Aluminum Components
Traxxas' premium-quality aluminum components add strength and beauty to the
Platinum Edition without compromising the track-bred suspension geometry built
into Slash 4X4. The Platinum Edition's steering blocks, C-hubs, and rear hub
carriers are all contructed of lightweight, high-strength aluminum for superior
durability and rigidity. Computer-controlled machining gives these parts
incredible precision, while and a brilliant-blue anodized finish adds high-tech
style. Laser-etched logos on the C-hubs show your truck is equipped with genuine
Traxxas performance parts.
Proven
Velineon Brushless Horsepower
The Traxxas Velineon power system
gives the Platinum Edition competition-ready power to match its track-bred
handling. The Velineon system is optimized for smooth, high-speed performance
and refined control to help you hug the fast line and precisely meter out power
at the edge of traction. Low Voltage Detection (LVD) is built in and activated
right out of the box, making the Platinum Edition ready for high-output LiPo
batteries (there's no better choice than genuine Traxxas Power Cell LiPos--click
here to see the options). If you're putting in laps with NiMH packs, LVD can be
turned off. On practice days, reverse control lets you back away from the pipes;
on race day, lock out reverse to follow the rules while everyone else follows
you. The VXL-3s speed control makes setting the throttle mode as easy as
pressing the EZ-Set button.
QUICK FEATURES ON SLASH 4X4 PLATINUM EDITION
(#6804R)
In addition to everything that already makes a Slash 4X4
great, the Platinum Edition adds these precision-engineered racing features:
- Rigid, low center of gravity chassis
- Hard-anodized and PTFE-coated aluminum GTR shocks with Titanium Nitride
shafts
- Blue-anodized 6061-T6 aluminum C-Hubs
- Blue-anodized 6061-T6 aluminum steering blocks
- Blue-anodized 6061-T6 aluminum rear hub carriers
- Blue-anodized 6061-T6 aluminum axle nuts
- Adjustable front and rear swaybars
- Included optional extra-stiff swaybar set
- Sealed, silicone filled center differential (included separately;
installs trackside in just minutes replacing the Torque-Control slipper)
- Officially-licensed BFGoodrich Mud-Terrain T/A Tires
molded in S1 race compound
- Clear polycarbonate body with overspray film and window masks
- Die-cut decals with details and sponsor logos
- Choose your own transmitter, receiver, batteries, and charger (sold
separately)

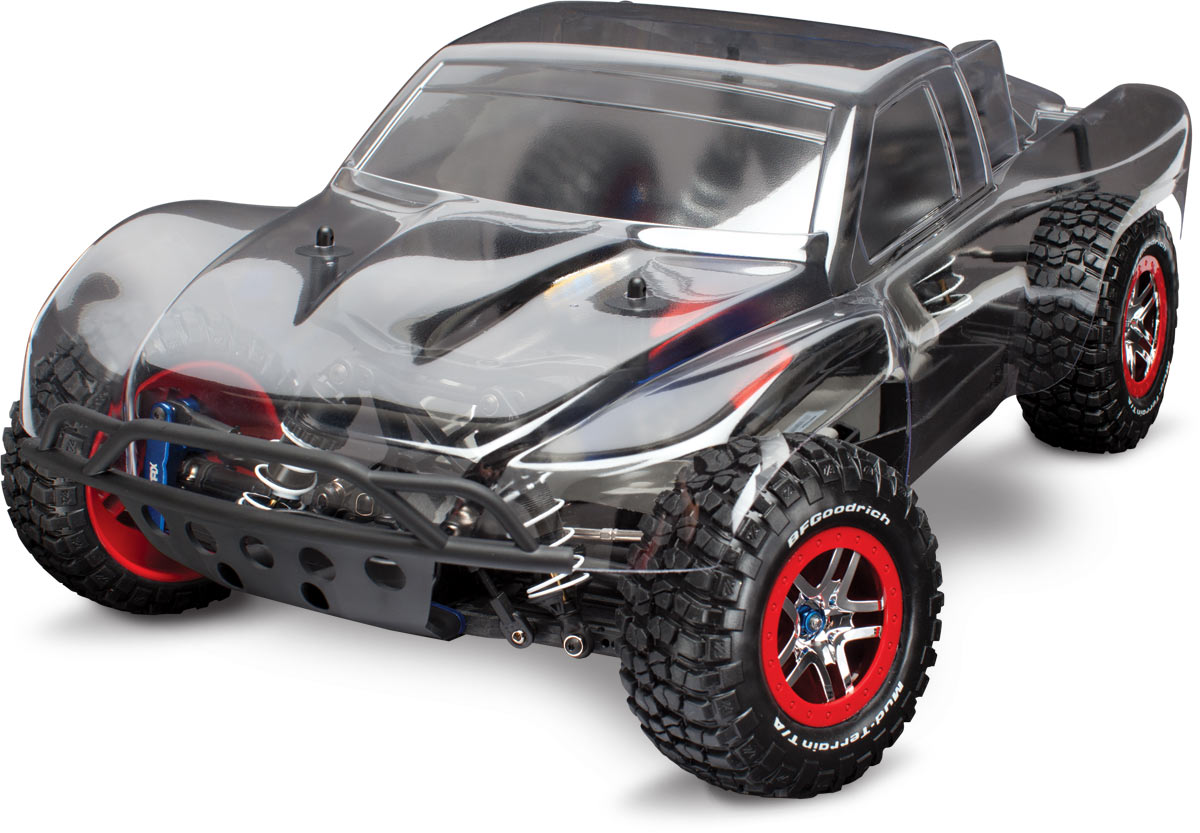

MODEL 6804R: Slash 4X4 Platinum,
fully assembled with Velineon Brushless Power System, GTR Shocks, Low-CG
chassis, and clear Slash 4X4 body.
Details
All
New Low-CG Chassis
Slash 4X4 Platinum's performance refinements
begin with an all-new low center of gravity (CG) chassis that's unlike anything
you've seen before. The battery (not included) and electronics are held as low
as possible to position weight low in the chassis. Extreme Brushless Power and
4WD require a chassis that won't flex under load for arrow-straight,
hard-charging acceleration. To offer the required rigidity, smoothly integrated
ribs form a triangulated structure that's optimized for the loads imparted by
the suspension and powertrain. Underneath, the chassis is ultra-smooth to reduce
drag and prevent snags whether you're blasting through the whoops on the track
or blazing trails in your backyard. The low-CG design dramatically increases
corner speed and stability no matter where you drive. On the track, the low
center of gravity allows the Slash 4X4 Ultimate to put Velineon power down with
superior traction, resulting in harder launches and faster lap times.
NEW
High-Capacity GTR Shocks
Performance-proven in extreme terrain
by the Revo and Summit models, Traxxas GTR shocks represent the peak of
suspension technology and now set the standard for short-course damping and
control. Shock length has been customized for Slash 4X4 Platinum to deliver
track-ready suspension travel, and the hard-anodized shock bodies have 13mm
bores to hold over 70% more oil than the standard Slash 4X4's Ultra Shocks. The
GTR shocks feature PTFE-coated bores for nearly frictionless piston travel, and
their slick titanium-nitride coated shafts resist scuffing, increase durability,
and eliminate "stiction." The shocks are sealed by unique X-rings to keep oil in
and dirt out for smooth, consistent damping and plush suspension action, lap
after lap. Between runs, spring reload and ride height changes are as simple as
turning the threaded spring collars--no clips or spacers required.
Proven Velineon Horsepower
The
Traxxas Velineon power
system gives the Platinum Edition competition-ready power to match its
track-bred handling. The Velineon system is optimized for smooth, high-speed
performance and refined control to help you hug the fast line and precisely
meter out power at the edge of traction. Low Voltage Detection (LVD) is built in
and activated right out of the box, making the Platinum Edition ready for
high-output LiPo batteries (there's no better choice than genuine Traxxas
Power Cell LiPos--click here to see the options). If you're putting in laps with
NiMH packs, LVD can be turned off. On practice days, reverse control lets you
back away from the pipes; on race day, lock out reverse to follow the rules
while everyone else follows you. The VXL-3s speed control makes setting the
throttle mode as easy as pressing the EZ-Set button.
Included
Center Differential Option
Slash 4X4 Platinum Edition rolls out
of the box with a Revo-spec slipper clutch, and also includes a fully-assembled,
sealed and silicone-filled Center Differential that can be used in place of the
slipper clutch to suit track conditions. The optional Center Differential
transfers power to the front and rear differentials independently for smooth
power delivery in rough conditions and maximum corner speed. The diff action can
be adjusted by using different fluid viscosities for specific driving
conditions. Slash 4X4's modular design makes it easy to install and remove the
diff for fast tuning.
High
Strength Machined Aluminum C-Hubs
Slash 4X4's unique C-Hub
design is already Traxxas Tough; this artfully machined aluminum version is
stronger still, and preserves the 4X4's carefully engineered steering and
suspension geometry for track-ready performance. The brilliant-blue anodized
finish adds high-tech style, and the laser-etched logos show your truck is
equipped with genuine Traxxas performance parts.
Aluminum
Steering Blocks
Precision-machined for total steering accuracy
and bulletproof strength, Traxxas Aluminum Steering Blocks are the perfect match
for the aluminum C-hubs and further refine Slash 4X4 Platinum Edition's
razor-sharp handling. Solid 6061 aluminum construction guarantees race-ready
strength and stiffness.
Machined
Aluminum Rear Hub Carriers
Traxxas aluminum stub axle carriers
add both strength and beauty to the Platinum Edition without compromising the
Slash 4X4's optimized suspension geometry. Two hingepin positions allow fine
tuning of axle height and roll center.
Front and Rear Sway Bars
Sway bars reduce chassis roll
and increase corner speed on high-traction surfaces—perfect for hard-packed
tracks and pavement running. Slash 4X4 Platinum Edition features installed
silver sway bars, and a stiffer set of black 'bars for extra-high-grip surfaces.
The bar thicknesses are precisely tuned, and are easily adjusted for maximum
cornering performance.
Officially
Licensed S1 Compound BFGoodrich Mud-Terrain T/A Tires
Slash
4X4's officially licensed BFGoodrich rubber returns for the Platinum Edition,
now molded in the latest S1 racing compound for even greater grip. Track-proven
with the National Championship-winning Response Pro tires for Revo, the soft S1
compound is engineered for competition and gives Slash 4X4 Platinum Edition
extra grip in all conditions.
High-Torque
Digital Servo
Prepping the Slash 4X4 Platinum Edition for action is
fast and easy--just plug the installed speed control and high-torque steering
servo into your receiver. The Traxxas 2075 servo features ball bearings for
precise action and a waterproof case to keep moisture, dirt, and dust out of the
geartrain. Quick 0.16 second transit time delivers responsive steeering, and 125
oz-in of torque keeps the Slash 4X4 Platinum planted in the groove no matter how
aggressively you drive.
Clear Slash 4X4 Body
Mild or wild, you choose the look for
Slash 4X4 Platinum Edition. The clear body is crisply molded in tough,
crystal-clear polycarbonate, and fully trimmed for a fast finish. Window masks
and overspray film make it easy to get professional results. To complete your
custom paiont job with realistic details, decals for sponsor logos, numbers,
grill and rear deck, and other features are included.
Features
In addition to everything that already
makes a Slash 4X4 great, the Platinum Edition adds these precision-engineered
racing features:
Slash 4X4 Platinum Features:
- Rigid, low center of gravity chassis
- Hard-anodized and PTFE-coated aluminum GTR shocks with Titanium Nitride
shafts
- Blue-anodized 6061-T6 aluminum C-Hubs
- Blue-anodized 6061-T6 aluminum steering blocks
- Blue-anodized 6061-T6 aluminum rear hub carriers
- Blue-anodized 6061-T6 aluminum axle nuts
- Adjustable front and rear swaybars
- Included optional extra-stiff swaybar set
- Sealed, silicone filled center differential (included separately;
installs trackside in just minutes replacing the Torque-Control slipper)
- Officially-licensed BFGoodrich Mud-Terrain T/A Tires
molded in S1 race compound
Slash 4X4 Standard Features also included with Slash 4X4 Platinum:
- Powered by the Velineon Brushless Power System
- Slash 4X4 Platinum reaches speeds in excess of 60mph!*
- Traxxas High-Current Connector allows high-capacity battery packs to
deliver maximum voltage to the Velineon Brushless Power System
- Exclusive waterproof electronics extend brushless power and performance
to water, mud, and snow
- Maxx Cable 12-gauge wire
- Velineon VXL-3s Electronic Speed Control
- LiPo, NiCad, and NiMH compatible with two-stage low-voltage
detection
- Auto-detects brushed, sensorless and sensored brushless motors
- Sport Mode – Forward / Brake / Reverse
- Race Mode – Forward / Brake
- Training Mode - 50% Forward / Brake / 50% Reverse (patent pending)
- Velineon 3500 Brushless Motor
- Consistent, high-power output, run after run
- Low-maintenance, unique Traxxas design
- Efficient, high-speed ball bearings
- Precision-balanced rotor
- Durable steel Jato-Style turnbuckles and captured rod ends
- Single-screw motor access makes gear-mesh adjustments fast and easy and
the motor can be removed in just seconds
- Modular simplicity, fiber-composite monocoque chassis
- Speed control and waterproof receiver box (receiver not included) are
securely fastened to chassis
- Integrated Personal Transponder Mount
- Versatile battery compartment easily adapts to multiple styles of
batteries; 6 or 7-cell NiMh battery packs and various configurations of
Lithium Polymer packs are no problem for Slash 4X4
- Digital high-torque Traxxas #2075 waterproof steering servo
- Waterproof, o-ring sealed receiver box
- Sealed, silicone-filled differentials
- Revo-Spec Torque-Control slipper clutch system
- Fully adjustable oil-filled Ultra Shocks with X-ring technology
- White powder coated shock springs feature a responsive spring rate
- Telescoping universal-joint driveshafts
- Rubber-sealed ball bearings
- Scale all-terrain front and rear tires offer superior on- and off-road
traction
- Pre-glued all-terrain tires with high-performance foam inserts
- Full line of genuine Traxxas accessories available
- Slash 4X4 is backed by unparalleled Traxxas support and parts
availability
MODEL 6804R: Slash 4X4 Platinum,
fully assembled, Ready-To-Race with Velineon Brushless Power System and clear
body.
Specification
SLASH 4X4 PLATINUM (#6804R) SPECS
| Length: |
|
22.36 Inches (568mm) |
| Front Track: |
|
11.65 Inches (296mm) |
| Rear Track: |
|
11.65 Inches (296mm) |
| Center Ground Clearance: |
|
2.83 Inches (72mm) |
| Weight: |
|
80.4oz (2.28kg) |
| Height (overall): |
|
7.60 Inches (193mm) |
| Wheelbase: |
|
12.75 Inches (324mm) |
| Shock Length: |
|
GTR Long (front), XXLong (rear) |
| Tires: |
|
Officially-Licensed BFGoodrich Mud-Terrain T/ATires
2.2", S1 Compound, Pre-Glued with Foam Inserts |
| Tire Diameter: |
|
4.31 Inches (109.5mm) (front and rear) |
| Wheels (front/rear): |
|
2.2" Split-Spoke, Chrome with Red Beadlock |
| Wheel Diameter: |
|
2.2 Inches (56mm) Outer
3.0 Inches (76mm) Inner |
| Speed Control Type: |
|
VXL-3s Electronic Speed Control |
| Motor (electric): |
|
Velineon 3500 Brushless |
| Overall Drive Ratio: |
|
11.82 (stock, out-of-box) |
| Differential Type: |
|
Hardened Steel Bevel, Sealed, Limited Slip |
| Gear Pitch: |
|
32 |
| Chassis Structure/Material: |
|
Molded Tub / Nylon Composite |
| Drive System: |
|
Shaft-Driven, Direct Drive 4WD |
| Steering: |
|
Dual-Bellcrank with Integrated Servo Saver |
| Radio System: |
|
Not Included |
| Body: |
|
Unpainted, Clear |
| Top Speed: |
|
60+mph* |
| Skill Level: |
|
1 |
| Included Accessories: |
|
Genuine Traxxas Competition Upgrades
Precision Tool Set |
| Required Items: |
|
NiCd, NiMh, or LiPo Battery, Charger, Radio System |
SLASH 4X4 PLATINUM SPEED & SKILL LEVEL CHART
| Speed: |
35+mph |
40+mph |
40+mph |
45+mph |
60+mph |
| Pinion/Spur: |
13/54* |
18/54** |
19/54 |
13/54* |
19/54 |
| Battery: |
7-Cell NiMH |
7-Cell NiMH |
2S LiPo |
3S LiPo |
3S LiPo |
| Nominal Voltage: |
8.4V |
8.4V |
7.4V |
11.1V |
11.1V |
| mAh: |
4000+ mAh |
4000+ mAh |
4000+ mAh |
5000+ mAh |
5000+ mAh |
| Skill Level: |
1 |
2 |
4 |
4 |
5 |
VXL-3s ESC SPECIFICATIONS
| Input Voltage: |
|
NiCad/NiMH 4-9 Cells (4.8 to 10.8 Volts DC);
LiPo 2-3 Cells (7.4
to 11.1 Volts DC) |
| Case Size: |
|
39mmW x 55mmD x 33mmH |
| Weight: |
|
90 grams |
| Motor Limit (Brushed/Brushless): |
|
No motor limit |
| On Resistance Forward: |
|
0.00075 Ohms |
| On Resistance Reverse: |
|
0.00075 Ohms |
| Peak Current - Forward: |
|
320A |
| Peak Current - Reverse: |
|
320A |
| Braking Current: |
|
320A |
| Continuous Current: |
|
200A |
| BEC Voltage: |
|
6.0 V |
| BEC Current: |
|
2.5A (with 6-cell NiMH) |
| Power Wire: |
|
12-Gauge Maxx Cable |
| Input Harness Wire: |
|
26 Gauge / 100mm |
| Transistor Type: |
|
MOSFET |
| Low Voltage Detection: |
|
2-Stage indicators, switchable (on or off) |
| Thermal Protection: |
|
2-Stage thermal shutdown |
| Profile selection: |
|
Sport Mode:
100% FWD, 100% BRAKES, 100% REV
Race Mode:
100% FWD, 100% BRAKES, NO REV
Training Mode:
50% FWD, 100%
BRAKES, 50% REV |
| Single-Button Setup: |
|
Yes, Traxxas EZ-Set |
| Battery Input Connector : |
|
Traxxas High-Current Connector |
| Motor Types (Autodetect): |
|
Brushed, brushless, sensored brushless |
| Ports: |
|
RX Input, motor sensor, auxiliary fan |
MODEL 6804R: Fully assembled,
Ready-To-Race with
Velineon Brushless
Power System and clear body.
Click here for more Information
Manual
Instructions
Parts List
Exploded Views
Box Panels
SetUp Sheet
